RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC18513NRF ANT 1.9GHZ YAGI N TYP BRKT MT |
1,618 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (1GHz ~ 2GHz) | 1.9GHz | 1.85GHz ~ 1.99GHz | Yagi | 1 | 2 | - | 13dBi | 200 W | Cable - 305mm | N Type Female | - | - | - | Bracket Mount | 3.750" (95.25mm) | PCS |
|

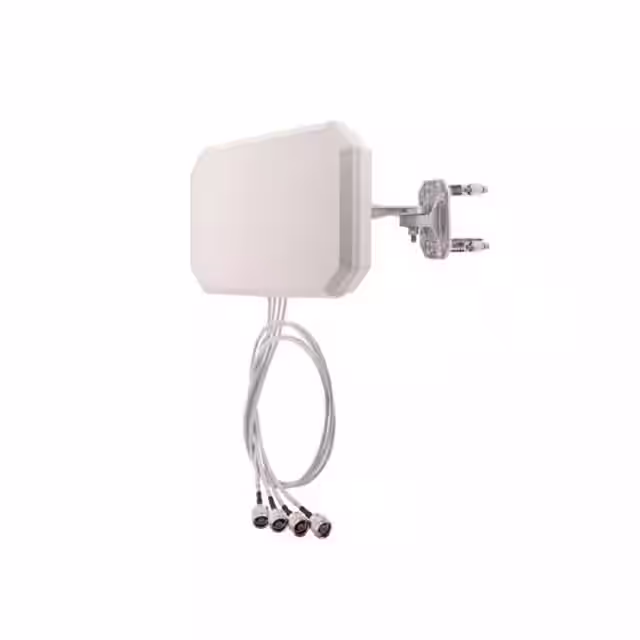

PDQ244910-91NMRF ANT 2.4GHZ/5.4GHZ FLAT PNL |
4,736 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.95GHz | Flat Panel | 2 | 2 | - | 10.8dB | 10 W | - | N Type Male | IP67 | - | - | Bracket Mount | 1.614" (41.00mm) | Wi-Fi |
|
|
S9026XRRN902-928MHZ 6DBIC RH RA N-FEMALE |
3,860 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PA24-19RF ANT 2.4GHZ FLAT PNL N FEM |
3,294 | - |
|
Datasheet | PA24 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483GHz | Flat Panel | 1 | 1.5 | - | 19dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 0.787" (20.00mm) | WiMax™, WLAN |
|
|
S9028PCL96RTN902-928MHZ 9DBI LH RP-TNC-M-M |
2,173 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.3 | - | 9dBi | 10 W | - | TNC Male | IP54 | - | - | Bracket Mount | 1.320" (33.53mm) | General Purpose |
|
|
YF880012-61NFRF ANT 920MHZ YAGI N FEM BRKT MT |
3,662 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 920MHz | 880MHz ~ 960MHz | Yagi, 7-Element | 1 | 1.5 | - | 12.2dBi | 200 W | - | N Type Female | IP67 | - | - | Bracket Mount | 24.000" (609.60mm) | - |
|
|
SA24-45-20-WBRF ANT 2.4GHZ PANEL N FEM BRKT |
2,748 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.3GHz ~ 2.7GHz | Panel | 1 | 1.5 | - | 20dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 3.504" (89.00mm) | Wi-Fi, WiMax™ |
|
|
J33015V01-90NRF ANT 3.5GHZ SECTOR N FEM BRKT |
3,892 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (3GHz ~ 4GHz) | 3.5GHz | 3.3GHz ~ 3.5GHz | Sector | 1 | 1.8 | - | 16.5dBi | - | - | N Type Female | - | - | - | Bracket Mount | 30.197" (767.00mm) | WiMax™ |
|
|
VFQ69383B22NN-200PINFRA M2M,VEHICULAR MIMO |
4,980 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FG1483RF ANT 150MHZ WHP STR N FEM 107" |
1,549 | - |
|
Datasheet | - | Bulk | Active | - | VHF (f < 300MHz) | 150MHz | 148MHz ~ 152MHz | Whip, Straight | 1 | 2 | - | 3dBd | 150 W | - | N Type Female | - | - | - | Bracket Mount | 107.000" (271.78cm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
