RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

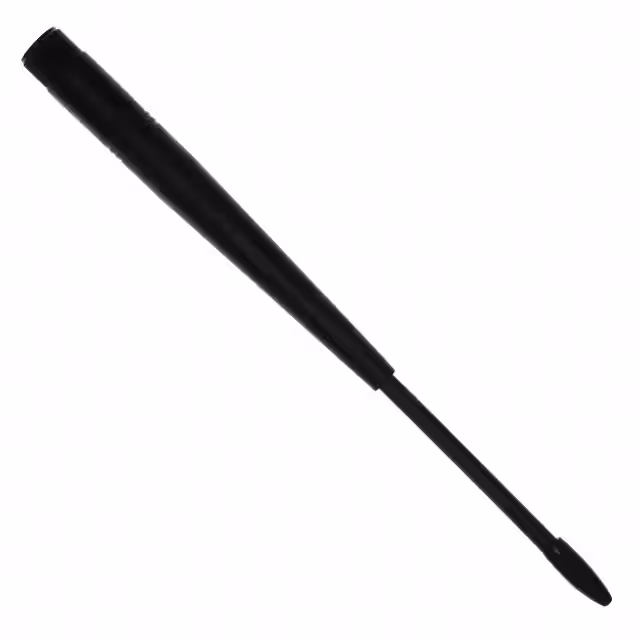

0600-00027RF ANT 915MHZ WHIP STR RP-SMA ML |
2,240 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Whip, Straight | 1 | 2 | - | 2dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 8.248" (209.50mm) | - |
|

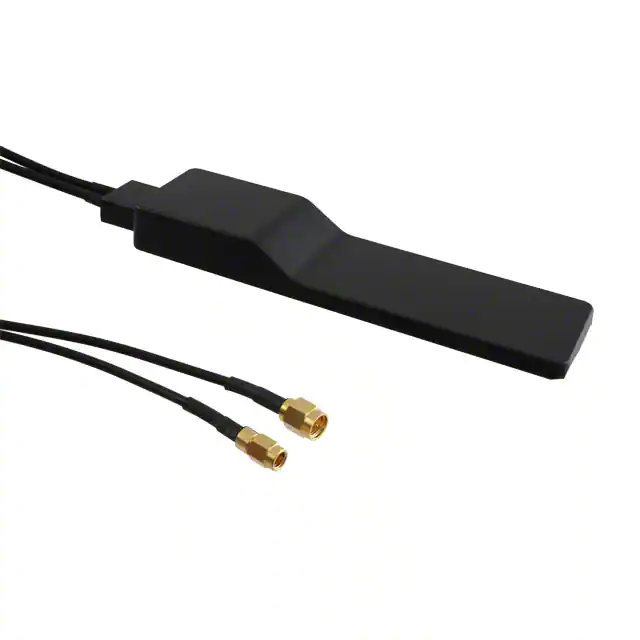

63708RF ANT 850/900MHZ WEDGE CAB ADH |
1,056 | - |
|
Datasheet | - | Bulk | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 2.17GHz | Wedge | 6 | 2 | - | 3.5dBi, 3dBi, 3dBic, 3.5dBi, 0dBi, 2.5dBi | - | Cable - 1.5m, LNA | SMA Male (1), SMC Female (1) | IP50 | - | - | Adhesive, Hook and Loop | 0.441" (11.20mm) | AMPS, DCS, GPS, GSM, PCS, UMTS |
|
CAF94504RF ANT 2.4GHZ/5.3GHZ PCB TRACE |
3,555 | - |
|
Datasheet | NanoBlade | Bulk | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz, 5.6GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 3 | 2 | - | 2dBi, 3.9dBi, 4dBi | - | Cable - 100mm | MMCX | - | - | - | Surface Mount | 0.650" (16.50mm) | Bluetooth, Wi-Fi, WiMax™ |
|

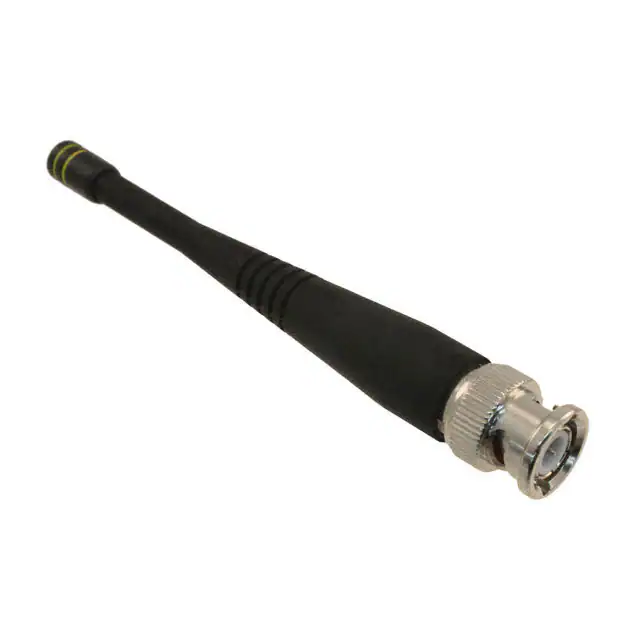

EXC821BNRF ANT 861MHZ WHIP STR BNC MALE |
1,609 | - |
|
Datasheet | EXC | Bulk | Obsolete | - | UHF (300MHz ~ 1GHz) | 861MHz | 821MHz ~ 902MHz | Whip, Straight | 1 | 1.5 | - | - | - | - | BNC Male | - | - | - | Connector Mount | 4.600" (116.84mm) | - |
|

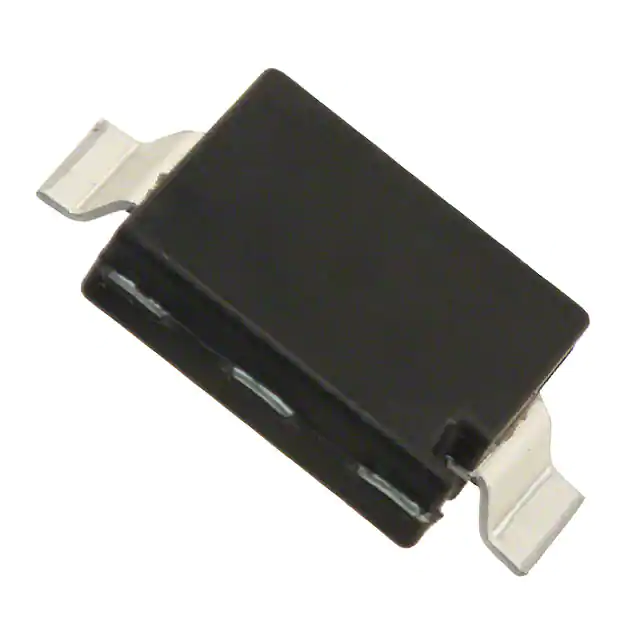

MAF95029RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
4,378 | - |
|
Datasheet | BlackChip | Tape & Reel (TR) | Obsolete | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Chip | 2 | 2 | - | 2dBi, 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.098" (2.50mm) | Bluetooth, WiMax™, WLAN |
|

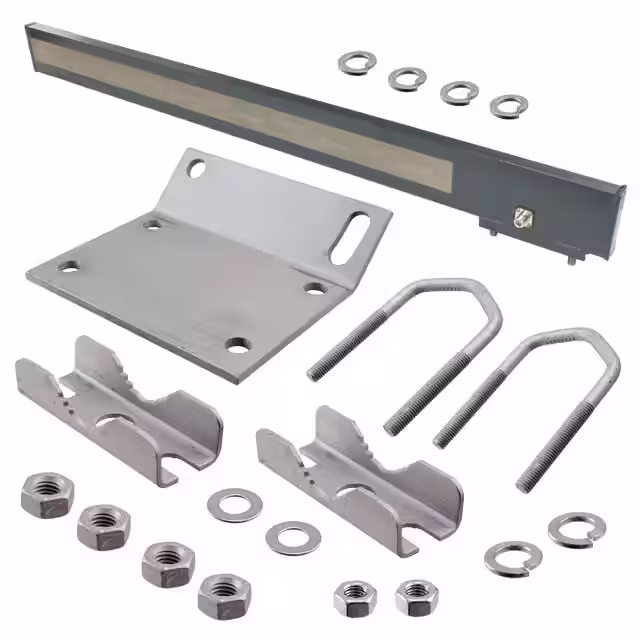

ODH24-13RF ANT 2.4GHZ FLAT BAR N FEM |
4,065 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Flat Bar | 1 | 1.5 | -14dB | 13dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 49.000" (124.46cm) | WiMax™, WLAN |
|
A24003-OCRF ANT 2.4GHZ WHIP STR NMO 5.4" |
2,653 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | - | 3dBi | 200 W | - | NMO | - | - | - | Base Mount | 5.394" (137.00mm) | - |
|
|
CAF28871ANT MMCXP DUCK COAXIAL |
4,289 | - |
|
Datasheet | WCP | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAF29177ANT WXE DIPOLE TNCM 2.4GHZ 5.5" |
4,484 | - |
|
Datasheet | WXE | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CAF94101(IO2450-SM12)RF ANT 2.4GHZ MOD SMA CLIP 12" |
4,554 | - |
|
Datasheet | Sphere™ | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Module | 1 | 1.5 | - | 3dBi | 50 W | Cable - 305mm | SMA Male | - | - | - | Clip | 0.669" (17.00mm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
