RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2406DSP12NFRF ANT 2.4GHZ PANEL CAB CHAS MT |
4,628 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.7 | - | 6.5dBi | - | Cable - 305mm | N Type Female | - | - | - | Chassis Mount | 0.750" (19.05mm) | - |
|
|
S2407HVP12NFRF ANT 2.4GHZ PANEL CAB CHAS 12" |
2,723 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 7dBi | - | Cable - 305mm | N Type Female | - | - | - | Chassis Mount | - | - |
|
|
S2407SLP12NFRF ANT 2.4GHZ PANEL CAB CHAS 12" |
2,732 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 7dBi | - | Cable - 305mm | N Type Female | - | - | - | Chassis Mount | - | - |
|
|
S2409P36RTNRF ANT 2.4GHZ PANEL CAB CHAS 36" |
4,490 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 914mm | RP-TNC | - | - | - | Chassis Mount | - | - |
|
|
S24493BFNFRF ANT 2.4/5.4GHZ WHIP STR N FEM |
1,254 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Whip, Straight | 2 | 2 | - | 5dBi | - | - | N Type Female | - | - | - | Connector Mount | - | - |
|
|
S24493BPX36RSMRF ANT 2.4GHZ/5GHZ WHIP STR CAB |
3,803 | - |
|
Datasheet | - | Bulk | Obsolete | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Whip, Straight | 2 | 2 | - | 6dBi | - | Cable - 914mm | RP-SMA Male | - | - | - | Bracket Mount | 24.750" (628.65mm) | - |
|

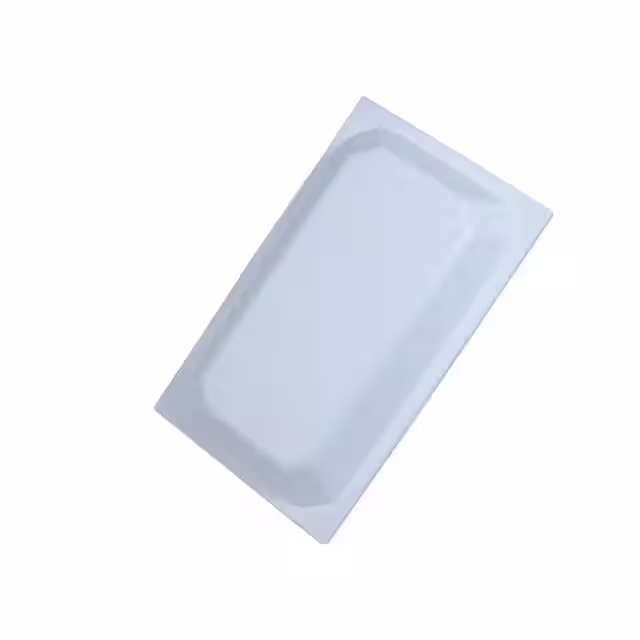

S24493DS36RTNRF ANT 2.4/5.5GHZ PANEL CAB 36" |
2,254 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Panel | 2 | 2 | - | 3dBi, 4dBi | 2 W | Cable - 914mm | RP-TNC Male | - | - | - | Bracket Mount | 0.890" (22.60mm) | Wi-Fi |
|
|
S24493TS36RNFRF ANT 2.4/5.4GHZ PANEL CAB 36" |
2,862 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Panel | 2 | 2 | - | 3dBi, 4dBi | 2 W | Cable - 914mm | RP-TNC Female | - | - | - | Bracket Mount | 0.866" (22.00mm) | Wi-Fi, WLAN |
|
|
S24497P18SMMRF ANT 2.4/5.4GHZ PANEL CAB 18" |
2,546 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Panel | 2 | 2 | - | 7dBi | 10 W | Cable - 457mm | SMA Male | - | - | - | Bracket Mount | 1.500" (38.10mm) | Wi-Fi, WiMax™ |
|
|
S49016120PNFRF ANT 5GHZ SECTOR N FEM BRKT MT |
3,146 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | SHF (f > 4GHz) | 5GHz | 4.9GHz ~ 5.85GHz | Sector | 1 | 1.8 | - | 16dBi | 10 W | - | N Type Female | - | - | - | Bracket Mount | 24.606" (625.00mm) | Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
