RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SA24-120-9RF ANT 2.4GHZ PANEL N FEM BRKT |
1,751 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.485GHz | Panel | 1 | 1.5 | -14dB | 9dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 2.500" (63.50mm) | Wi-Fi, WiMax™ |
|

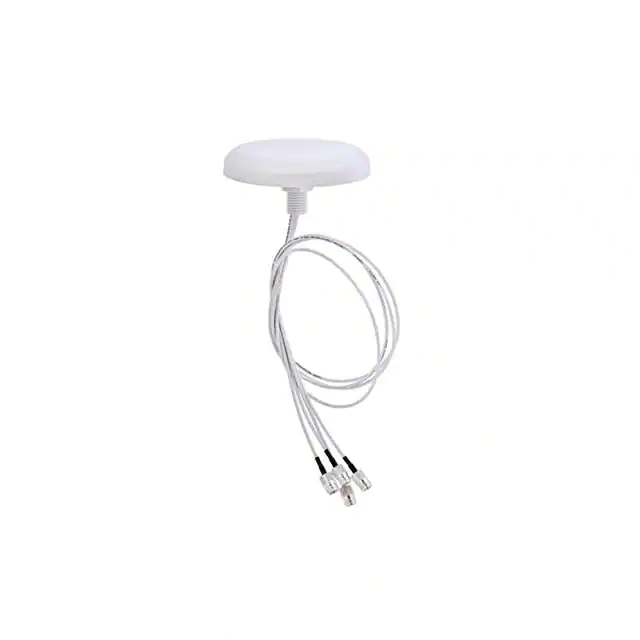

CMQ23496-75RSMMRF ANT 2.5/5.4GHZ DOME 75MM |
2,659 | - |
|
Datasheet | - | Bulk | Obsolete | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.5GHz, 5.4GHz | 2.3GHz ~ 2.7GHz, 4.9GHz ~ 5.95GHz | Dome | 2 | 1.8 | - | 6.3dBi | 10 W | - | RP-SMA Male | - | - | - | Panel Mount | 1.260" (32.00mm) | WLAN |
|
|
BB4505CRF ANT 460MHZ WHIP STR NMO BASE |
4,992 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2 | - | 5dBi | - | - | NMO | - | - | - | Base Mount | 37.000" (939.80mm) | - |
|
|
BB8065CRF ANT 836MHZ WHIP STR BASE MT |
2,707 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 836MHz | 806MHz ~ 866MHz | Whip, Straight | 1 | - | - | 5dBi | - | - | - | - | - | - | Base Mount | - | - |
|
|
BB8965CRF ANT 933MHZ WHIP STR NMO BASE |
1,560 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 5dB | - | - | NMO | - | - | - | Base Mount | 13.375" (339.72mm) | - |
|
|
CWB1533RF ANT 161MHZ WHIP STR NMO BASE |
2,679 | - |
|
Datasheet | - | Bulk | Obsolete | - | VHF (f < 300MHz) | 161MHz | 153MHz ~ 169MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | 49.500" (125.73cm) | - |
|
|
WPD136M6B-001RF ANT 155/450MHZ WHIP STR NMO |
3,718 | - |
|
Datasheet | - | Bulk | Obsolete | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 155MHz, 450MHz, 815MHz | 136MHz ~ 174MHz, 380MHz ~ 520MHz, 760MHz ~ 870MHz | Whip, Straight | 3 | 2.5 | - | 0.2dBi, 4.8dBi, 8.1dBi | 100 W | - | NMO | IP66 | - | - | Base Mount | 20.000" (508.00mm) | TETRA |
|
|
B8965CNRRF ANT 933MHZ WHIP STR NMO BASE |
3,609 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 933MHz | 896MHz ~ 970MHz | Whip, Straight | 1 | - | - | 5dBi | - | - | NMO | IP67 | - | - | Base Mount | - | - |
|
|
CFSA69383P1-B30NFOMNI,DBAND,30CM,NF OD180MM,BULK, |
4,389 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 752MHz, 859MHz, 920MHz, 1.45GHz, 1.785GHz, 1.92GHz, 2.045GHz, 2.4GHz, 2.6GHz, 3.55GHz, 3.9GHz | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 890MHz, 1.35GHz ~ 1.55GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.18GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.8GHz ~ 4GHz | Flat Panel | 11 | 1.5, 1.8, 2 | - | 3.2dBi, 2.6dBi, 3.4dBi, 4.2dBi, 4dBi, 4.4dBi, 4.2dBi, 4.3dBi, 5.4dBi, 2.4dBi, 3dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Ceiling Mount | 0.300" (7.62mm) | AWS, GSM, DCS, LTE, UMTS, WiMax™ |
|
|
CW1623SRF ANT 168MHZ WHIP STR NMO BASE |
3,442 | - |
|
Datasheet | - | Bulk | Obsolete | - | VHF (f < 300MHz) | 168MHz | 162MHz ~ 174MHz | Whip, Straight | 1 | 2 | - | 3dB | 200 W | - | NMO | - | - | - | Base Mount | 43.500" (110.49cm) | - |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
