RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-5GW-IPW1-NPRF ANT 5G/4G/LTE WHIP N PLUG |
170 | - |
|
Datasheet | IPW | Bag | Active | Cellular | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.496GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 3.55GHz ~ 3.7GHz, 3.7GHz ~ 4.2GHz, 4.4GHz ~ 5GHz | Whip, Straight | 10 | 1.9, 1.9, 3.1, 4.1, 4.8, 3.6, 1.8, 1.1, 1.5, 1.9 | -10.2dB, -10.2dB, -5.8dB, -4.3dB, -3.7dB, -5dB, -10.9dB, -26.4dB, -14dB, -10.2dB | 1.8dBi, 2.8dBi, 2.3dBi, 3.8dBi, 3.9dBi, 3dBi, 5.4dBi, 5.4dBi, 6.2dBi, 7.6dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 7.008" (178.00mm) | 5G, LTE, LTE-M (Cat-M1), NB-IoT |
|
ANT-DB1-LP-RM-01-NRF ANT 892MHZ/1.94GHZ LOG PERIOD |
4,258 | - |
|
Datasheet | - | Bulk | Active | - | Wide Band | 892MHz, 1.94GHz, 2.45GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.48GHz | Log Periodic | 3 | 1.5 | - | 8.5dBi, 9dBi, 9dBi | 100 W | Cable - 165mm | N Type Female | - | - | - | Bracket Mount | 15.551" (395.00mm) | - |
|

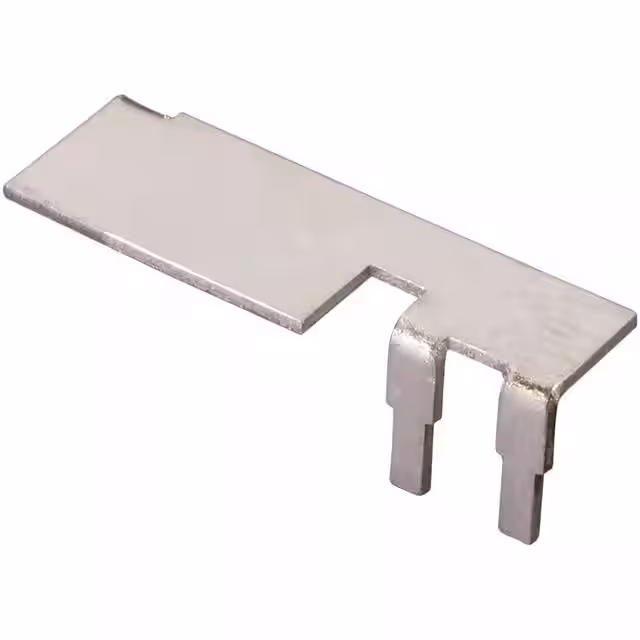

ANT-2.4-MSA-TH1ANTENNA 2.4GHZ STAMPED TH |
1,521 | - |
|
Datasheet | - | Tray | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Stamped Metal | 1 | 1.3 | - | 3.7dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.213" (5.40mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

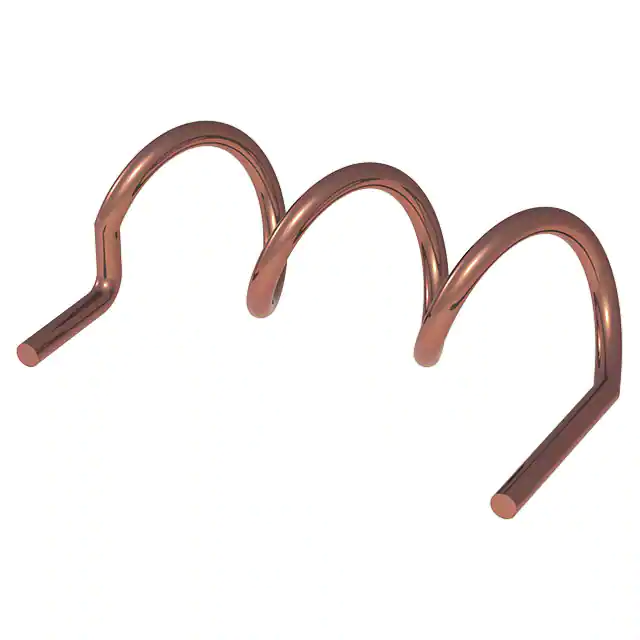

ANT-868-HESM868MHZ HELICAL ANT SURFACE MNT |
3,989 | - |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 2.2 | -8.5dB | 5.6dBi | 15 W | - | Solder | - | - | - | Surface Mount | 0.350" (8.90mm) | ISM, LPWA |
|

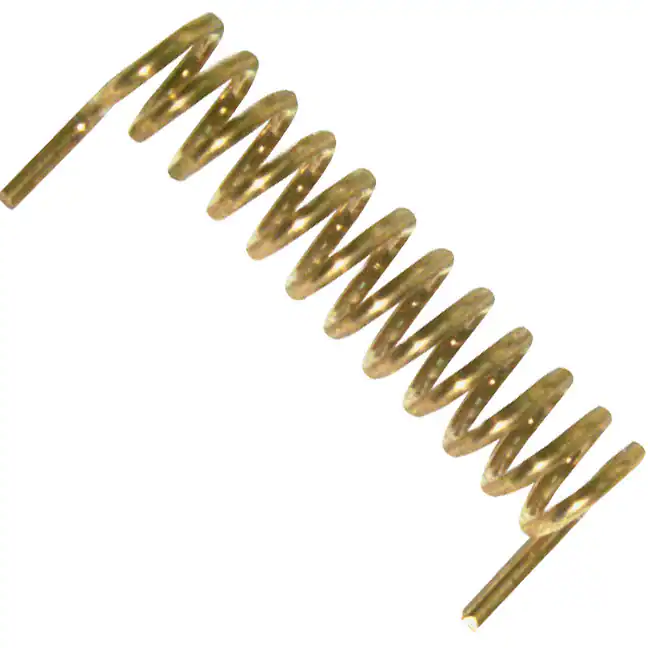

ANT-315-HESMRF ANT 315MHZ HELICAL SOLDER SMD |
6,117 | - |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 305MHz ~ 325MHz | Helical | 1 | 2 | - | - | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

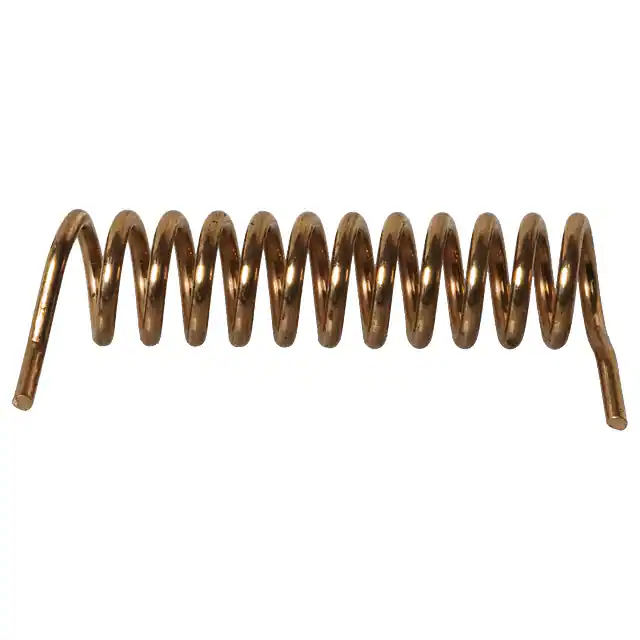

ANT-418-HETHRF ANT 418MHZ HELICAL SLD TH |
3,290 | - |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 393MHz ~ 443MHz | Helical | 1 | 2 | - | 1.7dBi | - | - | Solder | - | - | - | Through Hole | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

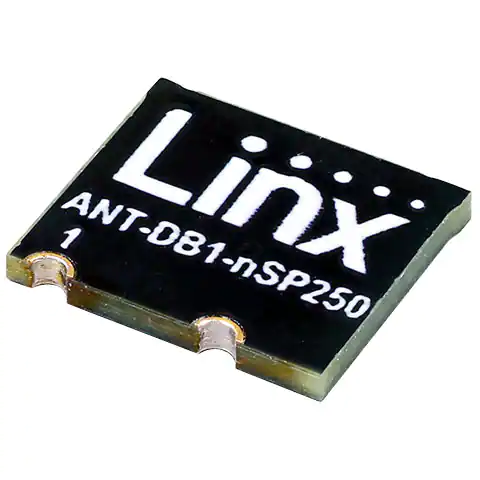

ANT-DB1-NSP250-TRF ANT 2.4GHZ 5.8GHZ CHIP SOLDER |
2,772 | - |
|
Datasheet | nanoSplatch™ | Tape & Reel (TR) | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.88GHz | Chip | 2 | 2, 2.4 | - | 2.7dBi, 3.7dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™, 802.11, U-NII |
|

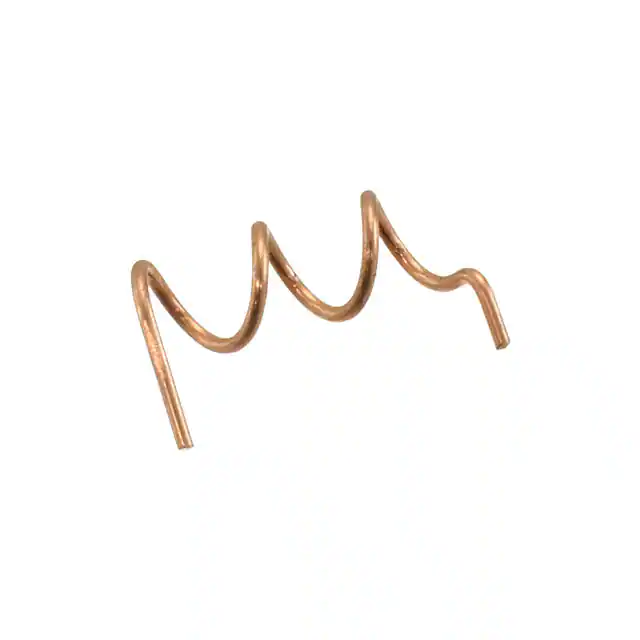

ANT-916-HESMRF ANT 916MHZ HELICAL SM |
6,802 | - |
|
Datasheet | HE | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 865MHz ~ 965MHz | Helical | 1 | 2 | - | 2.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.350" (8.90mm) | ISM, LoRa, Sensor Networks, SigFox |
|

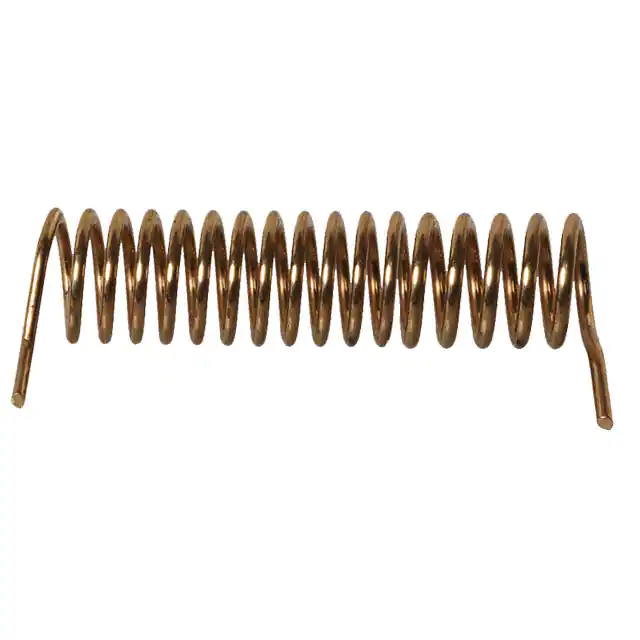

ANT-315-HETHRF ANT 315MHZ HELICAL SLD TH |
7,778 | - |
|
Datasheet | HE | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 315MHz | 305MHz ~ 325MHz | Helical | 1 | 2 | - | - | - | - | Solder | - | - | - | Through Hole | 0.350" (8.89mm) | Alarms, ISM, Remote Control, Security Systems |
|

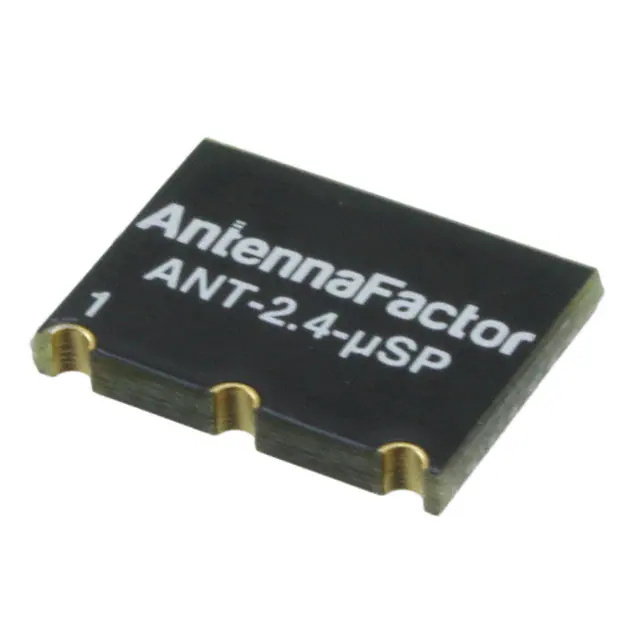

ANT-2.4-USP-TRF ANT 2.4GHZ SOLDER SMD |
5,895 | - |
|
Datasheet | microSplatch™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.37GHz ~ 2.54GHz | Chip | 1 | 2 | - | 3.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
