RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

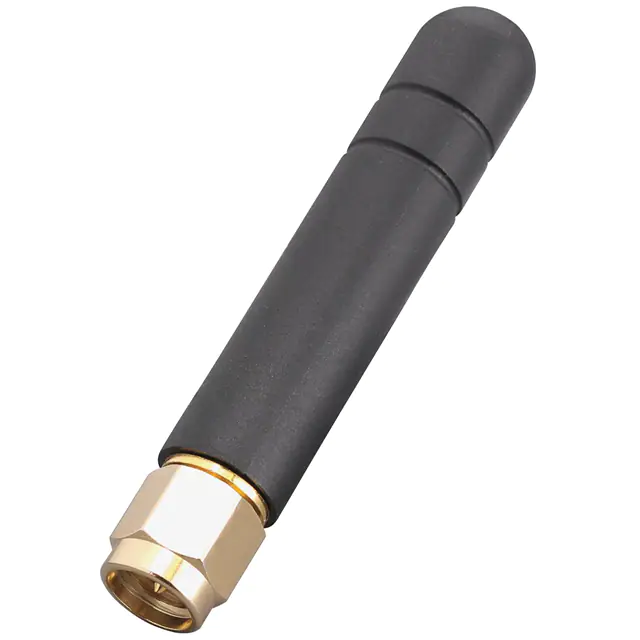

ANT-450-RHS-SMARF ANT 450-470MHZ LTE ST SMA |
895 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Straight | 1 | 2.1 | - | -8.2dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.039" (51.80mm) | LTE |
|
ANT-868-CW-HD-SMARF ANT 868MHZ WHIP STR SMA MALE |
3,866 | - |
|
Datasheet | HD | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 820MHz ~ 900MHz | Whip, Straight | 1 | 2 | - | -0.3dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.953" (75.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ANT-450-HSW-TNCRF ANT 450MHZ WHIP TNC PLUG |
521 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | TNC Male | - | - | - | Connector Mount | 7.940" (201.68mm) | LTE |
|

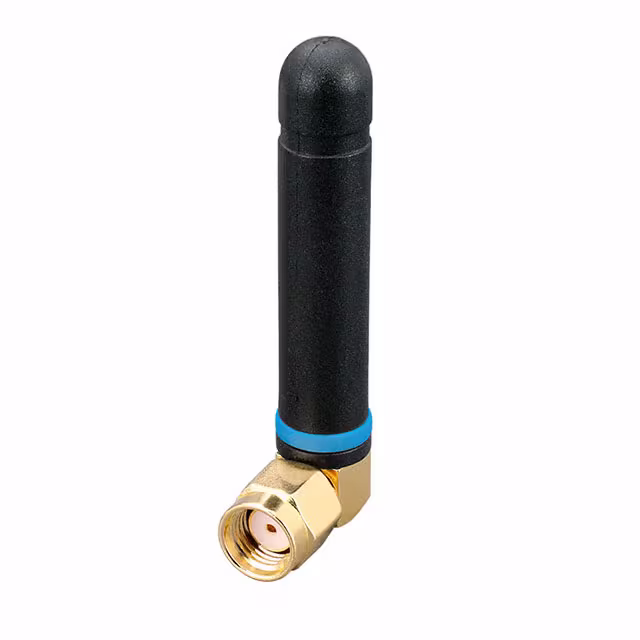

ANT-418-CW-RAHRF ANT 418MHZ WHIP RA RP-SMA MAL |
826 | - |
|
Datasheet | RAH | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 418MHz | 410MHz ~ 426MHz | Whip, Right Angle | 1 | 1.9 | - | -6.1dBi | - | - | RP-SMA Male | - | - | - | Connector Mount | 1.850" (47.00mm) | Alarms, ISM, Remote Control, Security Systems |
|
|
ANT-450-HSW-NPRF ANT 450MHZ LTE WHIP N PLUG |
650 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz) | 418.5MHz, 458.75MHz | 410MHz ~ 427MHz, 450MHz ~ 467.5MHz | Whip, Right Angle | 2 | 1.2, 1.6 | - | 3.1dBi, 2.3dBi | 25 W | - | N Type Male | - | - | - | Connector Mount | 8.090" (205.49mm) | LTE |
|

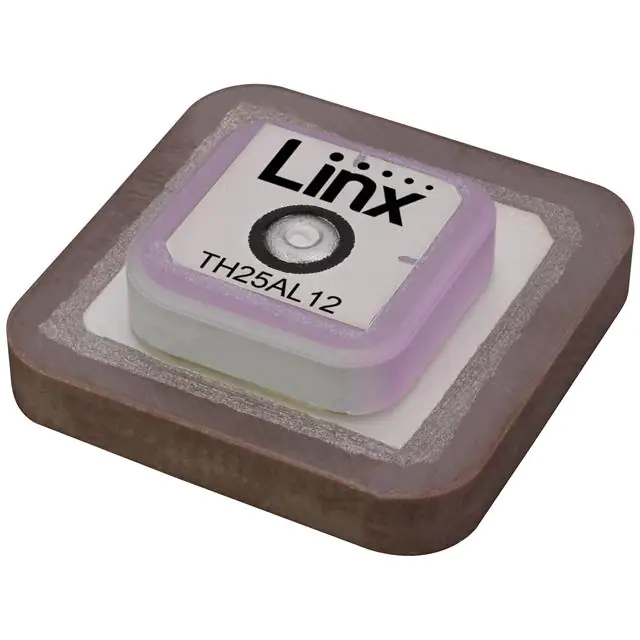

ANT-GNCP-TH25AL12RF ANT GNSS PATCH L1 L2 25MM PIN |
781 | - |
|
Datasheet | GNCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.228GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.215GHz ~ 1.24GHz, 1.243GHz ~ 1.25GHz, 1.559GHz ~ 1.592GHz | Ceramic Patch | 5 | 12.1, 4.5, 5, 5, 2.1 | -1.4dB, -4dB, -3.5dB, -3.5dB, -9.1dB | -1.9dBi, -0.9dBi, 0.9dBi, 3.1dBi, 4dBi | 8 W | - | Pin | - | - | - | Solder | 0.315" (8.00mm) | Beidou, COMPASS, Galileo, GLONASS, GPS |
|

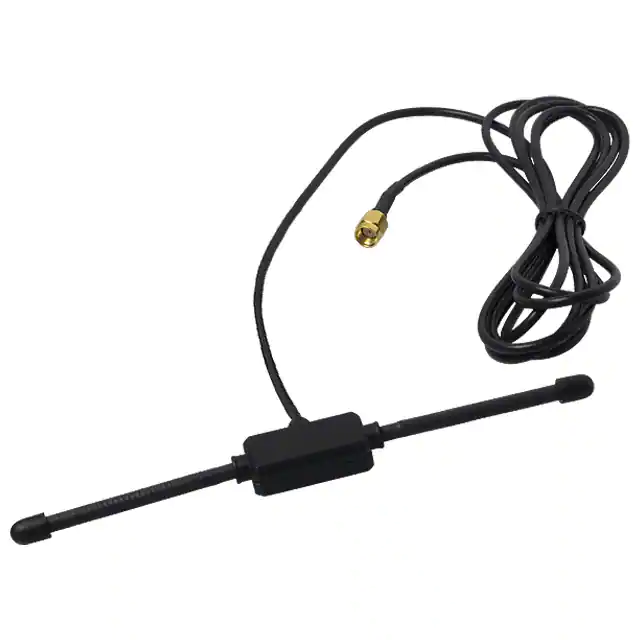

ANT-433-MHW-RPS-SRF ANT 433MHZ WHP CTR ADH 79" |
262 | - |
|
Datasheet | MHW | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | 413MHz ~ 453MHz | Whip, Center-Fed Double | 1 | 1.9 | - | 1.2dBi | - | Cable - 2m | RP-SMA Male | - | - | - | Adhesive | 5.709" (145.00mm) | Alarms, ISM, Remote Control, Security Systems |
|

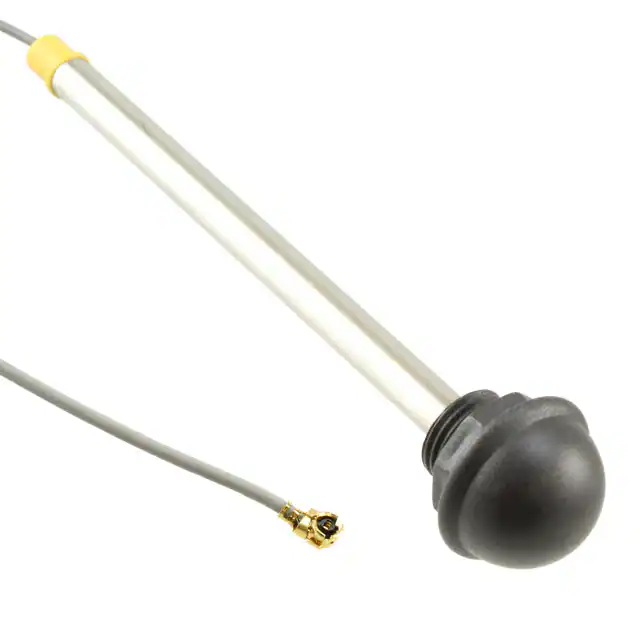

ANT-868-WRT-UFLRF ANT 868MHZ DOME U.FL PANEL MT |
826 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz | 855MHz ~ 880MHz | Dome | 1 | 1.9 | - | 1.5dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

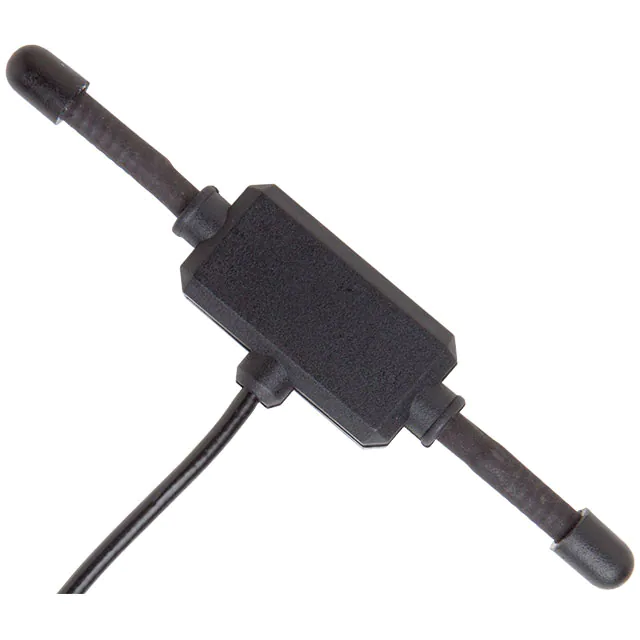

ANT-868-MHW-SMA-LRF ANT 868MHZ WHIP CTR CAB 180" |
102 | - |
|
Datasheet | MHW | Bag | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 1.3 | - | 4dBi | 10 W | Cable - 4.6m | SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | LoRa, LPWAN, Sigfox |
|
|
ANT-916-WRT-UFLRF ANT 916MHZ DOME U.FL PANEL MT |
720 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
