RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2B4MH1F2F0100LTE/4G FULL BAND FPC ANTENNA FPC |
1,591 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 928MHz, 1.94GHz, 2.35GHz, 2.59GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | PCB Trace | 4 | - | - | 1.2dBi, 2.6dBi, 2.8dBi, 3dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | 2G, 3G, CDMA, DCS, EDGE, GPRS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA |
|
H2UB4K1H1B0100WIFI/BT 2400-2500MHZ TELA CERAMI |
10,850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2.5 | - | -0.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.012" (0.30mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
H2U36D1K1B0300WIFI/BT 2400-2500 MHZ MONOPOLE C |
2,950 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 1.9dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
|
H2U262GKBA0100WIFI/BT 2400-2500MHZ MONOPOLE CH |
2,052 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2.2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

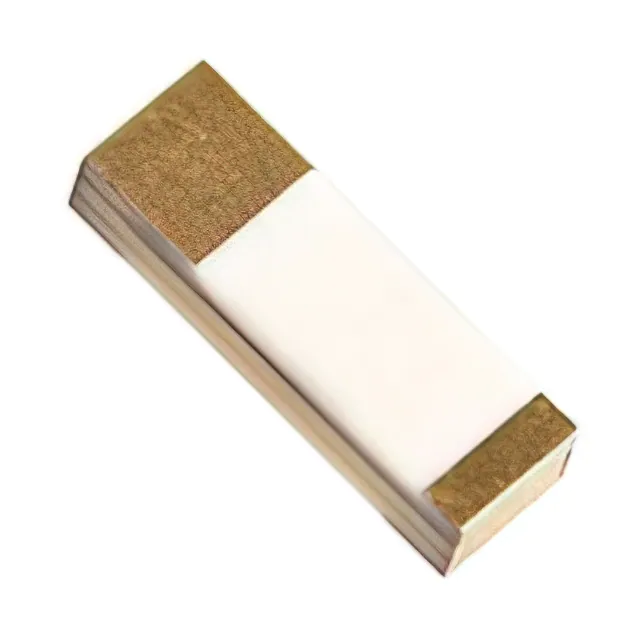

H2U1631S1A0200GNSS 1560-1606 MHZ WIDE BAND TEL |
5,478 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Chip | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.154" (3.90mm) | GPS |
|
|
H2U64U1H2C0200915MHZ ISM 902-928MHZ TELA CERAM |
40,206 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM, WiFi | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, Wi-Fi |
|
|
H2U64U1H2B0200868MHZ ISM 863-870MHZ TELA CERAM |
9,440 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
|
H2UB6D1K1B0100PILLAR CHIP ANTENNA WIFI/BT 2400 |
16,895 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | -0.4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | ISM, Wi-Fi, Zigbee™ |
|
|
H2UJ6V1A2A0100GNSS 1560-1606 MHZ WIDE BAND TEL |
6,004 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.583GHz | 1.56GHz ~ 1.606GHz | Chip | 1 | 2 | - | 2.7dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | Galileo, GLONASS, GNSS, GPS |
|
H2B1BC2A1B225LWIFI/BT 2400-2500 MHZ PCB ANTENN |
729 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.442GHz | - | PCB Trace | 1 | 2 | - | 3.2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11b/g/n, Wi-Fi |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
