RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

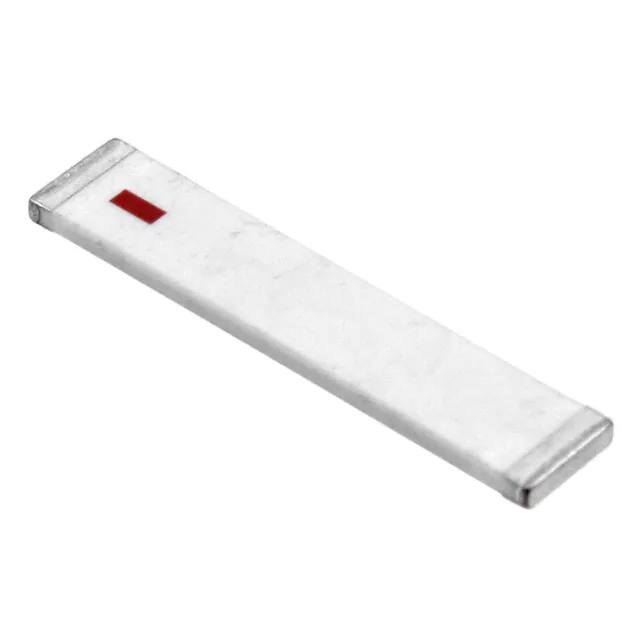

7488910043RF ANT 433MHZ CHIP SOLDER SMD |
1,306 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Chip | 1 | 2 | - | -4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
7488940245RF ANT 2.4GHZ CHIP SOLDER SMD |
1,395 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | 2 | - | 2dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
7488912455RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
1,000 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Bluetooth, Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz | Chip | 2 | 2.2 | - | 1dBi, -1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | Bluetooth, GSM, WLAN |
|
7488918022WE-MCA SMT-MULTILAYER CHIP ANTEN |
900 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Cellular, Navigation | Wide Band | 830MHz, 2.2GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 4 | - | 2.1dBi, 5.5dBi | - | - | - | - | - | - | Surface Mount | 0.236" (6.00mm) | Bluetooth, GNSS, GPS, GSM , Wi-Fi, WLAN, Zigbee™ |
|
7488920157WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,668 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.55GHz ~ 1.6GHz | Chip | 1 | 2 | - | 3.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
|
7488922455WE-MCA SMT-MULTILAYER CHIP ANTEN |
1,995 | - |
|
Datasheet | WE-MCA | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5GHz ~ 6GHz | Chip | 2 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.146" (3.70mm) | Bluetooth, GPS, GSM, LTE, Wi-Fi, WLAN, Zigbee™ |
|
AMB1926ANTENNA 2.4GHZ CORNER 140MM SMA |
1,188 | - |
|
Datasheet | WIRL-ACCE | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2.5dBi | - | - | SMA | - | - | - | Connector Mount | 5.512" (140.00mm) | - |
|

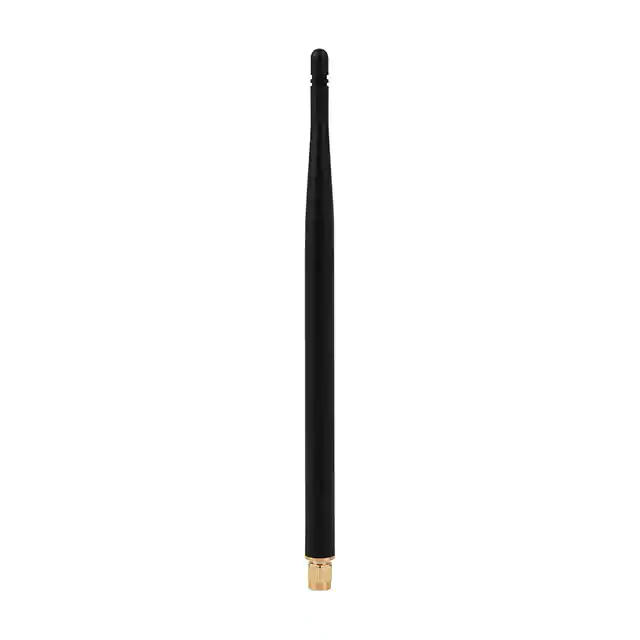

2600130083WIRL-ACCE HYDRA-I ANTENNA 868/91 |
1,066 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 868MHz ~ 928MHz | Whip, Straight | 1 | 2.5 | - | 0.9dBi | - | - | SMA Male | IP65 | - | - | Connector Mount | 7.047" (179.00mm) | ISM |
|

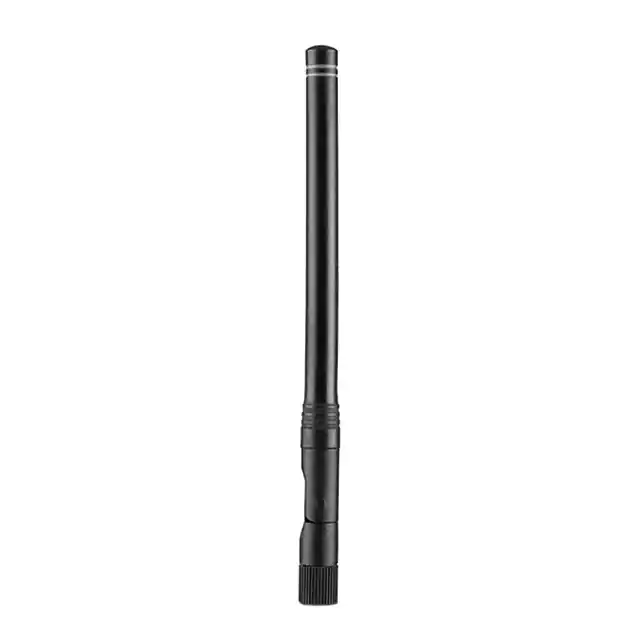

2600130081ANTENNA 868MHZ CORNER 142MM SMA |
2,984 | - |
|
Datasheet | WIRL-ACCE | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 853MHz ~ 883MHz | Whip, Tilt | 1 | 2 | - | 2.3dB | - | - | SMA Male | - | - | - | Connector Mount | 5.591" (142.00mm) | - |
|

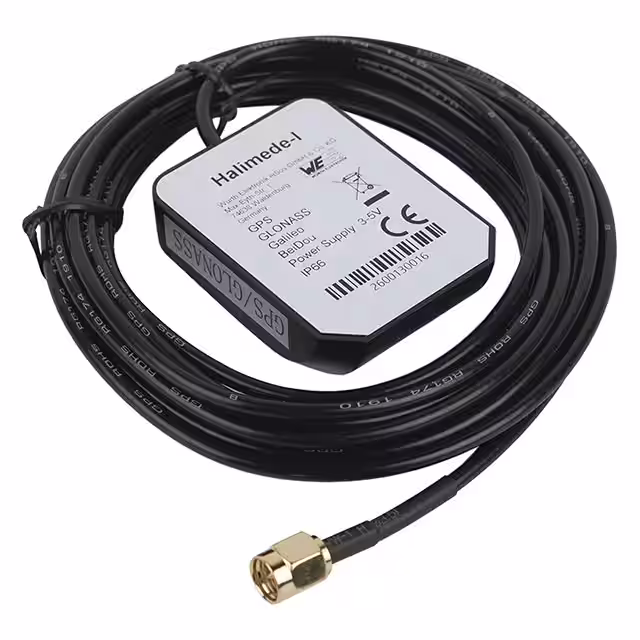

2600130016HALIMEDE-I GNSS ANTENNA 1.6 GHZ |
2,317 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.61GHz | 1.57GHz ~ 1.58GHz, 1.53GHz ~ 1.69GHz | Module | 2 | 1.5, 2 | - | 5dBic | - | Cable - 3m, LNA | SMA Male | IP66 | - | - | Magnetic | 0.661" (16.80mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
