RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1991RF ANT 850/900MHZ PCB TRACE U.FL |
578 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | - | PCB Trace | 5 | 3 | -6dB | 2dBi | 2 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | GSM |
|
W3334B0150RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
457 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Flat Patch | 2 | 2 | - | 5.5dBi | 3 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, WLAN, Zigbee™ |
|

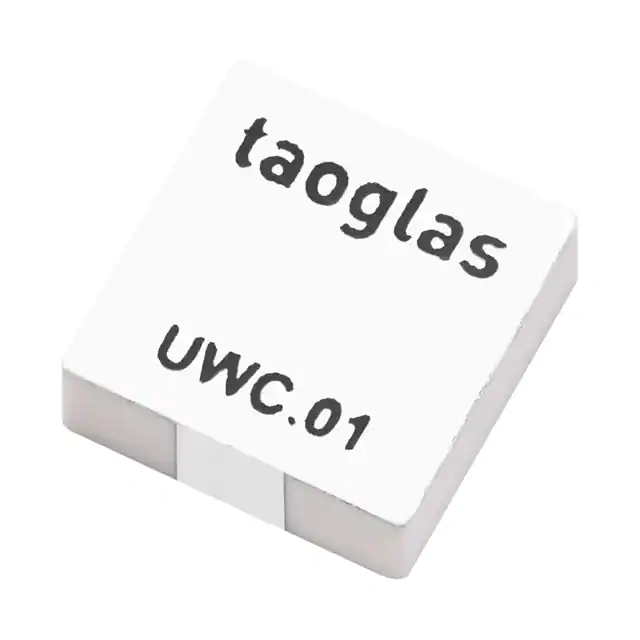

UWC.01ACCURAUWB UWC.01 6-8GHZ ULTRA WI |
1,075 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (f > 4GHz) | 6.49GHz, 6.99GHz | 5.95GHz ~ 6.74GHz, 6.24GHz ~ 7.03GHz, 6.74GHz ~ 7.24GHz | Chip | 3 | 2, 2.2, 2.7 | -8dB, -9dB, -10dB | 4.5dBi, 4.5dBi, 3.5dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | UWB |
|
2108857-6PCB ANT, MHF4, 100MM WI-FI 6E TR |
2,522 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
ENB2449A1-10MH4LEMBED,NBLADE,100MM,D1.13,MHF4L |
7,201 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.25GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.6GHz ~ 6GHz | PCB Trace | 3 | 2 | - | 3.19dBi, 4.1dBi, 4.35dBi | - | Cable - 100mm | I-PEX MHF4L | - | - | - | Surface Mount | - | WLAN |
|
EFF6989A3S-19MH4LEMBED,DIPOLE,MHF4L 190MM,ADH,REV |
1,138 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.785GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 698MHz ~ 824MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.35GHz ~ 1.55GHz, 1.55GHz ~ 1.69GHz, 1.69GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.91GHz ~ 2.17GHz, 2.3GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 4.2GHz, 4.9 | PCB Trace | 12 | 2, 2.2, 2.5 | - | 0.9dBi, 1.4dBi, 2.7dBi, 4dBi, 4.2dBi, 4.1dBi, 3.7dBi, 3.9dBi, 3.7dBi, 3.5dBi, 3.3dBi, 4.5dBi | 5 W | Cable - 190mm | I-PEX MHF4L | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, LTE |
|
2344656-2WLAN DUAL BAND ANTENNA FPC V 100 |
3,005 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
2344657-2WLAN DUAL BAND ANTNNA FPC H 100M |
2,671 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|
ANT1818B00DT1516SRF ANT 1.575/1.602GHZ CER PATCH |
2,611 | - |
|
Datasheet | 1818 | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.606GHz | Ceramic Patch | 2 | 2 | -26.080dB, -26.781dB | 2.65dBi, 2.79dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
2372112-1LTE ANTENNA COTS FPC ASSEMBLY 15 |
2,595 | - |
|
Datasheet | - | Bag | Active | LTE, UMTS, WCDMA | Wide Band | 829MHz, 1.94GHz, 2.5GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz | PCB Trace | 3 | 3 | - | 0dBi, 0dBi, 0dBi | - | Cable - 150mm | MHF | - | - | - | Adhesive | 0.007" (0.19mm) | Cellular |
|
3100AT51A7200001ERF ANT 6.7GHZ CHIP SOLDER SMD |
1,133 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | SHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 6.7GHz | 3.1GHz ~ 10.3GHz | Chip | 1 | - | -9.5dB | 1.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
ANT-W63-FPC-LV100UFANT WIFI6 FPC 45X7 100MM UFL |
726 | - |
|
Datasheet | ANT-W63-FPC-LV | Bag | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.45GHz, 5.522GHz, 6.537GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz, 5.95GHz ~ 7.125GHz | Flat Patch | 3 | 1.5, 1.6 | - | 4.8dBi, 6.3dBi, 7.4dBi | 2 W | Cable - 100mm | MHF1, U.FL | - | - | - | Adhesive | 0.004" (0.10mm) | 802.11b/g, Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
2344657-7WLAN DUAL BAND ANTENNA FPC H 150 |
2,441 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | PCB Trace | 2 | 2 | - | 5dBi | - | Cable - 150mm | U.FL (UMCC), I-PEX MHF4 | - | - | - | Adhesive | 0.007" (0.19mm) | Bluetooth, WLAN, Zigbee™ |
|

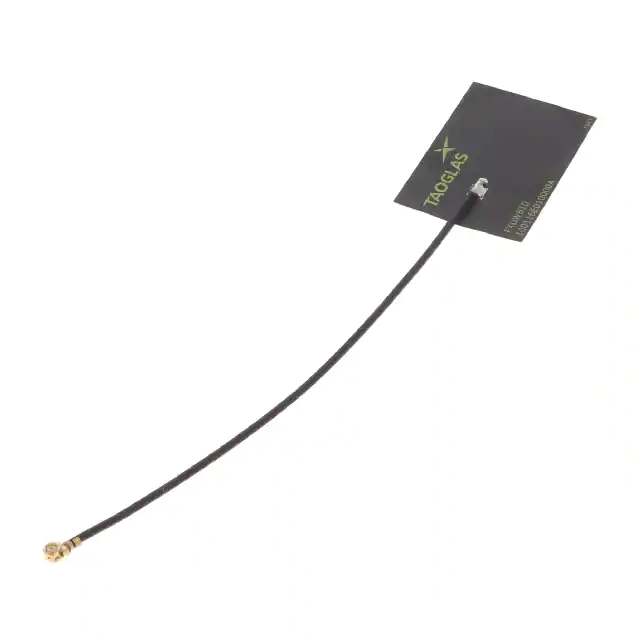

FXUWB10.07.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 |
181 | - |
|
Datasheet | - | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2 | - | 4.5dBi, 6.2dBi, 7.1dBi | 10 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|
|
YCGS005AACERAMIC ANTENNA,GNSS,SMD,18*18*4 |
1,717 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.588GHz | 1.575GHz ~ 1.602GHz | Ceramic Patch | 1 | 2 | - | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
RPCF-W1B1-7910-O-W-001ANTENNA FLEXIBLE PCB 863-928 MHZ |
1,574 | - |
|
Datasheet | RPCF | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 895.5MHz | 863MHz ~ 928MHz | PCB Trace | 1 | 2 | -10dB | 1.77dBi | - | - | I-PEX | - | - | - | Surface Mount | - | LoRa |
|
YF0020AAEMBEDDED CELLULAR ANTENNA |
1,282 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular | Wide Band | 829MHz, 1.228GHz, 1.505GHz, 1.94GHz, 3.65GHz, 4.5GHz, 5.5GHz | 698MHz ~ 960MHz, 1.176GHz ~ 1.28GHz, 1.4GHz ~ 1.61GHz, 1.71GHz ~ 2.17GHz, 2.17GHz ~ 2.69GHz, 3.3GHz ~ 4GHz, 4GHz ~ 5GHz, 5GHz ~ 6GHz | Flat Patch | 8 | 1.6, 1.7, 1.8, 2.01, 2.4, 3.3 | - | 1.2dBi, 4.36dBi, 4.2dBi, 3.8dBi, 2.7dBi, 2.9dBi | - | Cable - 184mm | I-PEX MHF4 | - | - | - | Surface Mount | 0.005" (0.13mm) | 6G |
|
2108857-8PCB ANT, MHF4, 200MM WI-FI 6E TR |
578 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5125GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz, 5.925GHz ~ 7.125GHz | PCB Trace | 3 | 2 | - | 4.3dBi | - | Cable - 200mm | MHF4 | - | - | - | Adhesive | 0.276" (7.01mm) | Wi-Fi |
|
|
PCS.06.MHAVOK MIRRORED LOW PROFILE LTE C |
500 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.472GHz, 1.955GHz, 2.45GHz, 2.59GHz | 698MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 5 | - | - | 0.5dBi, 1dBi, 3.4dBi, 2.6dBi, 2.9dBi | 5 W | - | - | - | - | - | Surface Mount | 0.118" (3.00mm) | 2G, 3G, 4G, LTE |
|
ANT-2.4-FPC-SH100UFANT 2.4 FPC 25X20 100 CBL UFL |
1,807 | - |
|
Datasheet | ANT-2.4-FPC-SH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 4dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
RF Antennas FAQ
Common questions about selecting, comparing and sourcing RF Antennas components through Winsun (HK) Electronics.
What should I check when selecting RF Antennas components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Antennas part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Antennas parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Antennas components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
