RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

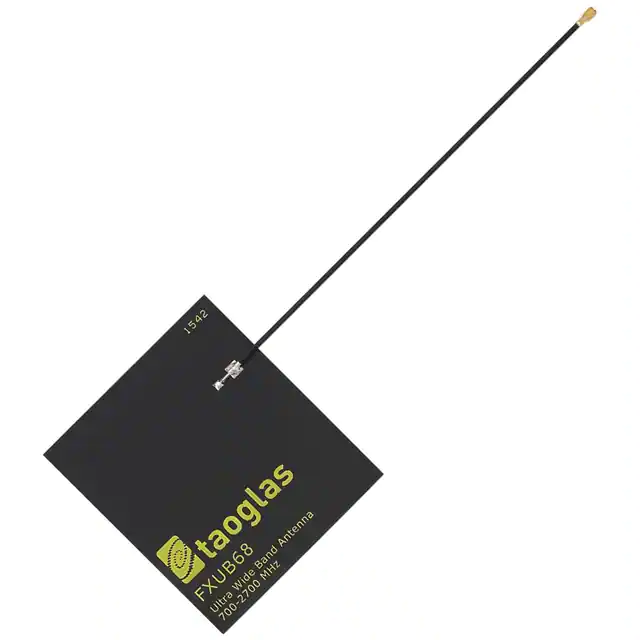

FXUB68.07.0180CRF ANT 829MHZ/2.2GHZ FLAT PATCH |
2,130 | - |
|
Datasheet | - | Bulk | Active | Cellular, WiFi | Wide Band | 829MHz, 2.2GHz | 700MHz ~ 960MHz, 1.71GHz ~ 2.7GHz | Flat Patch | 2 | 2 | -17dB | 2dB | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | GSM, LTE, WLAN |
|

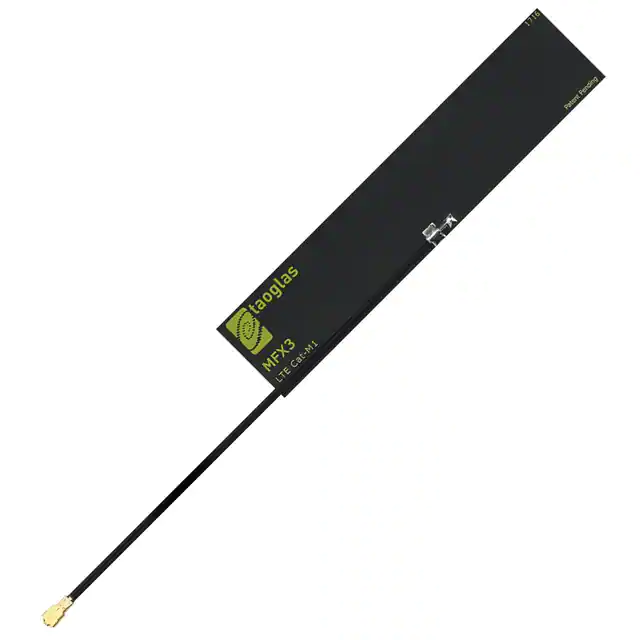

MFX3.07.0150CCAT M1 WIDE BAND FLEX ANTENNA 69 |
834 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz | 698MHz ~ 3GHz | Flat Patch | 6 | - | - | 0.21dBi, 0.36dBi, 3.07dBi, 3.1dBi, 3.68dBi, 4.51dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.008" (0.20mm) | LTE |
|
ANT-GNCP-CA188L165RF ANT GNSS GPS 15MM PATCH LNA |
1,327 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.5897GHz, 1.602GHz | 1.559GHz ~ 1.563GHz, 1.567GHz ~ 1.5836GHz, 1.5876GHz ~ 1.5917GHz, 1.593GHz ~ 1.6086GHz | Ceramic Patch | 4 | 1.1 | - | 10.6dBi, 13.7dBi, 14.1dBi, 14.1dBi | - | Cable - 65mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.280" (7.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
AEACAC195013-S915RF ANT 915MHZ WHIP TILT SMA ML |
337 | - |
|
Datasheet | AEAC | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 903MHz ~ 928MHz | Whip, Tilt | 1 | 2.5 | - | 3dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.677" (195.00mm) | ISM, LoRa, LPWAN, Sigfox |
|
W6113B0100RF ANT 829MHZ/1.47GHZ FLAT CAB |
293 | - |
|
Datasheet | - | Bulk | Active | - | Wide Band | 829MHz, 1.47GHz, 1.58GHz, 1.94GHz, 2.5GHz, 3.5GHz | 698MHz ~ 960MHz, 1.428GHz ~ 1.51GHz, 1.559GHz ~ 1.61GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz | Flat Patch | 6 | - | -10dB | 4.2dBi | 3 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | - |
|

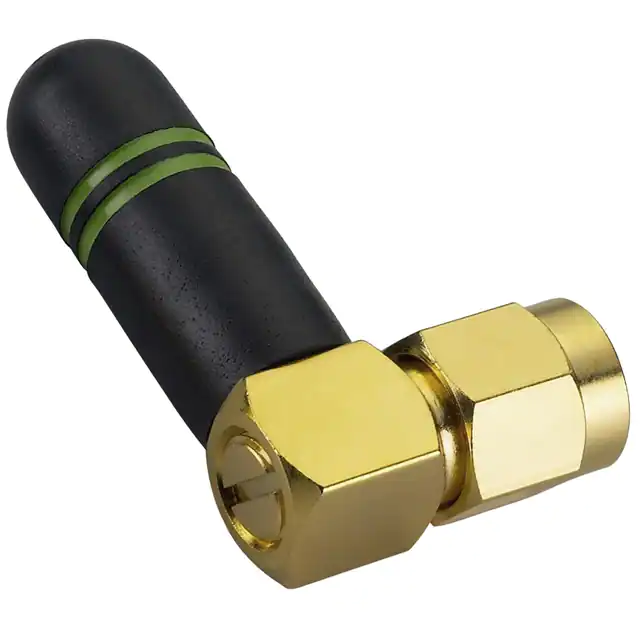

GW.26.0112RF ANT 2.4GHZ WHIP RA SMA MALE |
440 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | - | - | 1.8dBi | 1 W | - | SMA Male | IP65 | - | - | Connector Mount | 1.122" (28.50mm) | Bluetooth, WLAN |
|

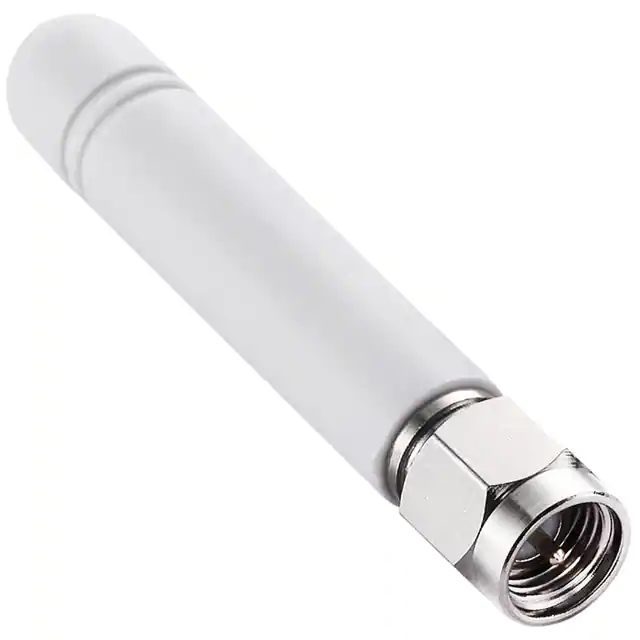

TG.22.0111WRF ANT 892MHZ/1.9GHZ WHIP STR |
101 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 2 | 3.5 | -5dB | 1.91dBi, 3.23dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | CDMA, GSM, UMTS, WCDMA |
|
ANT-5GWWS1-SMARF ANT 617MHZ-5GHZ 5G TILT SMA |
217 | - |
|
Datasheet | 5GW | Bag | Active | Cellular, General ISM, Navigation | Wide Band | 600MHz, 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8 GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.5GHz, 3.3GHz, 3.5GHz, 3.7GHz, 4.9GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 3.7GHz ~ 4.2GHz, 4.94GHz ~ 4.99GHz | Blade, Tilt | 9 | 3.1, 1.8, 2.8, 1.8, 1.9, 3.9, 1.8, 3.2, 1.8 | -5.8dB, -10.9dB, -6.5dB, 10.9dB, -10.2dB, -4.6dB, 10.9dB, -5.6dB, -10.9dB | 0.8dBi, 0.5dBi, 0.7dBi, 4dBi, 4dBi, 4dBi, 2.5dBi, 2.2dBi, 3.5dBi | 5 W | - | SMA Male | - | - | - | Connector Mount | 5.340" (135.70mm) | 4G, 5G, Cat-M1, Cellular, GSM, LPWA, LTE, LTE-M, NB-IoT, UMTS |
|
ANT-2.4-CW-CT-SMARF ANT 2.4GHZ WHIP STR SMA MALE |
123 | - |
|
Datasheet | CT | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.375GHz ~ 2.525GHz | Whip, Straight | 1 | 1.9 | - | 2.8dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.449" (113.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
MAF94271RF ANT 2.4GHZ/5.5GHZ WHIP TILT |
173 | - |
|
Datasheet | WTS | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | Whip, Tilt | 2 | 2 | - | 2.1dBi, 3.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 3.776" (95.90mm) | Wi-Fi, WLAN |
|
ST0228-30-502-ARF ANTENNA STICK RP-SMA PLUG DUA |
413 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB | 3dBi, 4.4dBi | 2 W | - | RP-SMA | - | - | - | Connector Mount | 4.291" (109.00mm) | Wi-Fi |
|
|
TI.93.A111TERMINAL ANTENNA 902-928MHZ SMA |
219 | - |
|
Datasheet | - | Bag | Active | General ISM, Lora | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Dome | 1 | - | - | -7.78dB | - | - | SMA Male | IP67 | - | - | Connector Mount | 0.866" (22.00mm) | - |
|

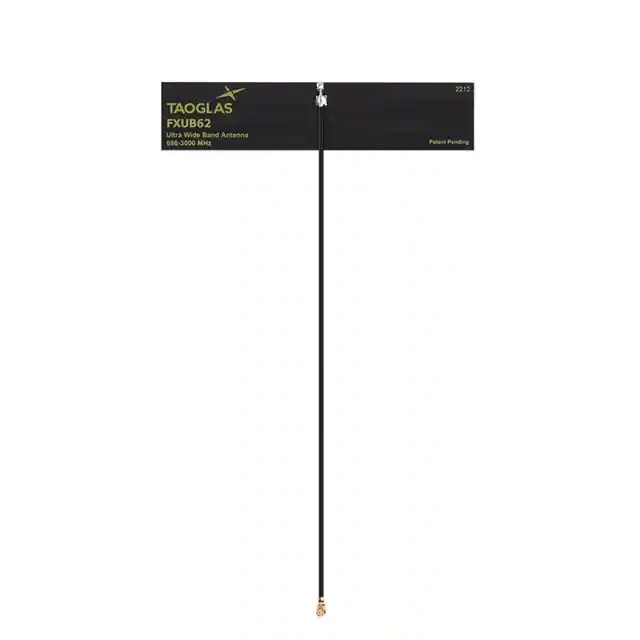

FXUB62.07.0150CWIDE BAND FLEX ANTENNA 698MHZ TO |
122 | - |
|
Datasheet | - | Bag | Active | AGPS, Cellular | Wide Band | 829MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz | 698MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz | FlexPIFA | 6 | - | -3.4dB, -9.7dB, -9.8dB, -10.5dB, -10.7dB | 2.4dBi, 4.5dBi, 5.9dBi, 5.9dBi, 4.6dBi, 4dBi | 5 W | Cable - 150mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.008" (0.20mm) | 4G, 5G, LTE |
|
ET56AGBJADIPOLE ANTENNA |
1,795 | - |
|
Datasheet | - | Bag | Active | Cellular | - | - | - | - | - | 10 | - | 3dBi | - | - | U.FL | - | - | - | - | - | - |
|
66089-2430RF ANT 2.4GHZ WHIP STR U.FL CONN |
2,420 | - |
|
Datasheet | 66089 | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 2.362" (60.00mm) | - |
|
|
66089-0930RF ANT 915MHZ WHIP STR U.FL CONN |
186 | - |
|
Datasheet | 66089 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | - | Whip, Straight | 1 | 1.7 | - | 3dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 4.409" (122.00mm) | - |
|
ANT-5GWWS3-SMARF ANT 617MHZ-6GHZ 5G TILT SMA |
576 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 657.5MHz, 750.5MHz, 842.5MHz, 1.175GHz, 1.593GHz, 1.9475GHz, 2.495GHz, 3.75GHz, 4.7GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 4.4GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | 1.7, 1.9, 2, 2.1, 2.3, 2.4, 2.5, 2.8, 4.5 | - | 1.4dBi, 1.1dBi, 1.1dBi, 2.3dBi, 2.8dBi, 8.5dBi, 9.9dBi, 5.4dBi, 4dBi, 5.1dBi | 30 W | - | SMA Male | - | - | - | Connector Mount | 5.252" (133.40mm) | 2G, 3G, 4G, 5G, LTE |
|

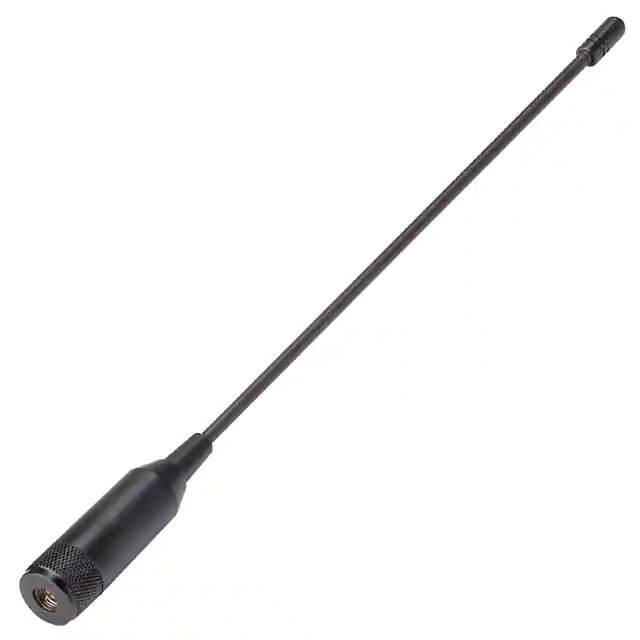

FW.86.B.SMA.MRF ANT 868MHZ WHIP STR SMA MALE |
216 | - |
|
Datasheet | Meteor | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | 2 | -10dB | 2.8dBi | 2 W | - | SMA Male | IP65 | - | - | Connector Mount | 9.449" (240.00mm) | ISM |
|
APARM2508S-SGL2L5RF ANT GPS L1+L2+L5 STACK PATCH |
1,313 | - |
|
Datasheet | APARM | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.575GHz | 1.164GHz ~ 1.188GHz, 1.574GHz ~ 1.576GHz | Ceramic Patch | 2 | 1.8 | - | 3.8dBi, -0.3dBi, -0.5dBi | - | - | Pin | - | - | - | Surface Mount | 0.315" (8.00mm) | GPS |
|
ANT-MDIP5-SMA+5DBI WHIP 90DEG HINGED 2.4GHZ / |
161 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.2GHz, 5.787GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.25GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.8 | - | 4dBi, 4.5dBi, 5dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 6.339" (161.00mm) | Wi-Fi |
