RF Antennas
Browse available RF Antennas part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1004112-C003ANTENNA |
285 | - |
|
Datasheet | - | Bulk | Active | Cellular | Wide Band | 700MHz, 750MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.7GHz | 690MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz | Whip, Tilt | 8 | 2.5 | - | 1.18dBi, 4.5dBi, 4dBi | - | - | SMA Male | - | - | - | Connector Mount | 8.591" (218.20mm) | ISM, LoRa, LPWAN, LTE, Sigfox |
|
ANT-868-WRT-UFLRF ANT 868MHZ DOME U.FL PANEL MT |
826 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 800MHz, 850MHz | 855MHz ~ 880MHz | Dome | 1 | 1.9 | - | 1.5dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|
ILA.01RF ANT 915MHZ CHIP SOLDER SMD |
3,977 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | 2 | -10dB | 1dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | - |
|

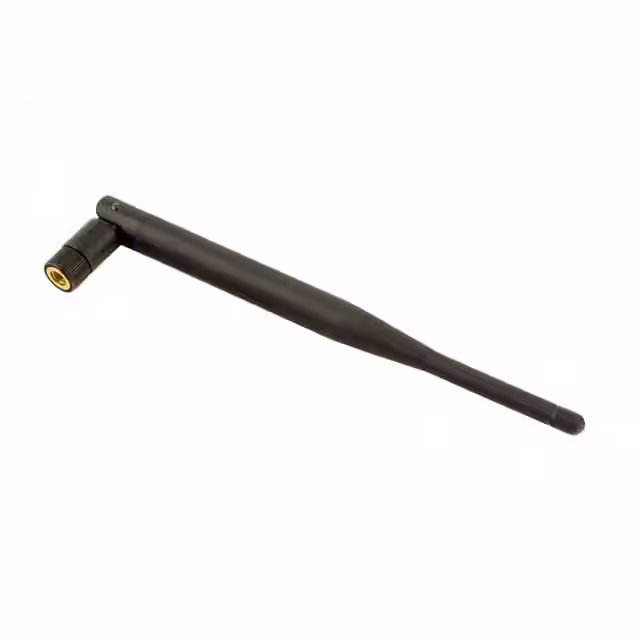

TI.15.3113RF ANT 433MHZ WHIP TILT SMA MALE |
104 | - |
|
Datasheet | - | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 433MHz ~ 434MHz | Whip, Tilt | 1 | 1.5 | - | -4.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | - |
|
S181FL-5-RMM-2450SRF ANT 2.4GHZ WHP/TILT PNL MT 5" |
539 | - |
|
Datasheet | - | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 2dBi | - | Cable - 127mm | MMXC Male | - | - | - | Panel Mount | 4.213" (107.00mm) | - |
|
ANT-868-MHW-SMA-LRF ANT 868MHZ WHIP CTR CAB 180" |
102 | - |
|
Datasheet | MHW | Bag | Active | 802.15.4 | UHF (300MHz ~ 1GHz) | 868MHz | 862MHz ~ 876MHz | Helical | 1 | 1.3 | - | 4dBi | 10 W | Cable - 4.6m | SMA Male | - | - | - | Adhesive | 5.433" (138.00mm) | LoRa, LPWAN, Sigfox |
|
|
ANT-916-WRT-UFLRF ANT 916MHZ DOME U.FL PANEL MT |
720 | - |
|
Datasheet | WRT | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 900MHz, 915MHz | 900MHz ~ 930MHz | Dome | 1 | 1.9 | - | -0.1dBi | - | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.433" (11.00mm) | ISM, LoRa, Sensor Networks, SigFox |
|

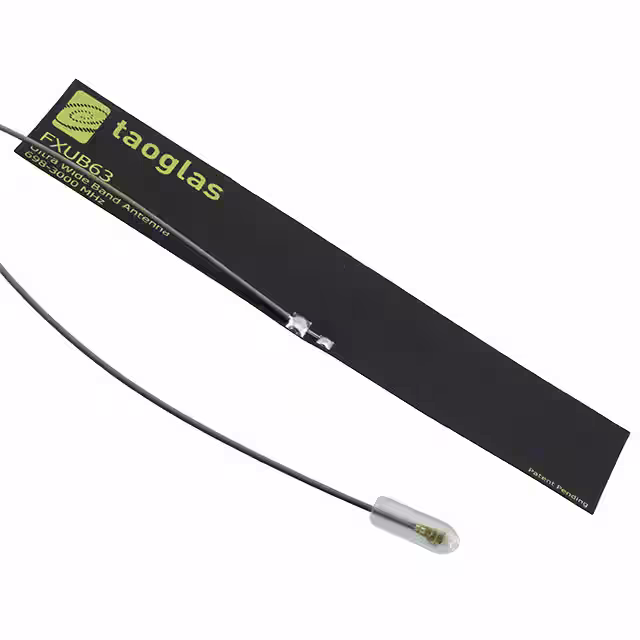

FXUB63.24.0150BFLEX 698MHZ TO 3GHZ WITH 150MM 1 |
360 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
|
ECHO27/0.1M/IPEX/S/S/15RF ANT 1.575GHZ PCB TRACE CAB |
352 | - |
|
Datasheet | ECHO 27 | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | PCB Trace | 1 | 1.5 | - | 22dBi | - | Cable - 100mm, LNA | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.256" (6.50mm) | GPS |
|
AEACAC198013-S698RF ANT 700MHZ/800MHZ WHIP TILT |
101 | - |
|
Datasheet | AEAC | Bulk | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.575GHz, 1.602GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.655GHz | Whip, Tilt | 2 | 3 | - | 3dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | LTE |
|
ANT-433-WRT-UFLRF ANT 433MHZ WRT DOME UFL |
980 | - |
|
Datasheet | WRT | Bag | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 430MHz ~ 435MHz | Dome | 1 | 1.4 | - | -1.8dBi | 5 W | Cable - 216mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 1.063" (27.00mm) | Sensor Networks |
|
ANT-DB1-WRT-UFL-100RF ANT 2.4/5GHZ WRT UFL -100 |
432 | - |
|
Datasheet | WRT | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4425GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.9, 3.7, 4 | - | 3.2dBi, 6.8dBi, 7dBi | 5 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 0.394" (10.00mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|

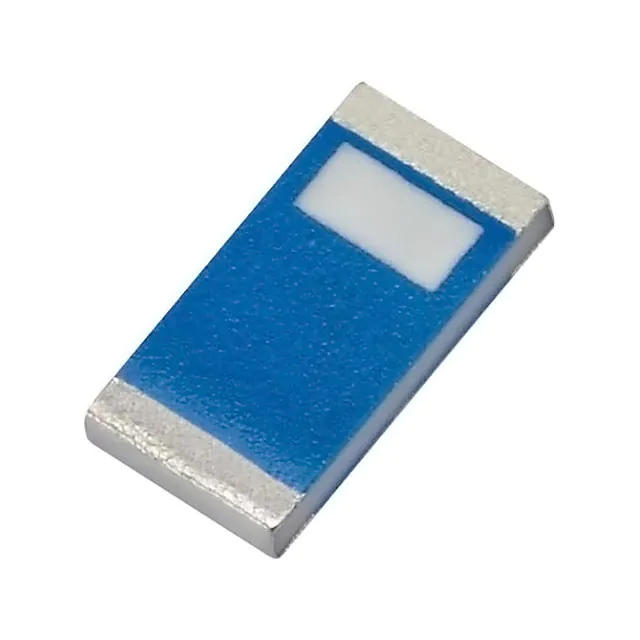

WLA.10RF ANT 1.575GHZ/2.4GHZ CHIP SLD |
1,780 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | Wide Band | 1.575GHz, 2.4GHz, 5.5GHz | 1.575GHz, 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 3 | - | -10dB | 1.8dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Bluetooth, GPS, Wi-Fi, WLAN, Zigbee™ |
|
TG.30.8113WRF ANT 750MHZ/892MHZ WHIP TILT |
669 | - |
|
Datasheet | Apex | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 892MHz, 1.575GHz, 1.9GHz, 2.6GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.8GHz | Whip, Tilt | 5 | - | - | 1.1dBi, 0.3dBi, 1.1dBi, 2.7dBi, 2.7dBi | 10 W | - | SMA Male | IP67 | - | - | Connector Mount | 7.319" (185.90mm) | CDMA, GPS, GSM, LTE, UMTS, WLAN |
|
ANT-W63-WRT-UFLRF ANT 2.4/5/6GHZ DOME PNL MT UF |
939 | - |
|
Datasheet | WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | U.FL | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
ANT-DB1-WRT-MON-MHF4RF ANT 2.5/5GHZ PNL MNT MHF4 |
854 | - |
|
Datasheet | DB1-WRT-MON | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5225GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.895GHz | Panel | 2 | 2.2, 10.8 | - | 2.1dBi, 2.6dBi | 5 W | Cable - 216mm | I-PEX MHF4 | - | - | - | Panel Mount | 1.063" (27.00mm) | 802.11b/g/n/ac, Bluetooth, ISM, U-NII, Wi-Fi 4, Wi-Fi 5, Zigbee™ |
|
ANT-W63-WRT-SMARF ANT 2.4/5/6GHZ DOME PNL MT SM |
901 | - |
|
Datasheet | WRT | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz, 6GHz | 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Dome | 3 | 1.5, 1.4, 2.2 | -14dB, -15.6dB, -8.5dB | 4.5dBi, 4.5dBi, 6.4dBi | 5 W | Cable - 131mm | SMA | IP67 | - | - | Panel Mount | 1.094" (27.79mm) | 802.11, 802.15.4, Bluetooth, Wi-Fi 4, Wi-Fi 5, Wi-Fi 6, Wi-Fi 6E, Zigbee |
|
T321AM-GDPRF ANT 900MHZ/1.8GHZ WHIP STR |
307 | - |
|
Datasheet | - | Bulk | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz, 1.9GHz | 890MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Whip, Straight | 3 | 2 | - | 0dBi | - | - | SMA Male | - | - | - | Connector Mount | 2.126" (54.00mm) | - |
|
RD2458-5-RSMARF ANT 2.4GHZ/5.3GHZ WHIP TILT |
609 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz, 5.8GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.35GHz, 5.725GHz ~ 5.85GHz | Whip, Tilt | 3 | 1.5 | - | 3dBi, 5dBi, 5dBi | 10 W | - | RP-SMA Male | - | - | - | Connector Mount | 6.102" (155.00mm) | Wi-Fi, WiMax™ |
|
PCTCN24005RF ANT 2.45GHZ WHIP STR NMO MNT |
353 | - |
|
Datasheet | PCTCN | Bulk | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 2 | - | 4.5dB | 150 W | - | - | - | - | - | NMO Mount | 8.750" (222.25mm) | 2G, 3G, 5G, Bluetooth, Cellular, LMR/TETRA/P25, LTE |
