RF Antennas
Use the filters and product table below to compare RF Antennas components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

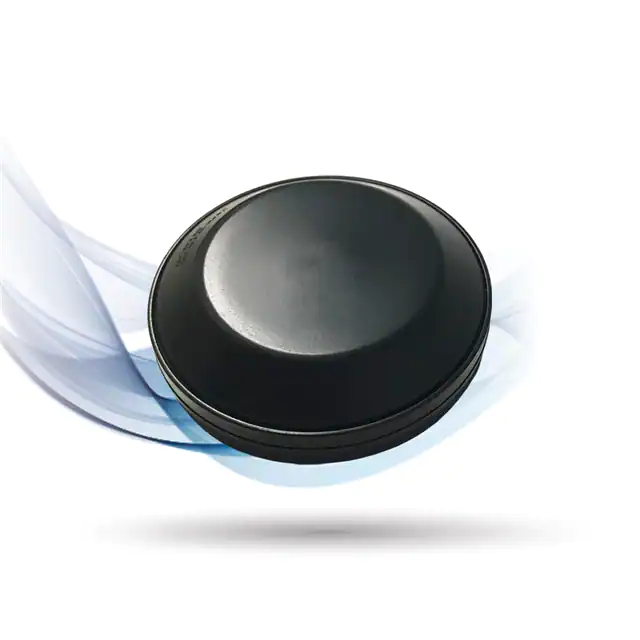

AP-LPWAN-Q-S2-BL-15ANTENNA PLUS LPWAN ANTENNA |
1,741 | - |
|
Datasheet | - | Bag | Obsolete | General ISM | UHF (300MHz ~ 1GHz) | 920MHz | 890MHz ~ 950MHz | Dome | 1 | 1.5 | - | 3dBi | - | Cable - 4.572m | SMA Male | - | - | - | Panel Mount | 0.622" (15.80mm) | ISM, LPWAN |
|

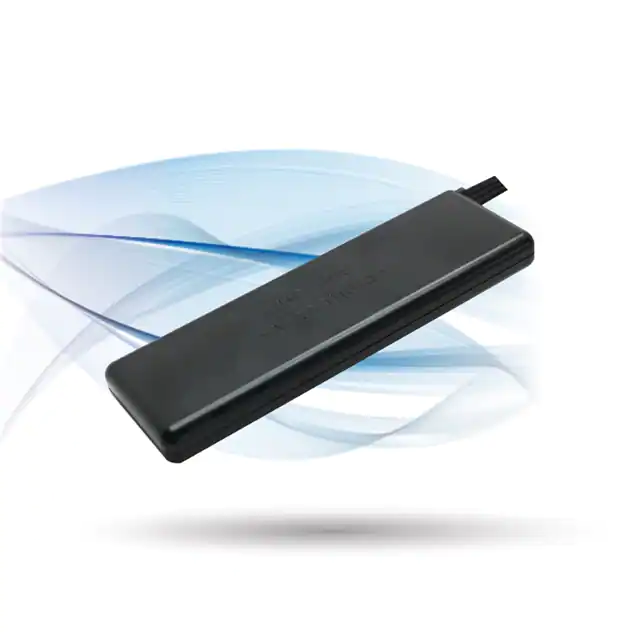

AP-GL-CCWG-BL-10ANTENNA PLUS ULTRAMAX GLASS ANTE |
2,332 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.62GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 6 | - | - | 3.5dBi, 30.5dBi, 4.5dBi, 7dBi, 5dBi | - | Cable - 3.05m | RP-SMA Male (1), SMA Male (2) | - | - | - | Adhesive | 0.670" (17.02mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|

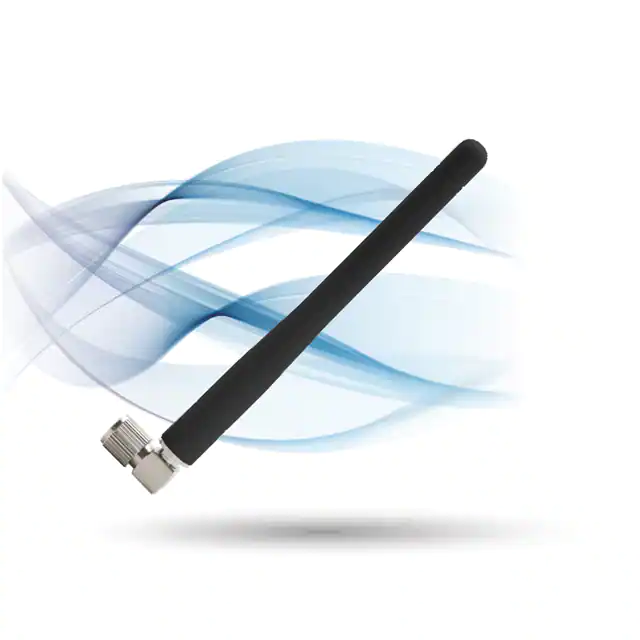

AP-DIPOLE-C-IN-S2-BLANTENNA PLUS DIPOLE ANTENNA |
1,472 | - |
|
Datasheet | - | Box | Active | Cellular | UHF (1GHz ~ 2GHz) | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Right Angle | 1 | - | - | 4.4dBi | - | - | SMA Male | - | - | - | Connector Mount | 4.567" (116.00mm) | LTE |
|

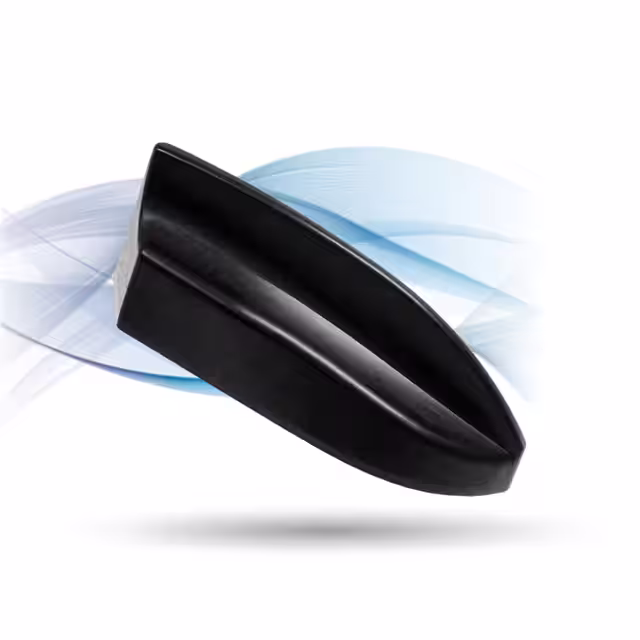

AP-MMF-CCWWG-Q-SMA-RP34-BLANTENNA PLUS MULTIMAX FV MIMO AN |
2,641 | - |
|
Datasheet | * | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AP-MMF-CCWWWG-Q-SMA-RP345-BLANTENNA PLUS MULTIMAX FV MIMO AN |
1,034 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

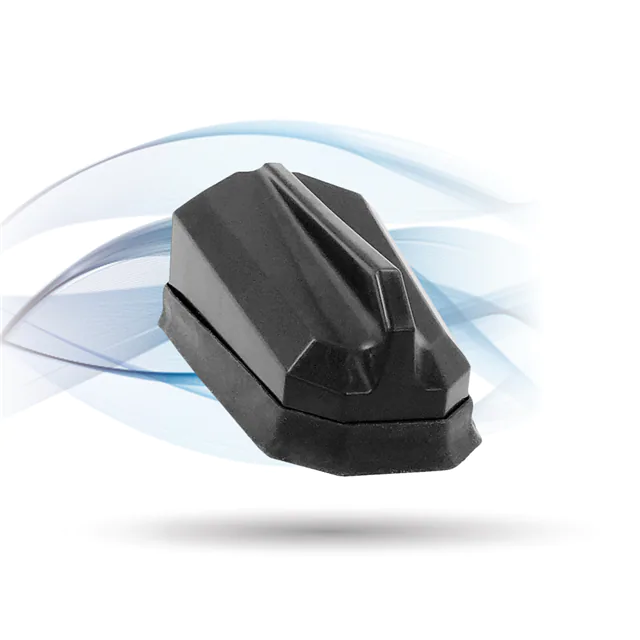

AP-CCWWG-Q-S22222-RP34-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
3,740 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 2dBi, 30.5dBi, 6dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AP-M2M-SN-BLANTENNA PLUS M2M SALT SHAKER ANT |
1,442 | - |
|
Datasheet | - | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Dome | 2 | - | - | 3dBi, 6dBi | - | - | SMA Male | IP67 | - | - | Panel Mount | 3.236" (82.20mm) | LTE |
|
AP-CCWWWG-Q-S222222-RP345-BLANTENNA PLUS ULTRAMAX MIMO ANTEN |
3,547 | - |
|
Datasheet | - | Bag | Obsolete | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.58GHz, 2.2GHz, 2.4GHz, 5.45GHz | 698MHz ~ 960MHz, 1.55GHz ~ 1.61GHz, 1.7GHz ~ 2.7GHz, 4.9GHz ~ 6GHz | Module | 5 | - | - | 4.9dBi, 2.5dBi, 7dBi, 7dBi, 5dBi | - | Cable - 4.572m | RP-SMA Male (1), SMA Male (2) | - | - | - | Panel Mount | 2.220" (56.40mm) | Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi |
|
AP-M2M1-CC-Q-S22-WH-6ANTENNA PLUS M2MAX MIMO ANTENNA |
4,409 | - |
|
Datasheet | M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
|
|
AP-M2M1-CC-Q-S22-BL-6ANTENNA PLUS M2MAX MIMO ANTENNA |
2,405 | - |
|
Datasheet | M2MAX® | Bag | Obsolete | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.7GHz ~ 2.7GHz | Blade | 2 | - | - | 3dBi, 6dBi | - | Cable - 3.05m | SMA Male | - | - | - | Bolt | 2.150" (54.60mm) | Cellular, LTE |
RF Antennas FAQ
Common questions about filtering, comparing and sourcing RF Antennas components.
How can I narrow the RF Antennas selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Antennas part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
