RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R432431000COUPLER: SMA 1-2GHZ 3DB |
4,632 | - |
|
Datasheet | - | Bulk | Active | Standard | 1GHz ~ 2GHz | 3dB | General Purpose | 0.3dB | 100W | 25dB | - | - |
|
SMW19EC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
3,558 | - |
|
Datasheet | - | Bag | Active | Standard | 40GHz ~ 60GHz | 20 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
SMW19EC001-10WG COUPLER WR-19 40-60 GHZ 10 DB |
2,894 | - |
|
Datasheet | - | Bag | Active | Standard | 40GHz ~ 60GHz | 10 ± 1dB | General Purpose | 1.4dB | - | - | - | Module |
|
|
HH-107-SMAHYBRID,BROAD-BAND,180DEG |
2,796 | - |
|
Datasheet | - | Bulk | Active | Standard | 2MHz ~ 200MHz | - | General Purpose | 1dB | 1W | 35dB | - | Module |
|

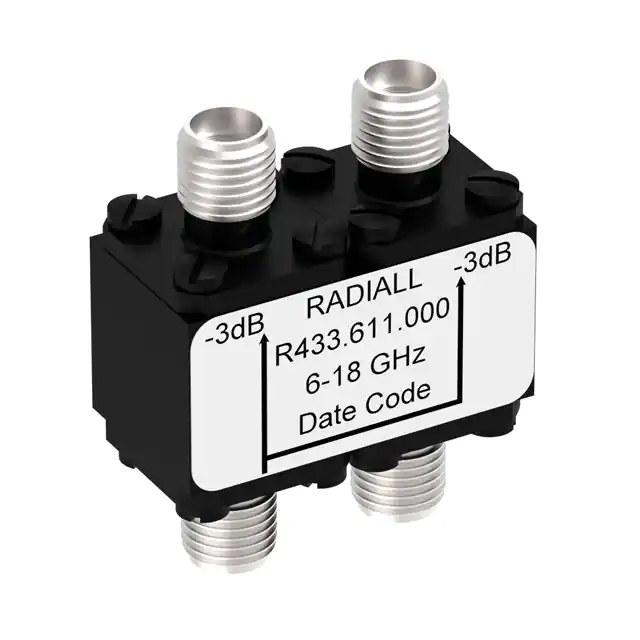

R433611000COUPLER: SMA 6-18GHZ 3DB |
4,298 | - |
|
Datasheet | - | Bulk | Active | Standard | 6GHz ~ 18GHz | 3dB | General Purpose | 0.6dB | 30W | 16dB | - | - |
|
R433623000COUPLER: SMA 3.7-8.3GHZ 10DB FLA |
4,102 | - |
|
Datasheet | - | Bulk | Active | Standard | 3.7GHz ~ 8.3GHz | 10dB | General Purpose | 1dB | 50W | - | - | - |
|
R432374000COUPLER: N 0.5-1GHZ 20DB |
2,615 | - |
|
Datasheet | - | Bulk | Active | Standard | 500MHz ~ 1GHz | 20 ± 0.3dB | General Purpose | 0.4dB | 300W | - | - | - |
|
|
FMCP1146-30COUPLER 0.5-1 GHZ 500 W TYPE N |
3,772 | - |
|
Datasheet | - | Bag | Active | Standard | 500MHz ~ 1GHz | 30 ± 0.8dB | General Purpose | 0.1dB | - | - | - | - |
|
|
FMCP1154HYBRID SMA 1.4MHZ-6GHZ 30 W |
2,016 | - |
|
Datasheet | - | Bag | Active | Standard | 1.4GHz ~ 6GHz | 3dB | General Purpose | 1.2dB | - | 30dB | - | Module |
|
|
2020-4018-06COUPLER,DIRECTIONAL, |
1,763 | - |
|
Datasheet | 2020 | Bulk | Active | Standard | 7GHz ~ 12.4GHz | 6 ± 1dB | General Purpose | 0.4dB | 50W | - | - | - |
|
R433524000COUPLER: SMA 1.7-4.2GHZ 20DB FLA |
1,768 | - |
|
Datasheet | - | Bulk | Active | Standard | 1.7GHz ~ 4.2GHz | 20 ± 0.8dB | General Purpose | 0.4dB | 50W | - | - | - |
|
|
FMWCP1083-50WG COUPLER WR-112 6.57-9.99 GHZ |
2,552 | - |
|
Datasheet | - | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 50 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
FMWCP1083-30WG COUPLER WR-112 6.57-9.99 GHZ |
2,457 | - |
|
Datasheet | - | Bag | Active | Standard | 6.57GHz ~ 9.99GHz | 30 ± 1.5dB | General Purpose | 0.1dB | - | - | - | Module |
|
|
ZCDC10-06263-S+DIR COUP SMA-F 6-26.5GHZ |
3,631 | - |
|
Datasheet | - | Tray | Active | Standard | 6GHz ~ 26.5GHz | 10 ± 1.5dB | Cellular | 1dB | 20W | 29dB | 28dB | - |
|
|
FMWCP1080-20WG COUPLER WR-15 50-75 GHZ 20 DB |
1,782 | - |
|
Datasheet | - | Bag | Active | Standard | 50GHz ~ 75GHz | 20 ± 1dB | General Purpose | 1dB | - | - | - | Module |
|
|
SMW19HC001-20WG COUPLER WR-19 40-60 GHZ 20 DB |
1,018 | - |
|
Datasheet | - | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
SH7223HYBRID SMA 2MHZ-18GHZ 50 W |
2,746 | - |
|
Datasheet | - | Bag | Active | Standard | 2GHz ~ 18GHz | 3dB | General Purpose | - | - | 15dB | - | Module |
|
|
MC0626-10COUPLER 6-26.5 GHZ 10 W 2.92MM |
1,675 | - |
|
Datasheet | - | Bag | Obsolete | - | - | - | - | - | - | - | - | - |
|
|
FMWCP1086S-40WG COUPLER WR-62 11.9-18 GHZ 40 |
3,138 | - |
|
Datasheet | - | Bag | Active | Standard | 11.9GHz ~ 18GHz | 40 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
|
|
FMWCP1086S-30WG COUPLER WR-62 11.9-18 GHZ 30 |
1,664 | - |
|
Datasheet | - | Bag | Active | Standard | 11.9GHz ~ 18GHz | 30 ± 1.5dB | General Purpose | 0.15dB | - | - | - | Module |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
