RF Directional Coupler
Use the filters and product table below to compare RF Directional Coupler components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE2CP001-20CPLR 20DBSMA 6-18GHZ 50W |
1,794 | - |
|
Datasheet | - | Bag | Active | Standard | 6GHz ~ 18GHz | 20 ± 1dB | General Purpose | 1.25dB | 50W | - | - | Module |
|
PE2207-10Directional 10 dB SMA Coupler Fr |
1,045 | - |
|
Datasheet | - | Retail Package | Active | Standard | 12.4GHz ~ 18GHz | 10 ± 1dB | General Purpose | 0.6dB | 50W | - | - | - |
|
|
PE2211-10Directional 10 dB SMA Coupler Fr |
3,003 | - |
|
Datasheet | - | Retail Package | Active | Standard | 4GHz ~ 12.4GHz | 10 ± 1dB | General Purpose | 0.5dB | 50W | - | - | Module |
|
|
PE2CP1073ALow PIM Directional 30 dB N Coup |
1,511 | - |
|
Datasheet | - | Retail Package | Active | Standard | 380MHz ~ 4GHz | 30 ± 1.5dB | PCS | 0.25dB | 200W | - | - | - |
|
PE2CP1124-20CPLR 20DB2.92MM 6-40GHZ 30W |
2,595 | - |
|
Datasheet | - | Bag | Active | Standard | 6GHz ~ 40GHz | 20dB | 5G, GSM, LTE | 0.8dB | 30W | - | - | Module |
|

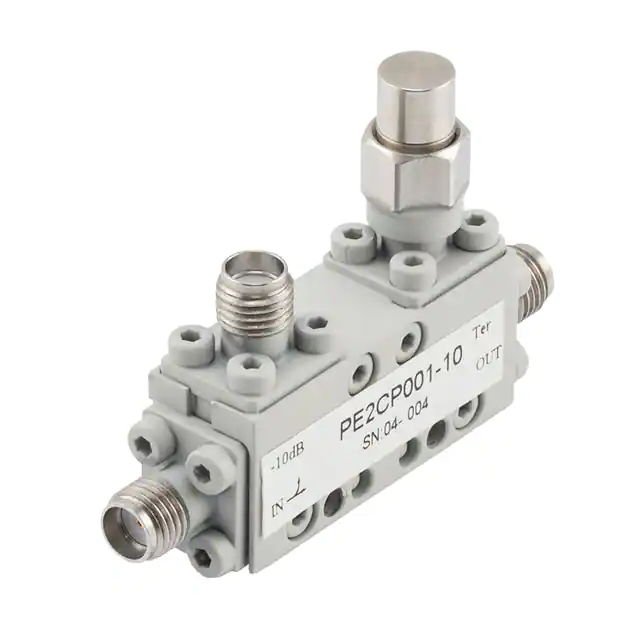

PE2CP001-10CPLR 10DBSMA 6-18GHZ 50W |
2,578 | - |
|
Datasheet | - | Bag | Active | Standard | 6GHz ~ 18GHz | 10 ± 1dB | General Purpose | 1dB | 50W | - | - | Module |
|
|
PE2205-30Directional 30 dB SMA Coupler Fr |
1,007 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7GHz ~ 12.4GHz | 30 ± 1dB | General Purpose | - | 50W | - | - | - |
|
|
PE2CP1023-6Directional 6 dB N Coupler From |
3,945 | - |
|
Datasheet | - | Retail Package | Active | Standard | 800MHz ~ 2.5GHz | 6 ± 0.5dB | CDMA, GSM, LTE | 0.5dB | 60W | - | - | Module |
|
|
PE2208-20Directional 20 dB SMA Coupler Fr |
1,238 | - |
|
Datasheet | - | Retail Package | Active | Standard | 500MHz ~ 2GHz | 20 ± 1dB | General Purpose | 0.4dB | 50W | - | - | Module |
|
|
PE2CP102690 Degree Drop-In Hybrid Coupler |
2,592 | - |
|
Datasheet | - | Retail Package | Active | Standard | 20GHz ~ 1GHz | - | General Purpose | 0.8dB | 50W | 16dB | - | Module |
RF Directional Coupler FAQ
Common questions about filtering, comparing and sourcing RF Directional Coupler components.
How can I narrow the RF Directional Coupler selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Directional Coupler part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
