RF Directional Coupler
Use the filters and product table below to compare RF Directional Coupler components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE2CP114190DEG HYB CPL 5-10GHZ 50W |
2,232 | - |
|
Datasheet | - | Bag | Active | Standard | 5GHz ~ 10GHz | 3dB | General Purpose | 0.2dB | 50W | 20dB | - | Module |
|
PE2207-6Directional 6 dB SMA Coupler Fro |
1,287 | - |
|
Datasheet | - | Retail Package | Active | Standard | 12.4GHz ~ 18GHz | 6 ± 1dB | General Purpose | 0.6dB | 4W | - | - | - |
|

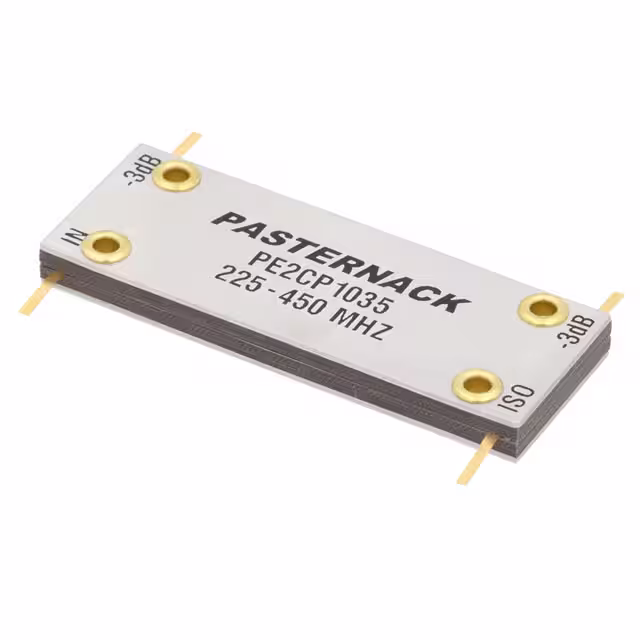

PE2CP103590D PCB HYB CPL 225-450MHZ 400W |
1,150 | - |
|
Datasheet | - | Bag | Active | Standard | 225MHz ~ 450MHz | - | General Purpose | 0.25dB | 400W | 20dB | - | Module |
|
|
PE2CP1025-20Directional 20 dB SMA Coupler Fr |
3,232 | - |
|
Datasheet | - | Retail Package | Active | Standard | 800MHz ~ 2.5GHz | 20 ± 1dB | CDMA, GSM, LTE | 0.4dB | 50W | - | - | Module |
|
|
PE-T2025Low PIM 11 dB N Unequal Tapper f |
4,461 | - |
|
Datasheet | - | Retail Package | Active | Standard | 380MHz ~ 6GHz | - | General Purpose | 0.53dB | 300W | - | - | Module |
|
|
PE2056A90 Degree SMA Hybrid Coupler Fro |
3,611 | - |
|
Datasheet | - | Retail Package | Active | Standard | 7.5GHz ~ 16GHz | 3.6 ± 0.8dB | General Purpose | - | 100W | 15dB | - | Module |
|
PE2CP01190DEG HYB CPL 500MHZ-1GHZ 50W |
1,430 | - |
|
Datasheet | - | Bag | Active | Standard | 500MHz ~ 1GHz | 3.1dB | General Purpose | 0.3dB | 50W | 22dB | - | Module |
|
|
PE2217-30Dual Directional 30 dB SMA Coupl |
1,872 | - |
|
Datasheet | - | Retail Package | Active | Standard | 500MHz ~ 1GHz | 30 ± 1.25dB | General Purpose | 0.4dB | 50W | - | - | Module |
|
|
PEWCP1077WR-137 Waveguide 40 dB Crossguid |
4,985 | - |
|
Datasheet | - | Retail Package | Active | Standard | 5.85GHz ~ 8.2GHz | 40dB | General Purpose | 0.1dB | - | - | - | - |
|
|
PE2223-30Dual Directional 30 dB SMA Coupl |
4,524 | - |
|
Datasheet | - | Retail Package | Active | Standard | 8GHz ~ 16GHz | 30 ± 1.25dB | General Purpose | 1dB | 50W | - | - | Module |
RF Directional Coupler FAQ
Common questions about filtering, comparing and sourcing RF Directional Coupler components.
How can I narrow the RF Directional Coupler selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Directional Coupler part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
