RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DCW-11-722+RF DIR CPLR 2.4GHZ-7.2GHZ 0603 |
3,428 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2.4GHz ~ 7.2GHz | 13dB | Cellular, PCS | - | 1W | - | 17dB | 0603 |
|
X3C09P2-03SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
9,443 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 3dB | AMPS, CDMA, WCDMA | 0.2dB | 187W | 23dB | 24.9dB | 4-SMD |
|
BDCN-10-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
9,152 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 11.7 ± 0.5dB | CDMA, PCS, DCS | - | 15W | - | 38.44dB | - |
|
|
BDCN-17-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
5,468 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 18.3 ± 0.6dB | CDMA, PCS, DCS | - | 16W | - | 30.6dB | - |
|
|
BDCN-7-25+RF DIR CPLR 824MHZ-2.525GHZ 6SMD |
4,339 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 824MHz ~ 2.525GHz | 10 ± 0.4dB | CDMA, PCS, DCS | - | 15W | - | 38.65dB | - |
|
|
BDCN-14-342+RF DIR CPLR 1.7GHZ-3.4GHZ 6SMD |
3,657 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 3.4GHz | 15.5dB | CDMA, PCS, DCS | - | 1W | - | 47.7dB | - |
|
|
BDCN-20-13+RF DIR COUPLER 360MHZ-1GHZ 6SMD |
2,104 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 360MHz ~ 1GHz | 24dB | General Purpose | - | 16W | - | 35dB | - |
|

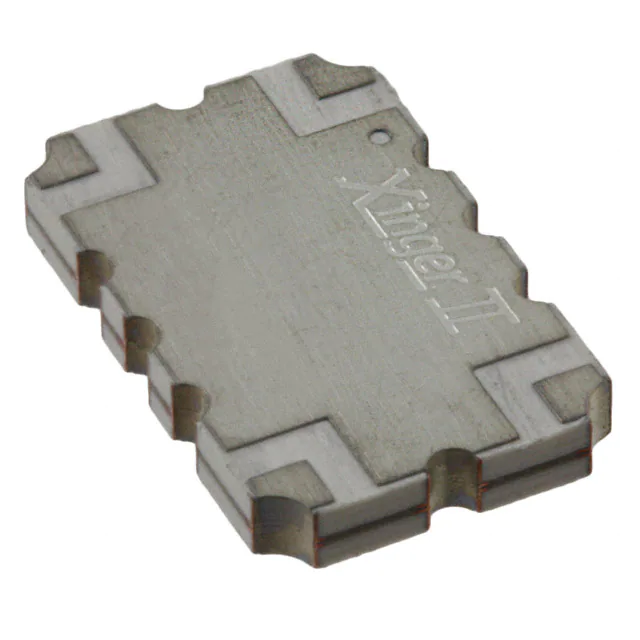

XC0900A-03SRF DIR COUPLER 811MHZ-1GHZ SMD |
925 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 811MHz ~ 1GHz | 3dB | AMPS | 0.15dB | 175W | 23dB | 24.9dB | SMD |
|

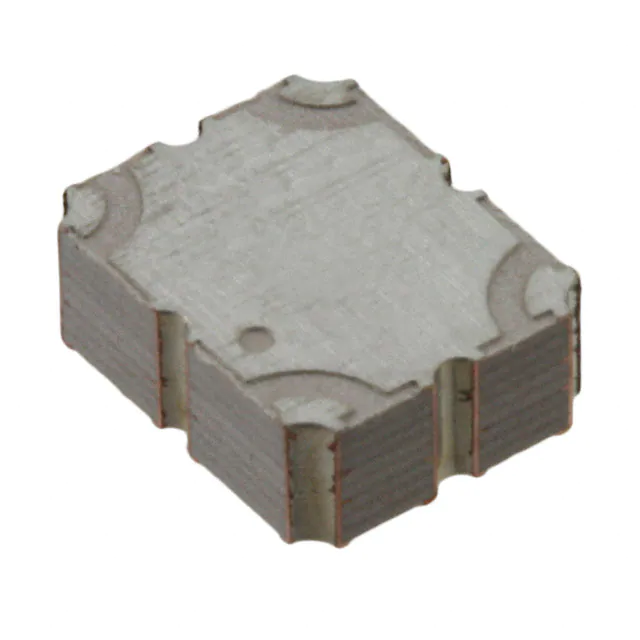

X3C19P2-30SRF DIR COUPLER 1.4GHZ-2.7GHZ SMD |
3,110 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2.7GHz | 30.4dB | DCS, LTE, PCS, WCDMA | 0.1dB | 200W | - | 24.9dB | SMD |
|
11305-3SRF DIR COUPLER 1GHZ-2GHZ SMD |
595 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | - | General Purpose | 0.45dB | 60W | 20dB | - | - |
|

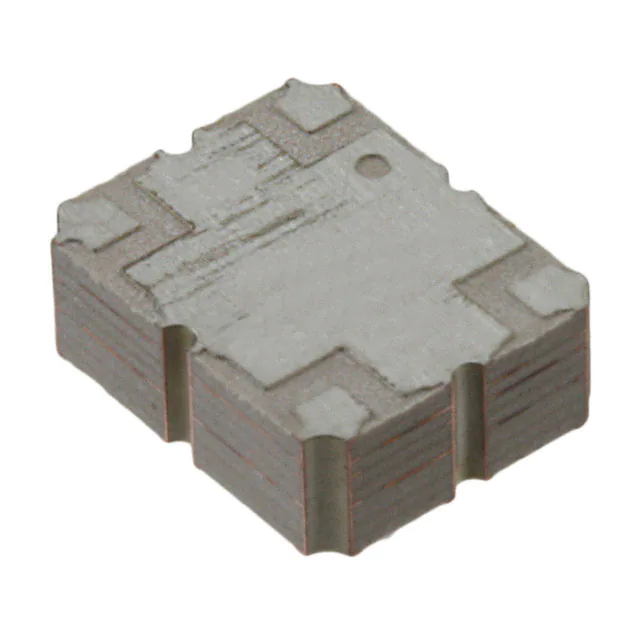

X3C09P2-30SRF DIR COUPLER 800MHZ-1GHZ 4SMD |
3,533 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 30.2dB | AMPS, CDMA, WCDMA | 0.1dB | 225W | - | 24.9dB | 4-SMD |
|
X3C19E2-20SRF DIR COUPLER 1.4GHZ-2.7GHZ SMD |
819 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.4GHz ~ 2.7GHz | 20.3dB | DCS, PCS, WCDMA | 0.1dB | 225W | - | 24.9dB | SMD |
|
|
XC0900A-10SRF DIR COUPLER 800MHZ-1GHZ SMD |
7,660 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 800MHz ~ 1GHz | 10dB | General Purpose | 0.16dB | 250W | - | - | - |
|
X3C22E1-03SRF DIR COUPLER 1.7-2.7GHZ 4SMD |
3,162 | - |
|
Datasheet | Xinger® III | Tape & Reel (TR) | Active | Standard | 1.7GHz ~ 2.7GHz | - | General Purpose | 0.15dB | 160W | 23dB | - | 4-SMD |
|
|
11303-3RF DIR COUPLER 380MHZ-520MHZ SMD |
2,025 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 380MHz ~ 520MHz | - | General Purpose | 0.35dB | 125W | 20dB | - | - |
|
|
XC0450L-03SRF DIR COUPLER 410MHZ-480MHZ SMD |
3,857 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 410MHz ~ 480MHz | - | General Purpose | 0.2dB | 200W | 23dB | - | - |
|
|
11305-10RF DIR COUPLER 1GHZ-2GHZ SMD |
2,134 | - |
|
Datasheet | Xinger® | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | 10dB | General Purpose | 0.35dB | 60W | - | 20.8dB | SMD |
|
XC1500A-20SRF DIR COUPLER 1GHZ-2GHZ SMD |
347 | - |
|
Datasheet | Xinger® II | Tape & Reel (TR) | Active | Standard | 1GHz ~ 2GHz | 20dB | General Purpose | 0.19dB | 160W | - | - | SMD |
|
MACP-010571-TR1000RMS POWER DETECTOR 2-6 GHZ |
2,732 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 2GHz ~ 6GHz | - | General Purpose | 0.26dB | 30dBm | - | 30dB | 6-TDFN (1.5x1.2) |
|
RBDC-20-63+20 DB SMT RF TAP COUPLER, DC |
427 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Standard | 0Hz ~ 6GHz | 20dB | LTE, PCS, WiMAX | 1.1dB | - | - | 20dB | - |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
