RF Directional Coupler
Browse available RF Directional Coupler part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Coupler Type | Frequency | Coupling Factor | Applications | Insertion Loss | Power - Max | Isolation | Return Loss | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM0R75-75DC8630.75-75 MHz Directional Coupler |
4,327 | - |
|
Datasheet | - | Box | Active | Standard | 750kHz ~ 75MHz | 10 ± 0.3dB | General Purpose | 0.35dB | 5W | - | - | Module |
|
PE2CP1107CPLR 10DBSMA 7.5-16GHZ 50W |
4,666 | - |
|
Datasheet | - | Bag | Active | Standard | 7.5GHz ~ 16GHz | 10dB | CDMA, GSM, LTE | 0.6dB | 50W | - | - | Module |
|
PE2CP1105CPLR 10DBSMA 7-12.4GHZ 50W |
3,246 | - |
|
Datasheet | - | Bag | Active | Standard | 7GHz ~ 12.4GHz | 10dB | CDMA, GSM, LTE | 0.2dB | 50W | - | - | Module |
|
CP20008A-200.5 GHz - 8 GHz, 20 dB Coupling |
2,660 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 20dB | General Purpose | 0.6dB | 20W | 48dB | 26dB | Module |
|
CP10008A-200.5 GHz - 8 GHz, 20 dB Coupling |
3,884 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 20dB | General Purpose | 0.6dB | 20W | 45dB | 26dB | Module |
|
CP10008A-60.5 GHz - 8 GHz, 6 dB Coupling |
3,417 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 8GHz | 6dB | General Purpose | 2dB | 50W | 29dB | 21dB | Module |
|
CP20218A-202 GHz - 18 GHz, 20 dB Coupling |
4,432 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 18GHz | 20dB | General Purpose | 0.5dB | 20W | 43dB | 26dB | Module |
|
CP20220A-102 GHz - 20 GHz, 10 dB Coupling |
3,678 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 20GHz | 10dB | General Purpose | 1.5dB | 20W | 32dB | 21dB | Module |
|
PE2CP1009Dual Directional 40 dB SMA Coupl |
1,954 | - |
|
Datasheet | - | Retail Package | Active | Standard | 100MHz ~ 500MHz | 40dB | General Purpose | 0.25dB | 200W | - | - | Module |
|
CP10012A-100.5 GHz -12.4 GHz,10 dB Coupling |
1,510 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 12.4GHz | 10dB | General Purpose | 1.6dB | 30W | 31dB | 21dB | Module |
|
CP10220A-102 GHz - 20 GHz, 10 dB Coupling |
2,911 | - |
|
Datasheet | - | Box | Active | Standard | 2GHz ~ 20GHz | 10dB | General Purpose | 1.5dB | 20W | 32dB | 21dB | Module |
|
|
WMPT-8-30dB-SPickoff Tee, 30dB Tap, 0-8GHz, S |
4,701 | - |
|
Datasheet | - | Retail Package | Active | Standard | 0Hz ~ 8GHz | 30 ± 2dB | General Purpose | 0.8dB | - | - | 22dB | - |
|
PE2CP000-30CPLR 30DBSMA 2-18GHZ 50W |
1,679 | - |
|
Datasheet | - | Bag | Active | Standard | 2GHz ~ 18GHz | 30 ± 1dB | General Purpose | 0.9dB | 50W | - | - | Module |
|
CP10120A-101 GHz - 20 GHz, 10 dB Coupling |
1,410 | - |
|
Datasheet | - | Box | Active | Standard | 1GHz ~ 20GHz | 10dB | General Purpose | 1.6dB | 20W | 33dB | 21dB | Module |
|
CP10118A-101 GHz - 18 GHz, 10 dB Coupling |
3,017 | - |
|
Datasheet | - | Box | Active | Standard | 1GHz ~ 18GHz | 10dB | General Purpose | 1.9dB | 20W | 33dB | 23dB | Module |
|
PE2CP1100CPLR 6DBSMA 4-18GHZ 50W |
3,222 | - |
|
Datasheet | - | Bag | Active | Standard | 4GHz ~ 18GHz | 6dB | CDMA, GSM, LTE | 0.5dB | 50W | - | - | Module |
|
CP20018A-100.5 GHz - 18 GHz, 10 dB Coupling |
1,571 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 18GHz | 10dB | General Purpose | 2dB | 20W | 32dB | 21dB | Module |
|
CP20018A-200.5 GHz - 18 GHz, 20 dB Coupling |
1,854 | - |
|
Datasheet | - | Box | Active | Standard | 500MHz ~ 18GHz | 20dB | General Purpose | 1.7dB | 20W | 42dB | 21dB | Module |
|
|
PE205290 Degree SMA Hybrid Coupler Fro |
2,509 | - |
|
Datasheet | - | Retail Package | Active | Standard | 2GHz ~ 4GHz | 3.1 ± 0.8dB | General Purpose | - | 50W | 22dB | - | Module |
|

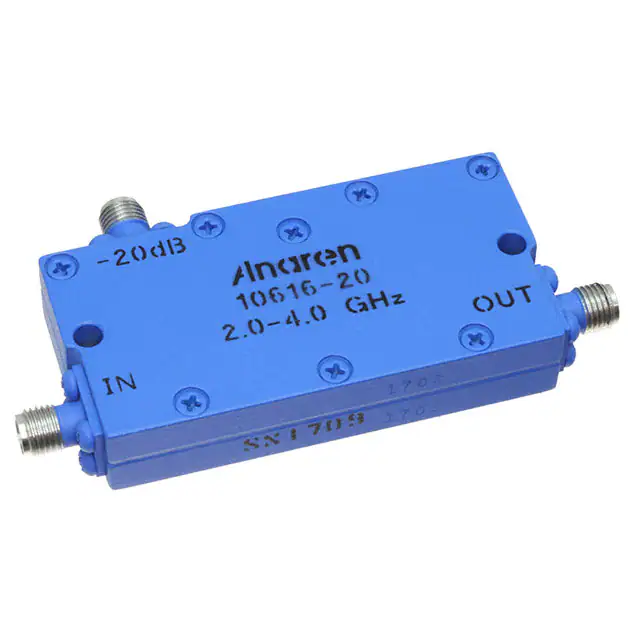

10616-20RF DIR COUPLER 2GHZ-4GHZ |
3,218 | - |
|
Datasheet | - | Tray | Active | Standard | 2GHz ~ 4GHz | 20dB | Military | 0.45dB | 100W | - | 19dB | - |
RF Directional Coupler FAQ
Common questions about selecting, comparing and sourcing RF Directional Coupler components through Winsun (HK) Electronics.
What should I check when selecting RF Directional Coupler components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Directional Coupler part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Directional Coupler parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Directional Coupler components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
