RF Mixers
Browse available RF Mixers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AD831AP-REEL7IC MIXER 500MHZ DWN CONV 20PLCC |
4,468 | - |
|
Datasheet | AD831 | 20-LCC (J-Lead) | Tape & Reel (TR) | Obsolete | HF, VHF | 500MHz | 1 | 0dB | 14dB | Down Converter | 125mA | 4.5V ~ 5.5V | Surface Mount | 20-PLCC (9x9) |
|
ATR0787-6CPIC TRANSMIXER FOR 2100-2500MHZ |
2,704 | - |
|
Datasheet | ATR0787 | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Cellular, ISM | 2.1GHz ~ 2.5GHz | 1 | - | - | - | - | - | Surface Mount | 16-SSOP |
|
U2510B-MIC MIXER AUDIO AMP AM/FM 28SDIP |
3,117 | - |
|
Datasheet | U25 | 28-SDIP (0.400", 10.16mm) | Tube | Obsolete | AM, FM | - | 1 | - | - | - | - | - | Through Hole | 28-SDIP |
|
U2795B-MFPG3IC MIXER 2.5GHZ DOUBLE BAL 8SO |
2,474 | - |
|
Datasheet | U2795 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | DECT, PCN, WLAN | 2.5GHz | 1 | 9dB | 10dB | - | 13mA | 2.7V ~ 5.5V | Surface Mount | 8-SO |
|
HFA3101BIC MIXER 0HZ-10GHZ 8SOIC |
2,018 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | - | 0Hz ~ 10GHz | 1 | - | 1.7dB | - | - | - | Surface Mount | 8-SOIC |
|
SA602AN/01,112IC MIXER 500MHZ UP CONVRT 8DIP |
1,667 | - |
|
Datasheet | SA602 | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | Cellular, HF, UHF, VHF | 500MHz | 1 | 17dB | 5dB | Up Converter | 2.4mA | 4.5V ~ 8V | Through Hole | 8-DIP |
|
SA612AD/01,112IC MIXER 500MHZ UP CONVRT 8SO |
1,284 | - |
|
Datasheet | SA612 | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Cellular, HF, VHF | 500MHz | 1 | 17dB | 5dB | Up Converter | 2.4mA | 4.5V ~ 8V | Surface Mount | 8-SO |
|
SA615D/01,112IC MIXER 500MHZ UP CONVRT 20SO |
4,418 | - |
|
Datasheet | SA615 | 20-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Cellular, ASK, FSK, UHF, VHF | 500MHz | 3 | 13dB | 5dB | Up Converter | 7.4mA | 4.5V ~ 8V | Surface Mount | 20-SO |
|
SA616DK/01,118IC MIXR 150MHZ RSSI EQUIP 20SSOP |
1,240 | - |
|
Datasheet | SA616 | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Cellular, ASK, FSK | 150MHz | 2 | 17dB | 6.8dB | RSSI Equipped | 3.5mA | 2.7V ~ 7V | Surface Mount | 20-SSOP |
|
|
SA606DK/01,118IC MIXER 150MHZ UP CONVRT 20SSOP |
3,948 | - |
|
Datasheet | SA606 | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Cellular, ASK, FSK, VHF | 150MHz | 2 | 17dB | 6.2dB | Up Converter | 3.5mA | 2.7V ~ 7V | Surface Mount | 20-SSOP |
|

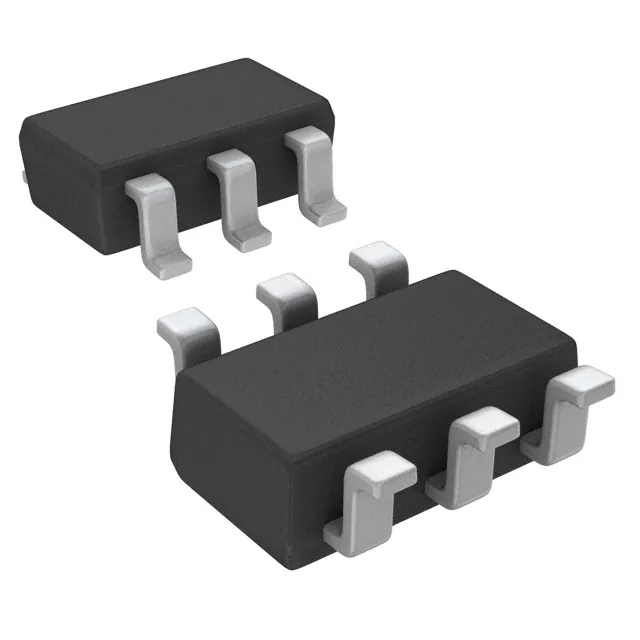

UPC2756TB-AIC MIXER 100MHZ-2GHZ DWN 6SMINI |
3,019 | - |
|
Datasheet | UPB2756TB | SOT-23-6 Thin, TSOT-23-6 | Bulk | Obsolete | - | 100MHz ~ 2GHz | 1 | 14dB | 13dB | Down Converter | 8mA | 2.7V ~ 3.3V | Surface Mount | 6-SuperMiniMold |
|
UPC2757TB-AIC MIXER 100MHZ-2GHZ DWN 6SMINI |
2,251 | - |
|
Datasheet | UPC2757TB | 6-VSSOP, SC-88, SOT-363 | Bulk | Obsolete | Cellular | 100MHz ~ 2GHz | 1 | 15dB | 10dB | Down Converter | 7.7mA | 2.7V ~ 3.3V | Surface Mount | 6-SuperMiniMold |
|
|
UPC2758TB-AIC MIXER 100MHZ-2GHZ DWN 6SMINI |
1,199 | - |
|
Datasheet | UPC2758TB | 6-VSSOP, SC-88, SOT-363 | Bulk | Obsolete | Cellular | 100MHz ~ 2GHz | 1 | 19dB | 9dB | Down Converter | 14.8mA | 2.7V ~ 3.3V | Surface Mount | 6-SuperMiniMold |
|
|
UPC8172TB-AIC MIXER 50-400MHZ UP CONV 6SMD |
2,243 | - |
|
Datasheet | UPC8172TB | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | Cellular, DCS, PCS, W-CDMA, WLAN | 50MHz ~ 400MHz | 1 | 9.5dB | 9.5dB | Up Converter | 13mA | 2.7V ~ 3.3V | Surface Mount | 6-SuperMiniMold |
|
|
SA601DK,118IC MIXER LNA 1GHZ 20SSOP |
2,619 | - |
|
Datasheet | - | 20-LSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | - | 1GHz | 1 | 11.5dB | 1.6dB | - | 7.4mA | 2.7V ~ 5.5V | Surface Mount | 20-SSOP |
|
HFA3101B96IC MIXER 0HZ-10GHZ 8SOIC |
1,367 | - |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | - | 0Hz ~ 10GHz | 1 | - | 1.7dB | - | - | - | Surface Mount | 8-SOIC |
|
UPB1007K-AIC MIXR 1575.42MHZ DWNCONV 36QFN |
1,976 | - |
|
Datasheet | - | 36-VFQFN | Bulk | Obsolete | GPS | 1575.42MHz | 2 | 15.5dB | 3.2dB | Down Converter | 35mA | 2.7V ~ 3.3V | Surface Mount | 36-QFN (6x6) |
|
|
UPB1007K-E1-AIC MIXR 1575.42MHZ DWNCONV 36QFN |
4,780 | - |
|
Datasheet | - | 36-VFQFN | Tape & Reel (TR) | Obsolete | GPS | 1575.42MHz | 2 | 15.5dB | 3.2dB | Down Converter | 35mA | 2.7V ~ 3.3V | Surface Mount | 36-QFN (6x6) |
|
|
UPC2798GR-AIC MIXR 30-250MHZ DWNCONV 20SSOP |
4,971 | - |
|
Datasheet | UPC2798GR | 20-SSOP (0.173", 4.40mm Width) | Bulk | Obsolete | QAM | 30MHz ~ 250MHz | 1 | 74dB | 9dB | Down Converter | 45mA | 4.5V ~ 5.5V | Surface Mount | 20-SSOP |
|
|
UPC2798GR-E1-AIC MIXR 30-250MHZ DWNCONV 20SSOP |
1,519 | - |
|
Datasheet | UPC2798GR | 20-SSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | QAM | 30MHz ~ 250MHz | 1 | 74dB | 9dB | Down Converter | 45mA | 4.5V ~ 5.5V | Surface Mount | 20-SSOP |
RF Mixers FAQ
Common questions about selecting, comparing and sourcing RF Mixers components through Winsun (HK) Electronics.
What should I check when selecting RF Mixers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Mixers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Mixers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Mixers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
