RF Mixers
Browse available RF Mixers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Frequency | Number of Mixers | Gain | Noise Figure | Secondary Attributes | Current - Supply | Voltage - Supply | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC422MS8EIC MIXER DBL-BAL LO AMP 8-MSOP |
3,349 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Obsolete | General Purpose | 1.2GHz ~ 2.6GHz | 1 | - | 8dB | Up/Down Converter | 30mA | 3V | Surface Mount | 8-MSOP |
|
|
HMC423MS8EIC MIXER DBL-BAL LO AMP 8-MSOP |
2,343 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Strip | Obsolete | CATV | 600MHz ~ 1.3GHz | 1 | - | 8dB | Up/Down Converter | 15mA | 3V | Surface Mount | 8-MSOP |
|
|
HMC485MS8GEIC MMIC MIXER HI IP3 8-MSOP |
4,668 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Strip | Obsolete | W-CDMA, CDMA, GSM, UMTS | 1.7GHz ~ 2.4GHz | 1 | - | 9.8dB | Up/Down Converter | 45mA | 5V | Surface Mount | 8-MSOP-EP |
|
|
HMC488MS8GETRIC MMIC MIXER HI IP3 8-MSOP |
3,311 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 4GHz ~ 7GHz | 1 | - | 7dB | Up/Down Converter | 46mA | 4.75V ~ 5.25V | Surface Mount | 8-MSOP-EP |
|
HMC552LP4EIC MIXER DBL-BAL HI IP3 24SMD |
1,554 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | WiMAX / WiBro | 1.6GHz ~ 3GHz | 1 | - | 8dB | Up/Down Converter | 62mA | 5V | Surface Mount | 24-QFN (4x4) |
|
|
HMC615LP4EIC MMIC MIXER HIGH IP3 24-QFN |
4,838 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | WiMAX / WiBro | 2.3GHz ~ 4GHz | 1 | - | 10dB | Up/Down Converter | 65mA | 5V | Surface Mount | 24-QFN (4x4) |
|
|
HMC621LP4EIC RFIC DOWNCONVERTER 24-QFN |
2,527 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | LTE, WiMax | 900MHz ~ 1.6GHz | 1 | 27dB | 4.5dB | Down Converter | 250mA | 5V | Surface Mount | 24-QFN (4x4) |
|
|
HMC622LP4EIC MIXER DBL-BAL W/AMP 24-QFN |
1,124 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | WiMAX / WiBro | 1.8GHz ~ 3.9GHz | 1 | 9dB | 10dB | Up/Down Converter | 175mA | 5V | Surface Mount | 24-QFN (4x4) |
|
|
HMC665LP4EIC MMIC MIXER LO/IF AMP 24-QFN |
1,036 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | LTE, WiMax | 700MHz ~ 1.2GHz | 1 | 10dB | 10dB | Up/Down Converter | 150mA | 5V | Surface Mount | 24-QFN (4x4) |
|
|
HMC688LP4ETRIC MMIC MIXER BICMOS 24-QFN |
4,811 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | LTE, WiMax | 2GHz ~ 2.7GHz | 1 | - | 8dB | Up/Down Converter | 140mA | 4.75V ~ 5.25V | Surface Mount | 24-QFN (4x4) |
|
|
HMC951LP4EIC MMIC IQ DOWNCONVERTER 24-QFN |
3,945 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Strip | Obsolete | General Purpose | 5.6GHz ~ 8.6GHz | 1 | 13dB | 2dB | Down Converter | 55mA | 5V | Surface Mount | 24-QFN (4x4) |
|

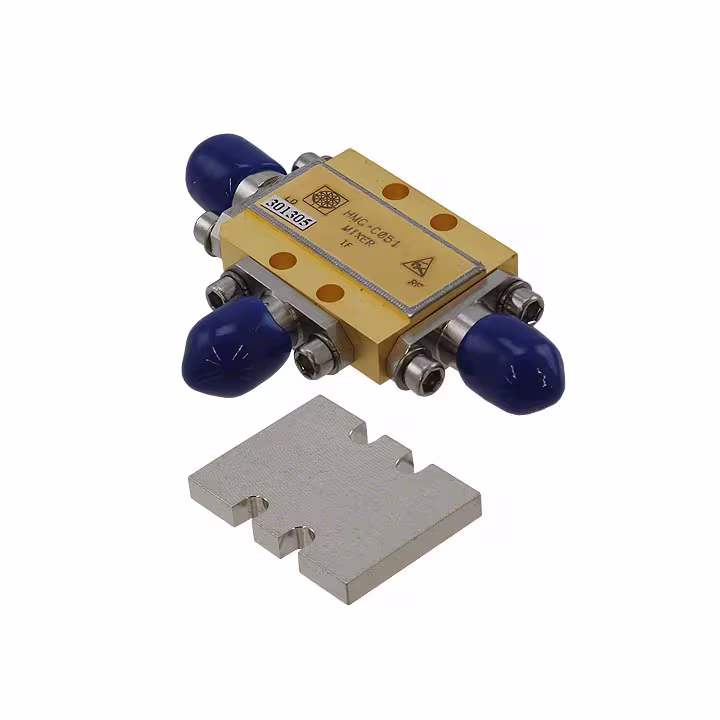

HMC-C051MODULE MMIC BROADBAND MIXER |
4,293 | - |
|
Datasheet | - | Module, SMA Connectors | Bulk | Obsolete | General Purpose | 11GHz ~ 20GHz | 1 | - | 6dB ~ 7.5dB | SMA Connectors | - | - | Connector Mount | Module |
|
BGX7220HN/1,518IC DOWN MIXER DUAL RCVR 36HVQFN |
4,632 | - |
|
Datasheet | - | 36-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 700MHz ~ 950MHz | 2 | 8.2dB | 9.5dB | Down Converter | 310mA | 4.75V ~ 5.25V | Surface Mount | 36-HVQFN (6x6) |
|
ADRF6620ACPZ-R7IC MIXER .7-2700MHZ 48LFCSP |
1,279 | - |
|
Datasheet | - | 48-WFQFN Exposed Pad, CSP | Tape & Reel (TR) | Obsolete | General Purpose | 700MHz ~ 2.7GHz | 1 | 15dB | - | Integrated PLL and VCO | - | 4.75V ~ 5.25V | Surface Mount | 48-LFCSP-WQ (7x7) |
|
HMC773LC3BTRIC MIXER 6-26GHZ DUAL 12-QFN |
3,502 | - |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 6GHz ~ 26GHz | 1 | - | - | Up/Down Converter | - | - | Surface Mount | 12-CSMT (3x3) |
|
HMC663LC3TRIC MMIC MIXER LO/IF AMP 16-QFN |
4,674 | - |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 6GHz ~ 12GHz | 1 | - | 10dB | Up/Down Converter | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC554LC3BGAAS MMIC FUNDAMENTAL |
3,862 | - |
|
Datasheet | - | 12-VFCQFN Exposed Pad | Bag | Obsolete | - | - | - | - | - | - | - | - | Surface Mount | 12-CSMT (3x3) |
|
HMC525LC4TRIC MMIC IQ MIXER 4-8.5GHZ 24-QFN |
4,292 | - |
|
Datasheet | - | 24-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | 4GHz ~ 8.5GHz | 1 | - | - | - | - | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC787LC3BTRIC MIXER GAAS 3-10GHZ 12-QFN |
4,871 | - |
|
Datasheet | - | 12-CLCC Exposed Pad | Tape & Reel (TR) | Obsolete | LTE, WiMax | 3GHz ~ 10GHz | 1 | - | 9dB | Up/Down Converter | - | - | Surface Mount | 12-CLCC (3x3) |
|
TFF1012HN/N1,135IC DOWNCONVERTER 16DHVQFN |
2,480 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Ku-Band | 10.7GHz ~ 12.75GHz | 1 | 30dB | 9dB | - | 52mA | 5V | Surface Mount | 16-DHVQFN (2.5x3.5) |
RF Mixers FAQ
Common questions about selecting, comparing and sourcing RF Mixers components through Winsun (HK) Electronics.
What should I check when selecting RF Mixers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Mixers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Mixers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Mixers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
