RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDPO-33-53+LTCC DIPLEXER, DC-3000/5000-5750 |
3,927 | - |
|
Datasheet | - | 4-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 0Hz ~ 3GHz / 5GHz ~ 5.75GHz | - | - | 15.0dB / 11.0dB | - | - | Surface Mount |
|
MAFL-011057RF DIPLEXER MODULE |
926 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
|
MAFL-011081RF DIPLEXER 204/258MHZ SMD |
184 | - |
|
Datasheet | - | 20-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 5MHz ~ 204MHz / 258MHz ~ 1.218GHz | - | - | 19.0dB / 18.0dB | - | - | Surface Mount |
|
|
MAFL-011056RF DIPLEXER MODULE |
173 | - |
|
Datasheet | - | Module | Tape & Reel (TR) | Active | Diplexer | - | - | - | - | - | - | Surface Mount |
|
AM1542-1643SD3581542-1643.5 MHz SAW Diplexer |
795 | - |
|
Datasheet | - | 10-SMD Module | Tape & Reel (TR) | Active | Duplexer | 1.525GHz ~ 1.559GHz / 1.6265GHz ~ 1.6605GHz | 43.00dB / - | 43.00dB / - | - | - | - | Surface Mount |
|
|
AM455-465SD329455/465 MHz Saw Duplexer |
830 | - |
|
Datasheet | - | 12-SMD Module | Tape & Reel (TR) | Active | Duplexer | 452.2MHz ~ 457.5MHz / 462.2MHz ~ 467.5MHz | 37.00dB / 55.00dB | 43.00dB / 52.00dB | - | - | - | Surface Mount |
|
|
AM1542-1643D11151525-1559.5 / 1626-1660.5 MHZ CE |
728 | - |
|
Datasheet | - | 3-SMD Module | Box | Active | Duplexer | 1.525GHz ~ 1.5595GHz / 1.626GHz ~ 1.6605GHz | - | - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
AE2075-2250CD12022025-2125 MHZ/ 2200-2300 MHZ CER |
100 | - |
|
Datasheet | - | 7-SMD Module | Box | Active | Duplexer | 2.025GHz ~ 2.125GHz / 2.2GHz ~ 2.3GHz | - | - | 14.0dB / 14.0dB | - | - | Surface Mount |
|
AM1600D803-C1600 MHZ CONNECTORIZED CERAMIC D |
4,069 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.6265GHz ~ 1.6605GHz / 1.525GHz ~ 1.559GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|
|
AE1732-2132DB5295-O1710-1755 MHZ / 2110-2155 MHZ LT |
100 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.71GHz ~ 1.755GHz / 2.11GHz ~ 2.155GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
AM1880-1960D268-C1880 / 1960 MHZ CONNECTORIZED CE |
4,162 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.805GHz ~ 1.91GHz / 1.93GHz ~ 1.99GHz | - | - | - | - | - | Chassis Mount |
|

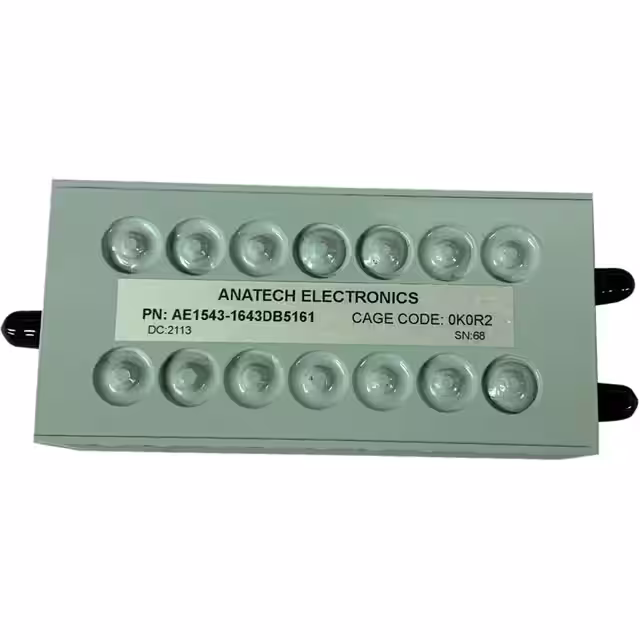

AE1543-1643DB51611526-1560 MHZ / 1625-1662 MHZ CA |
1,384 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Duplexer | 1.526GHz ~ 1.56GHz / 1.625GHz ~ 1.662GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD2535-2655D4672535 MHZ / 2655 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 2.5GHz ~ 2.57GHz / 2.62GHz ~ 2.69GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

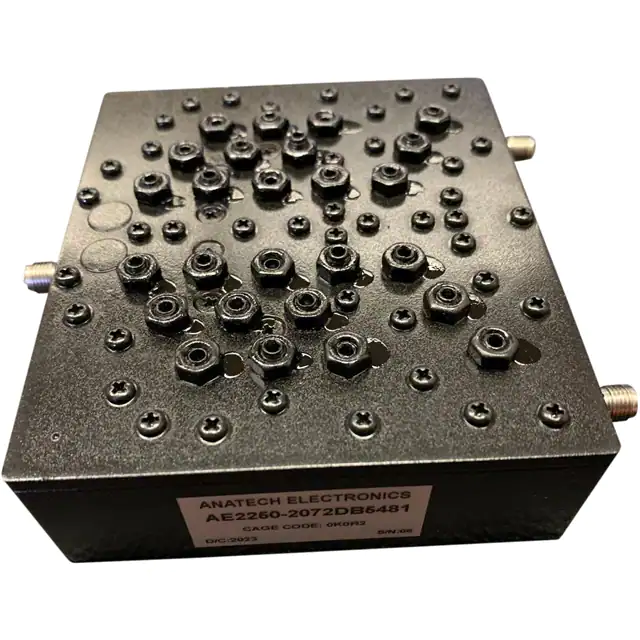

AE2250-2072DB5481S-BAND CAVITY DIPLEXER |
1,483 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 2.2GHz ~ 2.3GHz / 2.025GHz ~ 2.12GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|

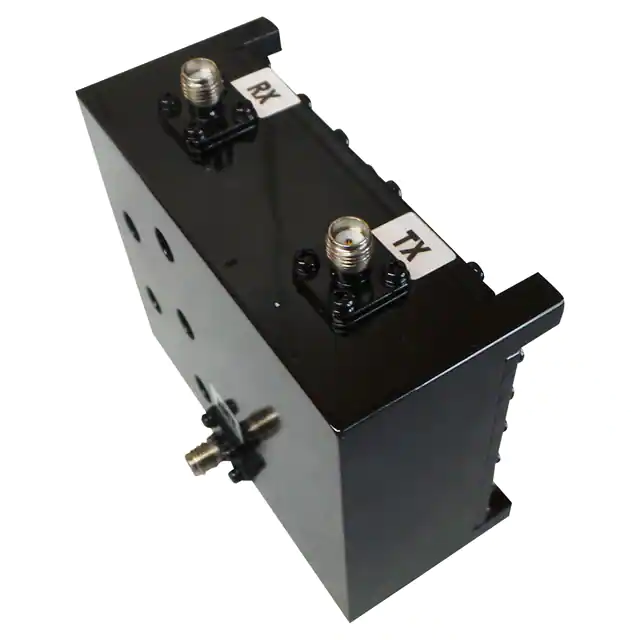

AE1800-2350DB54771800 MHZ / 2350 MHZ CAVITY DUPLE |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.75GHz ~ 1.85GHz / 2.2GHz ~ 2.5GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|

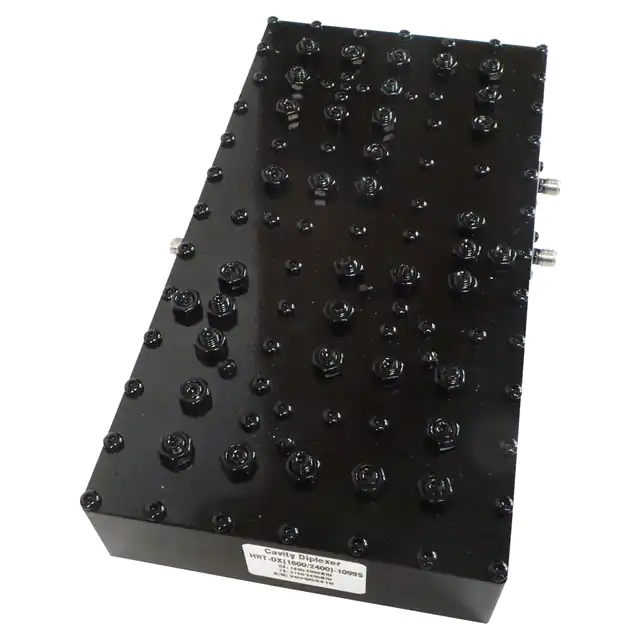

AE1800-2275DB54911800 MHZ / 2275 MHZ CAVITY DUPLE |
2,543 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 1.6GHz ~ 2GHz / 2.15GHz ~ 2.4GHz | - | - | 18.0dB / 18.0dB | - | - | Chassis Mount |
|
|
AE1600-2262-4698TR1276L-BAND/ C-BAND / S-BAND TRIPLEXE |
100 | - |
|
Datasheet | - | Module | Box | Active | Triplexer | 1.35GHz ~ 1.85GHz / 4.4GHz ~ 4.99GHz | - | - | - | - | - | Chassis Mount |
|
AE14660-15250DB531014660 MHZ / 15250 MHZ CAVITY DUP |
100 | - |
|
Datasheet | - | Module | Box | Active | Duplexer | 14.4GHz ~ 14.92GHz / 15.15GHz ~ 15.35GHz | - | - | 10.0dB / 10.0dB | - | - | Chassis Mount |
|

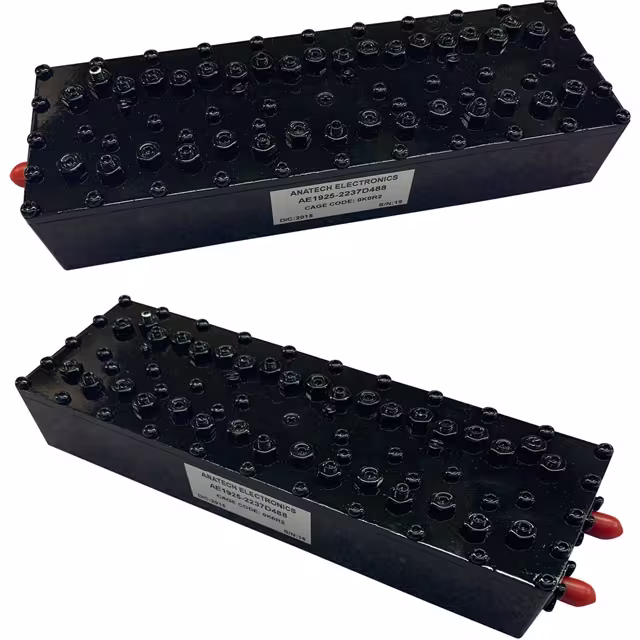

AE1925-2237D4881750-2100 MHZ / 2200-2275 MHZ CA |
2,220 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | Diplexer | 1.75GHz ~ 2.1GHz / 2.2GHz ~ 2.275GHz | - | - | 15.0dB / 15.0dB | - | - | Chassis Mount |
|
|
AD412-422D224410-415 MHZ 420-425 MHZ CAVITY D |
100 | - |
|
Datasheet | - | Module | Box | Active | Diplexer | 410MHz ~ 415MHz / 420MHz ~ 425MHz | - | - | 20.0dB / 20.0dB | - | - | Chassis Mount |
