RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

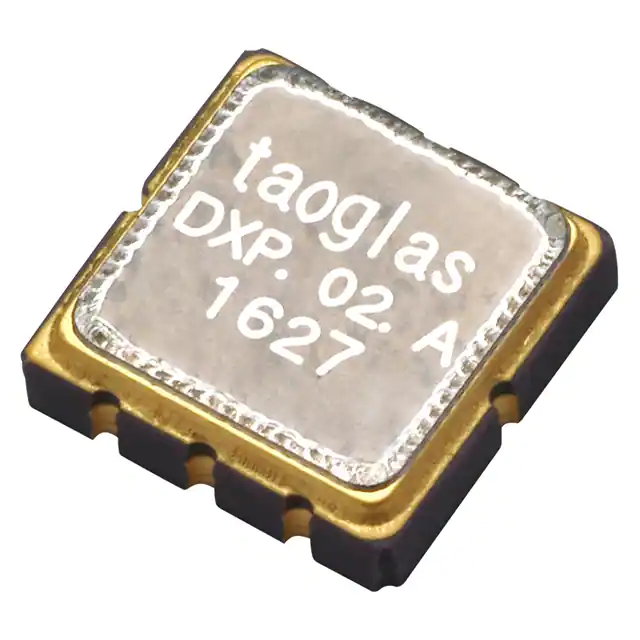

DXP.02.ARF DIPLEXER 1.222/1.575GHZ 8SMD |
824 | - |
|
Datasheet | - | 8-SMD, No Lead | Tape & Reel (TR) | Active | Diplexer | 1.196GHz ~ 1.248GHz / 1.574GHz ~ 1.576GHz | 27.00dB / 33.00dB | 20.00dB / 28.00dB | 8.0dB / 13.0dB | - | - | Surface Mount |
|
DPX1608LL65R2455ADIPLEXER SMD 2.4G/5G |
18,031 | - |
|
Datasheet | 1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 6GHz | 32.00dB / - | 27.00dB / - | 12.0dB / 12.0dB | - | - | Surface Mount |
|
|
DPX1608LL83R2455ADIPLEXER SMD 2.4G/5G |
6,363 | - |
|
Datasheet | 1608 | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 25.00dB / - | 32.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX105850DT-6019A1RF DIPLEXER 2.45GHZ/5.5GHZ 0402 |
9,180 | - |
|
Datasheet | DPX | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 21.00dB / - | 14.00dB / - | - | - | - | Surface Mount |
|
DPX165850DT-8086A2MULTILAYER DIPLEXER FOR LTE |
6,620 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.69GHz / 3.3GHz ~ 5.85GHz | 20.00dB / 23.80db | 18.00dB / 23.40db | - | - | - | Surface Mount |
|
DPX105850DT-6018A1MULTILAYER DIPLEXER FOR 2400 - 2 |
34,995 | - |
|
Datasheet | DPX | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz | 17.00dB / 33.00dB | 25.00dB / 32.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX105950DT-6012A2MULTILAYER DIPLEXER FOR LTE/5GHZ |
10,350 | - |
|
Datasheet | - | 0402 (1005 Metric), 4 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 23.00dB / 29.00dB | 32.00dB / 41.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX202690DT-4084A5MULTILAYER DPX FOR UMTS/LTE/5G |
4,607 | - |
|
Datasheet | DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.71GHz ~ 2.2GHz / 2.496GHz ~ 3.8GHz | 12.00dB / 22.30dB | 15.00dB / - | 10.0dB / 10.0dB | - | - | Surface Mount |
|
|
DPX205850DT-4054B5MULTILAYER DPX FOR WLAN/GPS/5G |
3,733 | - |
|
Datasheet | DPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.17GHz / 2.4GHz ~ 5.85GHz | 25.00dB / 36.00dB | 12.00dB / 23.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX255000DT-5089A1MULTILAYER DIPLEXER FOR LTE |
26,896 | - |
|
Datasheet | - | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 1.4479GHz ~ 2.69GHz / 3.3GHz ~ 5GHz | 25.00dB / 29.90dB | 30.00dB / 42.00dB | 10.0dB / 12.0dB | - | - | Surface Mount |
|
DPX162500DT-8028A1RF DIPLEXER 1.575/2.45GHZ 0603 |
20,497 | - |
|
Datasheet | DPX | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Diplexer | 1.572GHz ~ 1.578GHz / 2.4GHz ~ 2.5GHz | 13.00dB / 22.40dB | 22.00dB / 36.60dB | 14.0dB / 14.0dB | - | - | Surface Mount |
|
DPX255925DT-5045F3MULTILAYER DIPLEXER FOR LTE |
14,252 | - |
|
Datasheet | - | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 2.69GHz / 3.3GHz ~ 5.925GHz | 28.00dB / 32.00dB | 30.00dB / 33.00dB | - | - | - | Surface Mount |
|
DPX165850DT-8085D3MULTILAYER DIPLEXER FOR 2.4/5GHZ |
7,612 | - |
|
Datasheet | - | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 2.69GHz / 5.15GHz ~ 5.85GHz | 35.00dB / 41.00dB | 40.00dB / 43.00dB | - | - | - | Surface Mount |
|
DPX252690DT-5072A1MULTILAYER DIPLEXER FOR LTE |
2,514 | - |
|
Datasheet | - | 1008 (2520 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 960MHz / 1.452GHz ~ 2.69GHz | 30.00dB / 39.00dB | 28.00dB / 38.00dB | 16.0dB / 15.0dB | - | - | Surface Mount |
|
DPX165950DT-8145A1MULTILAYER DIPLEXER FOR 2400 - 2 |
7,994 | - |
|
Datasheet | DPX | 0603 (1608 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 30.00dB / 37.00dB | 15.00dB / 19.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
TPX205950MT-7010A4MULTILAYER TPX FOR WLAN/GPS/5G |
2,984 | - |
|
Datasheet | TPX | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Triplexer | 617MHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | 15.00dB / 23.00dB | 20.00dB / 29.00dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
|
DPX255925DT-5079B1MULTILAYER DPX FOR GSM/UMTS/5G |
5,911 | - |
|
Datasheet | DPX | 1008 (2520 Metric), 9 PC Pad | Tape & Reel (TR) | Active | Diplexer | 617MHz ~ 4.2GHz / 5.15GHz ~ 5.925GHz | 20.00dB / 30.10dB | 35.00dB / 37.80dB | 9.54dB / 9.54dB | - | - | Surface Mount |
|
TPX205950MT-7052C1MULTILAYER TPX FOR WLAN/BT/GPS |
3,827 | - |
|
Datasheet | TPX | 0805 (2012 Metric), 8 PC Pad | Tape & Reel (TR) | Active | Triplexer | 1.559GHz ~ 1.606GHz / 4.9GHz ~ 5.95GHz | 25.00dB / 29.00dB | 33.00dB / 41.00dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX205925DT-4226A2MULTILAYER DIPLEXER FOR LTE |
2,650 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 3.3GHz ~ 3.8GHz / 4.4GHz ~ 5.925GHz | 15.00db / 18.00dB | 15.00dB / 17.70dB | 10.0dB / 10.0dB | - | - | Surface Mount |
|
DPX201880DT-4061A2MULTILAYER DIPLEXER FOR LTE |
1,122 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 698MHz ~ 1.511GHz / 1.71GHz ~ 2.7GHz | 10.00dB / 15.00dB | 10.00dB / 15.00dB | - | - | - | Surface Mount |
RF Multiplexers FAQ
Common questions about selecting, comparing and sourcing RF Multiplexers components through Winsun (HK) Electronics.
What should I check when selecting RF Multiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Multiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Multiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Multiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
