RF Multiplexers
Browse available RF Multiplexers part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Frequency Bands (Low / High) | Low Band Attenuation (min / max dB) | High Band Attenuation (min / max dB) | Return Loss (Low Band / High Band) | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSDCSR8N2G15K2T2-AZRF SAW DUPLEXER LTE BAND 66 |
4,859 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 57.00dB | - / 54.00dB | - | - | - | Surface Mount |
|
FAR-D5NF-942M50-P1GZ-ZRF DUPLEXER 9SMD NO LEAD |
1,857 | - |
|
Datasheet | D5 | 9-SMD, No Lead | Tape & Reel (TR) | Obsolete | Duplexer | - | - | - | - | - | - | Surface Mount |
|
DPX315950DT-5006C1RF DIPLEXER 2.45/5.475GHZ 1206 |
1,708 | - |
|
Datasheet | DPX | 1206 (3216 Metric), 8 Leads | Tape & Reel (TR) | Obsolete | Diplexer | 2.4GHz ~ 2.5GHz / 5GHz ~ 5.95GHz | 21.00dB / - | 21.00dB / - | 10.0dB / 9.0dB | - | - | Surface Mount |
|
|
DPX315950DT-5005B2RF DIPLEXER 2.4GHZ/5.425GHZ 1206 |
1,971 | - |
|
Datasheet | DPX | 1206 (3216 Metric), 8 PC Pad | Tape & Reel (TR) | Obsolete | Diplexer | 2.3GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | 18.00dB / - | 30.00dB / - | 15.0dB / 13.0dB | - | - | Surface Mount |
|
|
DPGE-252-492R+DPLXR, 2400-2500/4900-5950 MHZ |
3,732 | - |
|
Datasheet | - | 0805 (2012 Metric), 6 PC Pad | Tape & Reel (TR) | Active | Diplexer | 2.4GHz ~ 2.5GHz / 4.9GHz ~ 5.95GHz | - | - | - | - | - | Surface Mount |
|
|
D5PE876M5P3UZ-ZRF DUPLEXER 2016 CSSD BAND 26 BL |
3,745 | - |
|
Datasheet | D5 | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 700MHz ~ 1GHz / - | - / 60.00dB | - / 49.00dB | - | - | - | Surface Mount |
|
|
D6PE1G503P3KW-ZRF DUPLEX 2016 CSSD BAND 21 BAL |
2,532 | - |
|
Datasheet | D6 | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1GHz ~ 5GHz / - | - / 55.00dB | - / 56.00dB | - | - | - | Surface Mount |
|
|
FSDCSQ8H1G96K2B1-AZRF DUPLEXER 8SMD NO LEAD |
4,425 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 54.00dB | - / 54.00dB | - | - | - | Surface Mount |
|
|
FAR-D5NG-881M50-M11Z-ZRF DUPLEXER 9SMD NO LEAD |
1,528 | - |
|
Datasheet | D5 | 9-SMD, No Lead | Tape & Reel (TR) | Not For New Designs | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
FSDCSR8H876MK2P6-AZRF DUPLEXER 8SMD NO LEAD |
1,365 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 60.00dB | - / 57.00dB | - | - | - | Surface Mount |
|
|
FSDCSR8N2G65K2F1-AZLTE BAND 7, SAW FILTER, 1.8X1.4X |
1,240 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 60.00dB | - / 61.00dB | - | - | - | Surface Mount |
|
|
D6NH1G960M1Z6-ZRF DUPLEXER 2520 CSSD BAND 2 SE |
1,109 | - |
|
Datasheet | D6 | - | Tape & Reel (TR) | Not For New Designs | Duplexer | 1GHz ~ 5GHz / - | - | - | - | - | - | - |
|
|
FSDCSR8T737MK2H2-AZRF DUPLEXER 707.5/737.5MHZ 8SMD |
4,825 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 63.00dB | - / 58.00dB | - | - | - | Surface Mount |
|
|
FSDCSR8H1G96K2B2-AZRF DUPLEXER 1GHZ-5GHZ 8SMD |
3,800 | - |
|
Datasheet | FSDC | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - / 55.00dB | - / 55.00dB | - | - | - | Surface Mount |
|
|
FSDCSRZT876MP3UZ-AZRF DUPLEXER 2016 CSSD BAND 26 BL |
3,523 | - |
|
Datasheet | FSDC | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - | - | - | - | - | Surface Mount |
|
|
FSDCSRZT1G50P3KW-AZRF DUPLEX 2016 CSSD BAND 21 BAL |
1,216 | - |
|
Datasheet | FSDC | 9-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | - | - | - | - | - | - | Surface Mount |
|
RSD-897.500-942.500-1814-TR-NS1RF DUPLEXER 897.5/942.5MHZ 8SMD |
1,277 | - |
|
Datasheet | RSD | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 880MHz ~ 915MHz / 925MHz ~ 960MHz | 45.00dB / 58.00dB | 50.00dB / 60.00dB | 1.7dB / 2.0dB | - | - | Surface Mount |
|
|
RSD-1950.000-2140.000-1612-TRRF DUPLEXER 1.95/2.14GHZ 8SMD |
3,272 | - |
|
Datasheet | RSD | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | 44.00dB / 54.00dB | 50.00dB / 56.00dB | 1.7dB / 2.0dB | - | - | Surface Mount |
|

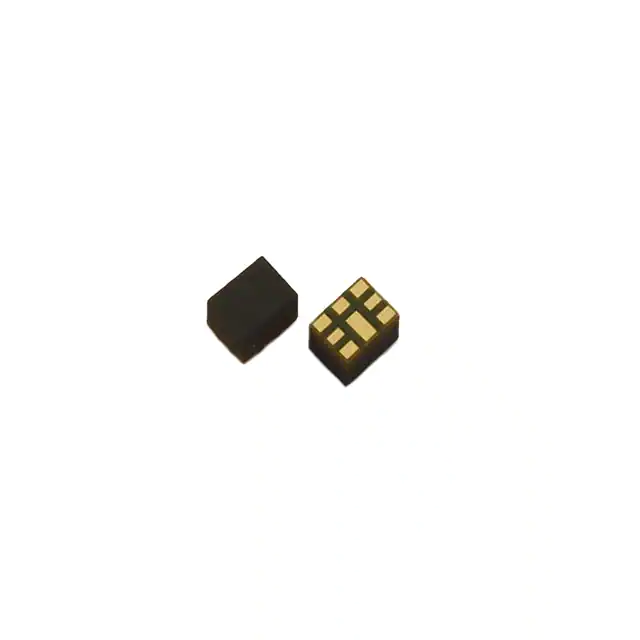

RSD-836.500-881.500-1612-TRRF DUPLEXER 836.5/881.5MHZ 8SMD |
3,531 | - |
|
Datasheet | RSD | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 824MHz ~ 849MHz / 869MHz ~ 894MHz | 45.00dB / 54.00dB | 50.00dB / 58.00dB | 1.8dB / 1.8dB | - | - | Surface Mount |
|
|
RSD-1950.000-2140.000-1814-TR-NS2RF DUPLEXER 1.95/2.14GHZ 8SMD |
1,648 | - |
|
Datasheet | RSD | 8-SMD, No Lead | Tape & Reel (TR) | Active | Duplexer | 1.92GHz ~ 1.98GHz / 2.11GHz ~ 2.17GHz | 44.00dB / 54.00dB | 50.00dB / 56.00dB | 1.7dB / 2.0dB | - | - | Surface Mount |
RF Multiplexers FAQ
Common questions about selecting, comparing and sourcing RF Multiplexers components through Winsun (HK) Electronics.
What should I check when selecting RF Multiplexers components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Multiplexers part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Multiplexers parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Multiplexers components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
