RF Power Dividers/Splitters

Browse available RF Power Dividers/Splitters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.

For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.

Compare Part Numbers Review available models and manufacturers

Datasheets & Specifications Access technical references quickly

RFQ & BOM Support Send quantities for sourcing and quotation

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Series	Packaging	Product Status	Insertion Loss	Frequency	Specifications	Size / Dimension
PE20DV1210 4 way N Power Divider from 10 MH Pasternack	1,654	-	RFQ	Datasheet	Module	-	Retail Package	Active	1.2dB	10 MHz ~ 500 MHz	Isolation (Min) 20dB, 2° Imbalance (Max), 1.4 VSWR (Max)	4.094" L x 1.378" W x 0.807" H (104.00mm x 35.00mm x 20.50mm)
PE20DV1209 4 way N Power Divider from 300 M Pasternack	4,756	-	RFQ	Datasheet	Module	-	Retail Package	Active	0.5dB	300 MHz ~ 500 MHz	Isolation (Min) 20dB, 4° Imbalance (Max), 1.35 VSWR (Max)	4.567" L x 2.835" W x 0.807" H (116.00mm x 72.00mm x 20.50mm)

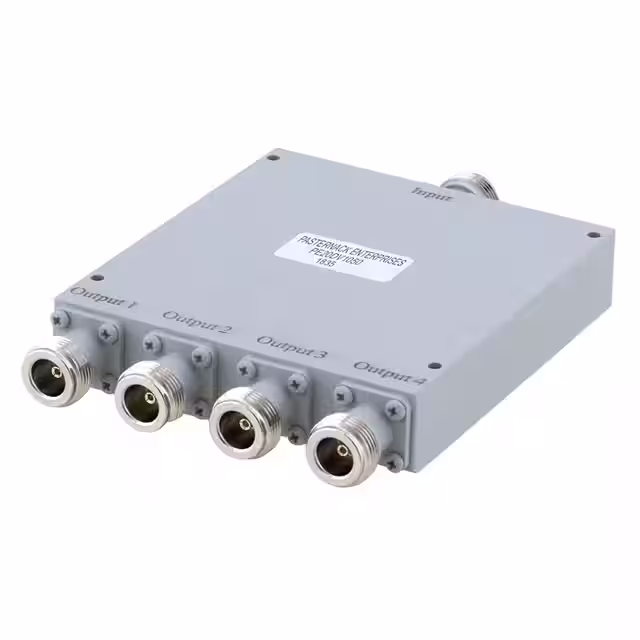

PE20DV1050 4 WAY 30W DIV N-TYPE 0.375-4GHZ Pasternack	1,523	-	RFQ	Datasheet	Module	-	Bag	Active	2dB	375 MHz ~ 6 GHz	Isolation (Min) 19dB, 4° Imbalance (Max), 1.5 VSWR (Max)	3.937" L x 3.622" W x 0.807" H (100.00mm x 92.00mm x 20.51mm)
AM4900-5900PD4-849 4.9-5.9GHz 4-Way Power Divider Anatech Microwave Company	4,953	-	RFQ	Datasheet	Module, SMA Connectors	-	Box	Active	1.5dB	4.9 GHz ~ 5.9 GHz	Isolation (Min) 20dB, 1.5 VSWR (Max)	3.620" L x 2.640" W x 0.770" H (92.00mm x 67.00mm x 19.50mm)
WMRD08-7.2-S POWER DIV 8 WAY 0HZ-7.2GHZ SMA Werbel Microwave LLC	3,027	-	RFQ	Datasheet	Module, SMA Connectors	Resistive Dividers/Splitters	Retail Package	Active	18dB	0 GHz ~ 7.2 GHz	Isolation (Typ) 30dB, Return Loss (Typ) 14dB	1.750" L x 1.750" W x 0.550" H (44.50mm x 25.40mm x 13.90mm)
PE2023 2 Way SMA Wilkinson Power Divide Pasternack	3,131	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.6dB	12 GHz ~ 18 GHz	Isolation (Min) 20dB, 1.35 VSWR (Max)	1.000" L x 1.000" W x 0.550" H (25.40mm x 25.40mm x 13.97mm)
PE20S0025 2 Way N Power Divider From 800 M Pasternack	1,595	-	RFQ	Datasheet	Module	-	Retail Package	Active	0.4dB	800 MHz ~ 2.5 GHz	Isolation (Min) 22dB, 2° Imbalance (Max), 1.25 VSWR (Max)	2.047" L x 1.890" W x 0.787" H (52.00mm x 48.00mm x 20.00mm)
PE20DV1105 3 Way SMA Power Divider From 8 G Pasternack	2,403	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.5dB	8 GHz ~ 18 GHz	Isolation (Min) 18dB, 5° Imbalance (Max), 1.5 VSWR (Max)	1.535" L x 1.260" W x 0.413" H (39.00mm x 32.00mm x 10.50mm)
WM2PD-2-18-N POWER DIV 2 WAY 2-18GHZ N Werbel Microwave LLC	1,933	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.5dB	2 GHz ~ 18 GHz	Isolation (Typ) 18dB, Return Loss (Typ) 17dB, Imbalance (Typ) 4°	2.250" L x 1.960" W x .790" H (57.2mm x 49.8mm x 19.1mm)
PE88D4002 Frequency Divider, Divide by 4 P Pasternack	4,237	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	-	100 MHz ~ 20 GHz	-	1.250" L x 1.250" W x 0.568" H (31.75mm x 31.75mm x 14.43mm)
PE88D6000 Frequency Divider, Divide by 6 P Pasternack	1,931	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	-	100 MHz ~ 15 GHz	-	1.250" L x 1.250" W x 0.568" H (31.75mm x 31.75mm x 14.43mm)
PE20DV2105 2-Way SMA Power Divider 6-18GHz Pasternack	4,107	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	0.4dB	6 GHz ~ 18 GHz	Isolation (Min) 18dB, 1.5 VSWR (Max), 5° Imbalance (Max)	1.181" L x 0.945" W x 0.414" H (30.00mm x 24.00mm x 10.51mm)
PD-12001-S-100K 12 Way PWR DIV 0.1 MHz - 32 MHz I.F. Engineering Corp and CrossPoint Technologies	1,533	-	RFQ	Datasheet	Module, SMA Connectors	PD-1200X	Bulk	Active	1.25dB	0.1 MHz ~ 32 MHz	-	6.500" L x 2.500" W x 0.500" H (165.10mm x 63.50mm x 12.70mm)
PE20S0024 4 Way SMA Power Divider From 500 Pasternack	4,337	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	1dB	500 MHz ~ 2 GHz	Isolation (Min) 20dB, 3° Imbalance (Max), 1.3 VSWR (Max)	2.992" L x 2.205" W x 0.394" H (76.00mm x 56.00mm x 10.00mm)
WM4PD-2-18-S POWER DIV 4 WAY 2-18 GHZ SMA Werbel Microwave LLC	1,459	-	RFQ	Datasheet	Module, SMA Connectors	Wilkinson Dividers/Splitters	Retail Package	Active	0.8dB	2 GHz ~ 18 GHz	Isolation (Typ) 18dB, Return Loss (Typ) 17dB, Imbalance (Typ) 3°	4.000" L x 2.500" W x 0.380" H (101.60mm x 63.50mm x 0.380mm)
PE20S0005 4 Way Broadband Combiner from 80 Pasternack	2,441	-	RFQ	Datasheet	Module	-	Retail Package	Active	0.75dB	80 MHz ~ 1 GHz	Isolation (Min) 12dB, 5° Imbalance (Typ), 1.3 VSWR (Max)	4.000" L x 3.000" W x 1.118" H (101.60mm x 76.20mm x 28.40mm)
PE2063 2 Way 2.92mm Resistive Power Div Pasternack	2,377	-	RFQ	Datasheet	Module	-	Retail Package	Active	6dB	0 Hz ~ 12.4 GHz	1.2 VSWR (Max), 2° Imbalance	0.500" L x 0.500" W x 0.379" H (12.70mm x 12.70mm x 9.63mm)
WM3PD-18-26.5-S POWER DIV 3 WAY 18-26.5GHZ SMA Werbel Microwave LLC	4,496	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	1.1dB	18 GHz ~ 26.5 GHz	Isolation (Typ) 23.9dB, Return Loss (Typ) 16.1dB, Imbalance (Typ) 2.3°	1.500" L x 1.550" W x 0.500" H (38.1mm x 39.4mm x 12.7mm)
PE2068 2 WAY SMA RESISTIVE POWER DIVIDE Pasternack	3,720	-	RFQ	Datasheet	Module, SMA Connectors	-	Retail Package	Active	7.5dB	0 Hz ~ 18 GHz	3° Imbalance (Max), 1.3 VSWR (Max)	0.500" L x 0.500" W x 0.379" H (12.70mm x 12.70mm x 9.63mm)
PE20DV1038A 8 Way N Power Divider from 698 M Pasternack	1,412	-	RFQ	Datasheet	Module	-	Retail Package	Active	1.4dB	698 MHz ~ 2.7 GHz	Isolation (Min) 20dB, 1.4 VSWR (Typ)	9.579" L x 3.000" W x 1.349" H (243.30mm x 76.20mm x 34.25mm)
