RF Power Dividers/Splitters
Browse available RF Power Dividers/Splitters part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Insertion Loss | Frequency | Specifications | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS-312-NPOWER DIVIDER,4-WAY |
4,766 | - |
|
Datasheet | FP-5 | - | Bulk | Active | 0.85dB | 10 MHz ~ 500 MHz | Isolation (Min) 25dB, 1.5 VSWR (Max), 2° Imbalance (Max) | 0.811" L x 0.811" W x 0.150" H (20.60mm x 20.60mm x 3.80mm) |
|
|
DS-312-SMAPOWER DIVIDER,4-WAY |
3,855 | - |
|
Datasheet | Module, SMA Connectors | - | Bulk | Active | 0.85dB | 10 MHz ~ 500 MHz | Isolation (Min) 25dB, 1.5 VSWR (Max), 2° Imbalance (Max) | 2.000" L x 2.000" W x 0.915" H (50.80mm x 50.80mm x 23.24mm) |
|
|
FMDV1151POWER DIVIDER 70 GHZ 1.85MM |
3,979 | - |
|
Datasheet | Module | - | Bag | Active | 14dB | 0 Hz ~ 70 GHz | 12° Imbalance (Max), 3 VSWR (Max) | 1.988" L x 1.331" W x 0.413" H (50.50mm x 33.80mm x 10.50mm) |
|
|
2090-6202-00POWER DIVIDER,2-WAY |
3,328 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - |
|
|
DS-808-4TNCPOWER_DIVIDER,8-WAY, |
3,706 | - |
|
Datasheet | Module | - | Tray | Active | 3dB | 2 MHz ~ 20 GHz | Isolation (Min) 20dB, 2 VSWR (Max), 15° Imbalance (Max) | 4.500" L x 3.000" W x 1.039" H (114.30mm x 76.20mm x 26.40mm) |
|
|
DS-808-4NPOWER_DIVIDER,8-WAY |
3,546 | - |
|
Datasheet | Module | - | Tray | Active | 3dB | 2 MHz ~ 20 GHz | Isolation (Min) 20dB, 2 VSWR (Max), 15° Imbalance (Max) | 4.500" L x 3.000" W x 1.039" H (114.30mm x 76.20mm x 26.40mm) |
|
|
PWD-5526-04-NNN-79RF PWR DIVIDER 6GHZ-18GHZ MODULE |
1,614 | - |
|
Datasheet | Module | - | Bulk | Active | 1dB | 6 GHz ~ 18 GHz | Isolation (Min) 18dB | 1.460" L x 2.000" W (37.10mm x 50.80mm) |
|
|
2090-6304-00POWER DIVIDER,3-WAY |
4,430 | - |
|
Datasheet | Module, SMA Connectors | 2090 | Tray | Active | 0.4dB | 500 MHz ~ 18 GHz | Isolation (Min) 18dB, 1.6 VSWR (Max) | 1.000" L x 0.820" W x 0.515" H (25.40mm x 20.83mm x 13.08mm) |
|
|
DS-808-4BNCPOWER_DIVIDER,8-WAY |
4,309 | - |
|
Datasheet | Module | - | Tray | Active | 3dB | 2 MHz ~ 20 GHz | Isolation (Min) 20dB, 2 VSWR (Max), 15° Imbalance (Max) | 4.500" L x 3.000" W x 1.039" H (114.30mm x 76.20mm x 26.40mm) |
|

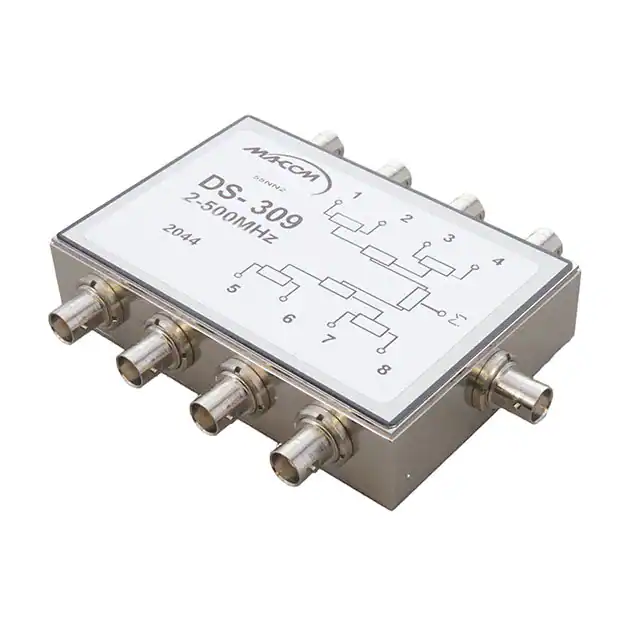

DS-309-BNCPOWER DIVIDER,8-WAY |
3,257 | - |
|
Datasheet | Module | - | Tray | Active | 1.2dB | 2 kHz ~ 400 MHz | Isolation (Min) 30dB, 1.6 VSWR (Max), 3.5° Imbalance (Max) | 4.500" L x 3.000" W x 1.039" H (114.30mm x 76.20mm x 26.40mm) |
|
|
DS-309-SMAPOWER DIVIDER,8-WAY |
2,356 | - |
|
Datasheet | Module | - | Bulk | Active | 1.2dB | 2 MHz ~ 500 MHz | Isolation (Min) 30dB, 1.6 VSWR (Max), 3.5° Imbalance (Max) | 4.500" L x 3.000" W x 1.039" H (114.30mm x 76.20mm x 26.40mm) |
|
PWD-5536-04-29M-792.92MM PWER DIVIDER 4WAY 6-40GHZ |
1,011 | - |
|
Datasheet | Module | - | Box | Active | 2.6dB | 6 GHz ~ 40 GHz | Isolation (Min) 13dB | 2.000" L x 1.300" W x 0.380" H (50.80mm x 33.02mm x 9.65mm) |
|
|
2089-6807-00POWER DIVIDER,8-WAY |
4,986 | - |
|
Datasheet | Module, SMA Connectors | 2089-6xxx | Tray | Active | 2dB | 2 GHz ~ 8 GHz | Isolation (Min) 15dB, 1.6 VSWR (Max), 16° Imbalance (Max) | 2.760" L x 4.000" W x 0.380" H (70.20mm x 101.60mm x 9.70mm) |
|
|
PWD-5530-08-SMA-79RF PWR DVDR 500MHZ-18GHZ MODULE |
4,898 | - |
|
Datasheet | Module | - | Bulk | Active | 1dB | 500 MHz ~ 18 GHz | Isolation (Min) 15dB | 5.200" L x 4.000" W (132.10mm x 101.60mm) |
|
|
FMDV2108POWER DIVIDER 110 GHZ 1.0MM |
4,531 | - |
|
Datasheet | Module | - | Bag | Active | 9.5dB | 0 Hz ~ 110 GHz | 2.1 VSWR (Max) | 0.642" Dia x 0.359" H (16.30mm x 9.11mm) |
|
|
FMDV2107POWER DIVIDER 110 GHZ 1.0MM |
2,962 | - |
|
Datasheet | Module | - | Bag | Active | 9dB | 0 Hz ~ 110 GHz | 20° Imbalance (Max), 1.9 VSWR (Max) | 0.642" Dia x 0.359" H (16.30mm x 9.11mm) |
|
|
EHF-FD1545RF POWER DIVIDER 650HZ-2000MHZ |
4,218 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | 4dB | 650 Hz ~ 2000 MHz | - | 0.063" L x 0.063" W (1.60mm x 1.60mm) |
|
EHF-FD1502RF POWER DIVIDER 720HZ-760MHZ |
3,205 | - |
|
Datasheet | - | - | Bulk | Obsolete | 4dB | 720 Hz ~ 760 MHz | Isolation (Min) 18dB, 1.8 VSWR (Max) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
|
EHF-FD1508RF POWER DIVIDER 981HZ-1008MHZ |
2,373 | - |
|
Datasheet | - | - | Bulk | Obsolete | 4dB | 981 MHz ~ 1008 MHz | Isolation (Min) 18dB, 2.1 VSWR (Max) | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
|
EHF-FD1503RF POWER DIVIDER 1.54GHZ-1.64GHZ |
1,249 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Obsolete | 4dB | 1.54 GHz ~ 1.64 GHz | - | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
RF Power Dividers/Splitters FAQ
Common questions about selecting, comparing and sourcing RF Power Dividers/Splitters components through Winsun (HK) Electronics.
What should I check when selecting RF Power Dividers/Splitters components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Power Dividers/Splitters part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Power Dividers/Splitters parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Power Dividers/Splitters components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
