RF Switches
Use the filters and product table below to compare RF Switches components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE71S500475 dB High Isolation SP4T PIN Di |
1,399 | - |
|
Datasheet | - | - | Retail Package | Active | Radar | Reflective | SP4T | 6GHz ~ 12GHz | 70dB (min) | 3dB | 12GHz | - | - | - | - | - | -54°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6077SP6T Electromechanical Relay Lat |
1,974 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Reflective | SP6T | 0Hz ~ 18GHz | 60dB (min) | 0.5dB (max) | 18GHz | - | - | - | 50Ohm | 24V ~ 30V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6208Absorptive SPDT PIN Diode Switch |
4,261 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 2GHz ~ 4GHz | 75dB (min) | 1.2dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
|
|
PE71S6349SPDT Electromechanical Relay Lat |
1,308 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SPDT | 0Hz ~ 12GHz | 90dB | 0.3dB | 12GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | Chassis Mount | - |
|
|
PE71S7283SPDT, Electromechanical Relay La |
1,835 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | DC ~ 43GHz | 85dB | 0.40dB | 43GHz | - | - | - | 50Ohm | 26V ~ 30V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6247Absorptive SP3T PIN Diode Switch |
3,147 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | SP3T | 12GHz ~ 18GHz | 70dB (min) | 3.75dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -40°C ~ 85°C | - | - | Chassis Mount | - |
|

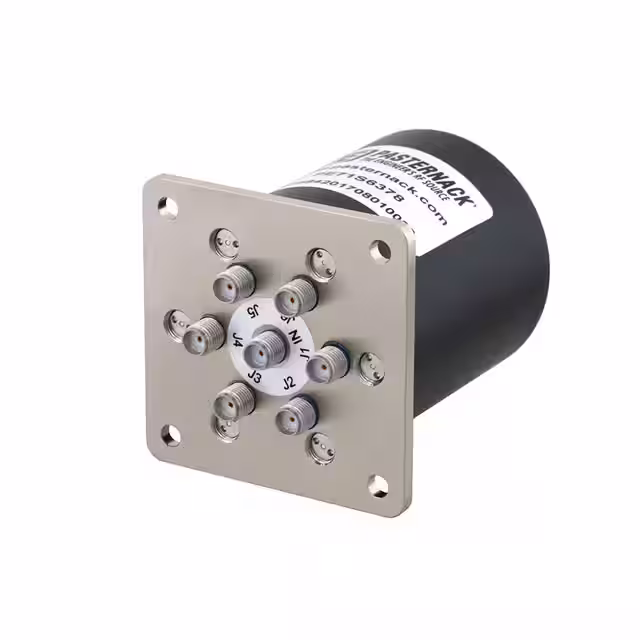

PE71S6378IC RF SWITCH SP6T 26.5GHZ MODULE |
3,887 | - |
|
Datasheet | - | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|

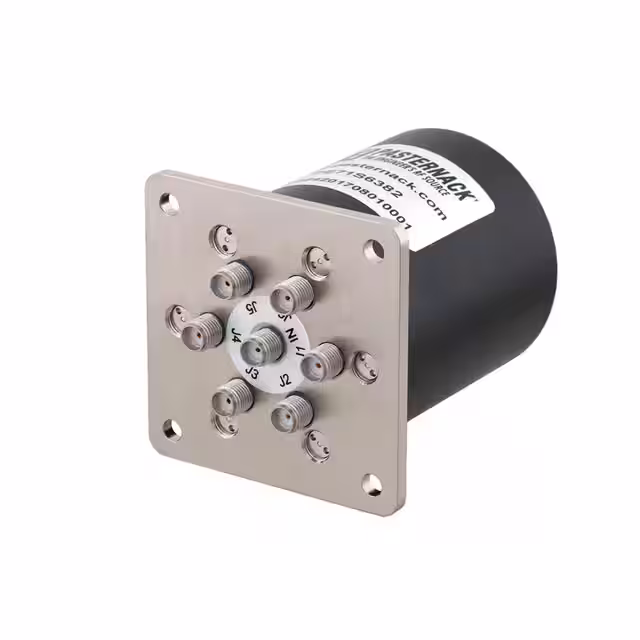

PE71S6382IC RF SWITCH SP6T 26.5GHZ MODULE |
3,976 | - |
|
Datasheet | - | Module, SMA Connectors | Bag | Active | General Purpose | - | SP6T | DC ~ 26.5GHz | 80dB | 0.15dB | 26.5GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 70°C | - | - | - | Module |
|
|
PE71S7281SPDT, Electromechanical Relay Fa |
1,378 | - |
|
Datasheet | - | - | Retail Package | Active | SATCOM | Absorptive | SPDT | DC ~ 43GHz | 85dB | 0.40dB | 43GHz | - | - | - | 50Ohm | 11V ~ 13V | -25°C ~ 65°C | - | - | Chassis Mount | - |
|
|
PE71S6286Absorptive Transfer PIN Diode Sw |
4,384 | - |
|
Datasheet | - | - | Retail Package | Active | General Purpose | Absorptive | - | 10MHz ~ 1GHz | 80dB (min) | 1.3dB (max) | - | - | - | - | 50Ohm | -15V, 5V | -55°C ~ 85°C | - | - | Chassis Mount | - |
RF Switches FAQ
Common questions about filtering, comparing and sourcing RF Switches components.
How can I narrow the RF Switches selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Switches part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
