RF Switches
Browse available RF Switches part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC536MS8GTRIC RF SWITCH SPDT 6GHZ 8MSG |
195 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | General Purpose | Reflective | SPDT | 0Hz ~ 6GHz | 32dB | 0.7dB | 6GHz | - | 48dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-MSG |
|
ADRF5301BCCZNIC RF SWITCH SPDT 49GHZ 20LGA |
3,429 | - |
|
Datasheet | - | 20-VFLGA Exposed Pad | Strip | Active | Cellular | Reflective | SPDT | 37GHz ~ 49GHz | 30dB | 1.4dB | 40GHz | 36dBm | 52dBm | Single Line Control | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
MAX12005ETM+IC RF SWITCH 2.15GHZ 48TQFN |
4,075 | - |
|
Datasheet | - | 48-WFQFN Exposed Pad | Tube | Active | DBS, L-Band, IF Satellite | Reflective | - | 950MHz ~ 2.15GHz | 55dB | - | 950MHz | - | - | - | 75Ohm | 3V ~ 3.5V | -40°C ~ 85°C | - | - | Surface Mount | 48-TQFN (7x7) |
|
MASW-004102-12760WIC RF SWITCH SP4T 18GHZ DIE |
100 | - |
|
Datasheet | HMIC™ | Die | Tray | Active | General Purpose | - | SP4T | 0Hz ~ 18GHz | 35dB | 1.4dB | 18GHz | - | - | - | 50Ohm | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW-011144-DIEIC RF SWITCH SPDT 40GHZ DIE |
100 | - |
|
Datasheet | - | Die | Case | Active | K, Ka Band | Reflective | SPDT | 20GHz ~ 40GHz | 30dB | 0.65dB | 34GHz | 40dBm | - | DC Blocked | 50Ohm | 4.5V | -55°C ~ 85°C | - | - | - | Die |
|
|
MASW-011129-DIEIC RF SWITCH SP2T 22GHZ DIE |
1,996 | - |
|
Datasheet | - | Die | Case | Active | General Purpose | Reflective | SP2T | 2GHz ~ 22GHz | -60dB | -0.5dB | 2GHz, 12GHz | - | - | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
|
MASW-011130-DIEIC RF SWITCH SP3T 22GHZ DIE |
1,510 | - |
|
Datasheet | - | Die | Case | Active | General Purpose | Reflective | SP3T | 2GHz ~ 22GHz | -60dB | -0.5dB | 2GHz, 12GHz | - | 45dBm | DC Blocked | 50Ohm | - | -40°C ~ 85°C | - | - | - | Die |
|
MA4SW610B-1IC RF SWITCH SP6T 18GHZ DIE |
125 | - |
|
Datasheet | HMIC™ | Die | Bulk | Active | General Purpose | Reflective | SP6T | 2GHz ~ 18GHz | 39dB | 1.9dB | 18GHz | - | - | - | - | - | -65°C ~ 125°C | - | - | - | Die |
|
|
MASW-011108-DIEIC RF SWITCH SPDT 18GHZ DIE |
1,832 | - |
|
Datasheet | - | Die | Case | Active | Radar | Reflective | SPDT | 6GHz ~ 18GHz | 38dB | 0.9dB | 18GHz | - | - | DC Blocked | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | Die |
|
ADGM1004JCPZ-RL7IC RF SWITCH SP4T 13GHZ 24LFCSP |
892 | - |
|
Datasheet | ADGM1004 | 24-LFQFN Exposed Pad, CSP | Tape & Reel (TR) | Active | General Purpose | - | SP4T | DC ~ 13GHz | 19dB | 0.63dB | 6GHz | - | 67dBm | - | 50Ohm | 3.1V ~ 3.3V | 0°C ~ 85°C | - | - | Surface Mount | 24-LFCSP (5x4) |
|
HMC347ALP3ETRIC RF SWITCH SPDT 14GHZ 16QFN |
656 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 0Hz ~ 14GHz | 38dB | 1.9dB | 14GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC547ALC3TRIC RF SWITCH SPDT 28GHZ 16SMT |
1,778 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Active | VSAT | Absorptive | SPDT | 0Hz ~ 28GHz | 34dB | 2.4dB | 28GHz | 23dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-SMT (3x3) |
|

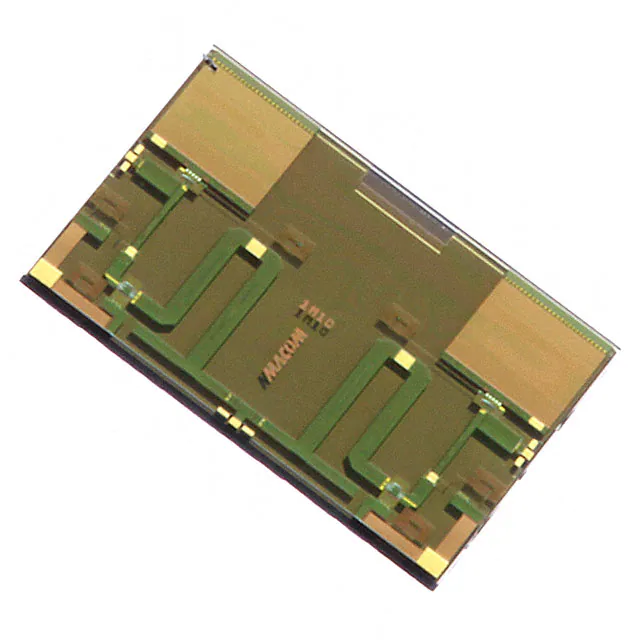

MASW-010647-13950GIC RF SWITCH SPDT 10.5GHZ DIE |
3,226 | - |
|
Datasheet | - | Die | Bulk | Active | - | - | SPDT | 8GHz ~ 10.5GHz | 39dB | 0.85dB | 10.5GHz | - | 60dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | Die |
|
ADRF5026SCCZ-EPIC RF SWITCH SPDT 44GHZ 20LGA |
3,071 | - |
|
Datasheet | - | 20-WFLGA Exposed Pad | Strip | Active | Cellular, Radar, VSAT | Absorptive | SPDT | 100MHz ~ 44GHz | 45dB | 3.8dB | 44GHz | 27dBm | 53dBm | - | 50Ohm | 3.15V ~ 3.45V | -55°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
HMC986AIC RF SWITCH SPDT 50GHZ DIE |
1,685 | - |
|
Datasheet | - | Die | Tray | Active | Radar | Reflective | SPDT | 100MHz ~ 50GHz | 36dB | 1.9dB | 1GHz, 40GHz | 25dBm | 40dBm | - | 50Ohm | - | - | - | - | - | Die |
|
|
BGSA14M3N10E6327XTSA1RF SWITCH SP4T |
12,000 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BGSA200ML9E6327XTSA1IC RF SWITCH 2XSPST 400MHZ ANT |
14,900 | - |
|
Datasheet | - | - | Tape & Reel (TR) | Active | General Purpose | - | 2 x SPST | 400MHz | - | - | - | - | - | - | - | 1.2V ~ 1.8V | - | - | - | - | - |
|
|
BGSA143ML10E6327XTSA1IC RF SWITCH SP4T 6GHZ TSLP10-2 |
7,063 | - |
|
Datasheet | - | 10-XFLGA | Tape & Reel (TR) | Active | - | Reflective | SP4T | 6GHz | - | - | - | - | - | DC Blocked | - | 42V | - | - | - | Surface Mount | PG-TSLP-10-2 |
|
BGSA12UGL8E6327XTSA1IC RF SWITCH SPDT TSLP8-1 |
14,927 | - |
|
Datasheet | - | 8-XFLGA | Tape & Reel (TR) | Active | CDMA, EDGE, LTE, W-CDMA | - | SPDT | - | - | - | - | 11.2dBm | - | - | - | 1.8V ~ 3.6V | - | - | - | Surface Mount | PG-TSLP-8-1 |
|
|
BGSA14M2N10E6329XTSA1IC RF SW SP4T 7.125GHZ TSNP10 |
11,000 | - |
|
Datasheet | - | 10-XFQFN | Tape & Reel (TR) | Active | General Purpose | Reflective | SP4T | 7.125GHz | - | - | - | - | - | - | 850mOhm | - | - | - | - | Surface Mount | PG-TSNP-10-9 |
RF Switches FAQ
Common questions about selecting, comparing and sourcing RF Switches components through Winsun (HK) Electronics.
What should I check when selecting RF Switches components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Switches part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Switches parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Switches components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
