RF Switches
Use the filters and product table below to compare RF Switches components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADRF5142BCCZNSPDT, 40W PEAK, 8 - 11GHZ, REEL |
4,153 | - |
|
Datasheet | - | 20-VFLGA Exposed Pad | Strip | Active | Radar | Reflective | SPDT | 8GHz ~ 11GHz | 40dB | 1.2dB | 11GHz | - | 70dBm | DC Blocked | 50Ohm | -3.45V ~ -3.15V, 3.15V ~ 3.45V | -40°C ~ 85°C (TC) | - | - | Surface Mount | 20-LGA (3x3) |
|
HMC253LC4IC RF SWITCH SP8T 3.5GHZ 24CQFN |
1,300 | - |
|
Datasheet | - | 24-TFCQFN Exposed Pad | Strip | Obsolete | Cellular, CATV | Absorptive | SP8T | 0Hz ~ 3.5GHz | 35dB | 1.3dB | 3.5GHz | - | 43dBm | - | 50Ohm | 4.5V ~ 5.5V | -40°C ~ 85°C | - | - | Surface Mount | 24-CQFN (4x4) |
|
|
ADRF5023BCCZN-R7IC RF SWITCH SPDT 45GHZ 20LGA |
1,041 | - |
|
Datasheet | - | 20-VFLGA Exposed Pad | Tape & Reel (TR) | Active | 5G, Cellular, VSAT | Absorptive | SPDT | 9kHz ~ 45GHz | 42dB | 1.7dB | 45GHz | - | 53dBm | DC Blocked | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 85°C | - | - | Surface Mount | 20-LGA (3x3) |
|
|
ADRF5032BCCZN-R7IC RF SWITCH SPDT 60GHZ 12LGA |
1,408 | - |
|
Datasheet | - | 12-UFLGA Exposed Pad | Tape & Reel (TR) | Active | Cellular, VSAT | Reflective | SPDT | 1GHz ~ 60GHz | 36dB | 2dB | 60GHz | - | 45dBm | - | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 12-LGA (2.5x2.5) |
|
|
ADGM1001BCCZ-RL7IC RF SWITCH SPDT 34GHZ 24LGA |
1,517 | - |
|
Datasheet | ADGM1001 | 24-VFLGA Exposed Pad | Tape & Reel (TR) | Active | General Purpose | - | SPDT | DC ~ 34GHz | 19dB | 1.5dB | 34GHz | - | 76dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 24-LGA (5x4) |
|
ADRF5043BCCZN-R7IC RF SWITCH SP4T 44GHZ 24LGA |
1,995 | - |
|
Datasheet | - | 24-VFLGA Exposed Pad | Tape & Reel (TR) | Active | 5G, Cellular, VSAT | Absorptive | SP4T | 9kHz ~ 44GHz | 36dB | 2.5dB | 44GHz | 27dBm | 48dBm | - | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C (TC) | - | - | Surface Mount | 24-LGA (3x3) |
|
HMC-SDD112IC RF SWITCH SPDT 86GHZ DIE |
4,425 | - |
|
Datasheet | - | Die | Tray | Obsolete | Radar | - | SPDT | 55GHz ~ 86GHz | 30dB | 2dB | 86GHz | - | - | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
|
|
ADRF5022BCCZN-R7SILICON SPDT, 0.1-45GHZ, 1W, REE |
3,139 | - |
|
Datasheet | - | 20-VFLGA Exposed Pad | Tape & Reel (TR) | Active | 5G, Cellular, Radar | Absorptive | SPDT | 100MHz ~ 45GHz | 43dB | 2.3dB | 45GHz | - | 55dBm | DC Blocked | 50Ohm | 3.15V ~ 3.45V | -40°C ~ 105°C | - | - | Surface Mount | 20-LGA (3x3) |
|
HMC232C8IC RF SWITCH SPDT 8GHZ 8CSMD |
4,445 | - |
|
Datasheet | - | 8-SMD, Gull Wing Exposed Pad | Strip | Obsolete | General Purpose | - | SPDT | 0Hz ~ 8GHz | 43dB | 1.6dB | 6GHz | 26dBm | 46dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | - | 8-CSMD |
|

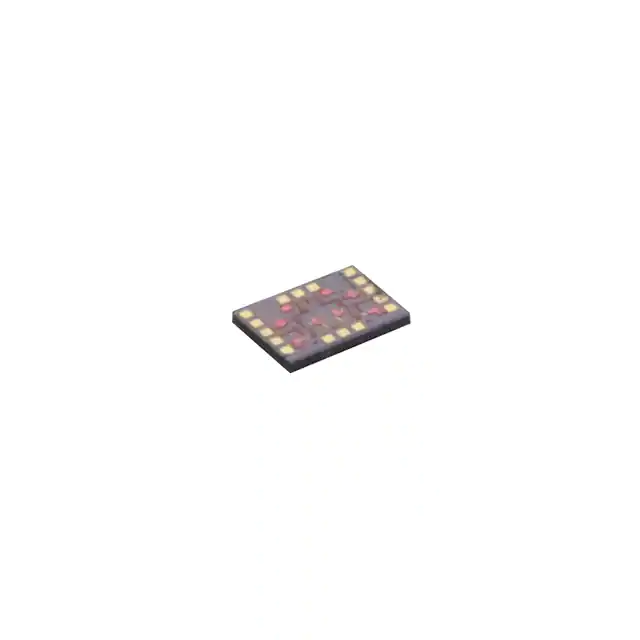

HMC347AIC RF SWITCH SPDT 20GHZ DIE |
1,155 | - |
|
Datasheet | - | Die | Tray | Active | VSAT | Absorptive | SPDT | 0Hz ~ 20GHz | 45dB | 1.7dB | 20GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | - | Die |
RF Switches FAQ
Common questions about filtering, comparing and sourcing RF Switches components.
How can I narrow the RF Switches selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific RF Switches part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
