RF Switches
Browse available RF Switches part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPG2409T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
4,864 | - |
|
Datasheet | - | 6-XFDFN Exposed Pad | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 27dB | 0.65dB | 6GHz | 36dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|
UPG2409TB-AIC RF SWITCH SPDT 3.8GHZ 6-SMINI |
3,342 | - |
|
Datasheet | - | 6-TSSOP, SC-88, SOT-363 | Bulk | Obsolete | 802.11b/g/n | Reflective | SPDT | 500MHz ~ 3.8GHz | 19dB | 0.6dB | 3.8GHz | 37dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-SuperMiniMold |
|
UPG2413T6M-AIC RF SWITCH SP3T 3GHZ 12TSQFN |
1,116 | - |
|
Datasheet | - | 12-XFQFN Exposed Pad | Bulk | Obsolete | 802.11b/g | Reflective | SP3T | 500MHz ~ 3GHz | 16dB | 0.6dB | 3GHz | 33dBm | - | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 12-TSQFN (2x2) |
|
UPG2415T6X-AIC RF SWITCH SPDT 6GHZ 6TSON |
2,556 | - |
|
Datasheet | - | 6-XFDFN Exposed Pad | Bulk | Obsolete | WLAN | Reflective | SPDT | 50MHz ~ 6GHz | 26dB | 0.55dB | 6GHz | 35dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-TSON |
|

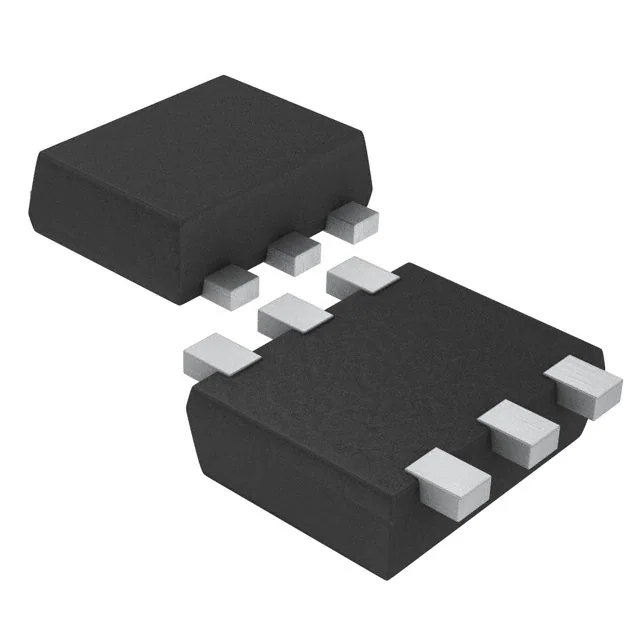

UPG2415TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
4,432 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Bulk | Obsolete | WLAN | Reflective | SPDT | 500MHz ~ 6GHz | 26dB | 0.65dB | 6GHz | 34dBm | 60dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
4230-52IC RF SWITCH SPDT 3GHZ 8MSOP |
1,491 | - |
|
Datasheet | UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 30dB | 0.55dB | 2GHz | 32dBm | 50dBm (min) | - | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
4231-52IC RF SWITCH SPDT 1.3GHZ 8MSOP |
1,162 | - |
|
Datasheet | UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 1.3GHz | 42dB | 0.8dB | 1GHz | 32dBm | 50dBm (min) | Single Line Control | 75Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
|
4244-52IC RF SWITCH SPDT 3GHZ 8MSOP |
4,335 | - |
|
Datasheet | UltraCMOS® | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 29dB | 0.6dB | 2GHz | 27dBm | 45dBm | Single Line Control | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
4246-52IC RF SWITCH SPST 5GHZ 6DFN |
1,191 | - |
|
Datasheet | UltraCMOS® | 6-VDFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPST | 1MHz ~ 5GHz | 44dB | 1.3dB | 5GHz | 33dBm | 50dBm (min) | Single Line Control | 50Ohm | 2.7V ~ 3.3V | -40°C ~ 85°C | - | - | Surface Mount | 6-DFN (3x3) |
|
PE42556DI-ZIC RF SWITCH SPDT 13.5GHZ 14FLP |
3,952 | - |
|
Datasheet | UltraCMOS®, HaRP™ | 14-XFBGA, FCDSBGA | Tape & Reel (TR) | Obsolete | Cellular | Absorptive | SPDT | 9kHz ~ 13.5GHz | 17.5dB | 1.74dB | 13.5GHz | 33dBm | 56dBm | - | 50Ohm | 3V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 14-FlipChip (1.1x2) |
|
4268-52IC RF SWITCH SP6T 3GHZ 20QFN |
3,185 | - |
|
Datasheet | UltraCMOS® | 20-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SP6T | 100MHz ~ 3GHz | 24dB | 1.1dB | 1.9GHz | 20dBm (min) | 40dBm | DC Blocked | 50Ohm | 2.4V ~ 2.8V | -40°C ~ 85°C | - | - | Surface Mount | 20-QFN (4x4) |
|
|
AFEM-S102-BLKGIC RF SWITCH SP3T 2.5GHZ 12QFN |
3,072 | - |
|
Datasheet | - | 12-UFQFN Exposed Pad | Bag | Obsolete | 802.11b/g/n | - | SP3T | 2.4GHz ~ 2.5GHz | 27dB | 0.6dB | 2.4GHz | 31dBm | 43dBm | - | 50Ohm | 3V | -30°C ~ 85°C | - | - | Surface Mount | 12-QFN (2.2x2.2) |
|
|
AFEM-S102-TR1GIC RF SWITCH SP3T 12QFN |
4,804 | - |
|
Datasheet | - | 12-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | 802.11b/g/n | - | SP3T | - | 27dB | 0.6dB | 2.4GHz | 31dBm | 43dBm | - | 50Ohm | 3V | -30°C ~ 85°C | - | - | Surface Mount | 12-QFN (2.2x2.2) |
|
|
BF1118WR,115IC RF SWITCH 1GHZ CMPAK-4 |
1,805 | - |
|
Datasheet | - | SC-82A, SOT-343 | Tape & Reel (TR) | Obsolete | General Purpose | - | - | 0Hz ~ 1GHz | 30dB (min) | 2.5dB (max) | 1GHz | - | - | - | 50Ohm | - | - | - | - | Surface Mount | CMPAK-4 |
|
|
UPG2422TK-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
1,615 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Bulk | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
|
UPG2422TK-E2-AIC RF SWITCH SPDT 6GHZ 6MINIMOLD |
1,660 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 50MHz ~ 6GHz | 28dB | 0.55dB | 6GHz | 31dBm | 57dBm | - | 50Ohm | - | -45°C ~ 85°C | - | - | - | 6-Minimold |
|
SKY13276-334IC RF SWITCH SPDT 6GHZ 6LGA |
2,455 | - |
|
Datasheet | - | 6-VFLGA | Tape & Reel (TR) | Obsolete | 802.11a/b/g/n | Reflective | SPDT | 100MHz ~ 6GHz | 21dB | 0.7dB | 5.85GHz | 34dBm | 55dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 6-LGA (1.5x1.2) |
|
HMC221AEIC RF SWITCH SPDT 3GHZ SOT23-6 |
2,294 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | General Purpose | Reflective | SPDT | 0Hz ~ 3GHz | 18dB | 0.8dB | 3GHz | 29dBm | 43dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 105°C | - | - | Surface Mount | SOT-23-6 |
|
HMC241LP3ETRIC RF SWITCH SP4T 4GHZ 16QFN |
3,107 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 4GHz | 30dB | 1.2dB | 4GHz | 26dBm | 45dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC321LP4ETRIC RF SWITCH SP8T 8GHZ 24QFN |
3,653 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP8T | 0Hz ~ 8GHz | 25dB | 2.7dB | 8GHz | 23dBm | 40dBm | - | 50Ohm, 75Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
RF Switches FAQ
Common questions about selecting, comparing and sourcing RF Switches components through Winsun (HK) Electronics.
What should I check when selecting RF Switches components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Switches part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Switches parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Switches components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
