RF Switches
Browse available RF Switches part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMC284AMS8GIC RF SWITCH SPDT 3.5GHZ 8MSOP |
3,188 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Strip | Obsolete | Cellular, ISM, PCS | Absorptive | SPDT | 0Hz ~ 3.5GHz | 40dB | 0.7dB | 3.5GHz | 29dBm | 50dBm (min) | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOPG |
|
HMC182S14TRIC RF SWITCH SP4T 2GHZ 14SOIC |
2,874 | - |
|
Datasheet | - | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 2GHz | 32dB | 0.8dB | 2GHz | 24dBm | 41dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
HMC241QS16TRIC RF SWITCH SP4T 3.5GHZ 16QSOP |
3,809 | - |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 3.5GHz | 26dB | 1dB | 3.5GHz | 25dBm | 44dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QSOP |
|
HMC252QS24TRIC RF SWITCH SP6T 3GHZ 24QSOP |
1,421 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP6T | 0Hz ~ 3GHz | 29dB | 1.3dB | 3GHz | 24dBm | 46dBm | - | 50Ohm | 3.3V, 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
|
HMC253QS24TRIC RF SWITCH SP8T 2.5GHZ 24QSOP |
2,679 | - |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP8T | 0Hz ~ 2.5GHz | 28dB | 1.8dB | 2.5GHz | 23dBm | 43dBm | - | 50Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QSOP |
|
HMC322LP4ETRIC RF SWITCH SP8T 8GHZ 24QFN |
4,131 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | Absorptive | SP8T | 0Hz ~ 8GHz | 25dB | 2.5dB | 8GHz | 23dBm | 40dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
|
HMC336MS8GTRIC RF SWITCH SPDT 6GHZ 8MSOP |
3,619 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 6GHz | 42dB | 1.6dB | 6GHz | 25dBm | 42dBm | - | 50Ohm, 75Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOPG |
|
HMC345LP3TRIC RF SWITCH SP4T 8GHZ 16QFN |
4,704 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP4T | 0Hz ~ 8GHz | 32dB | 2.4dB | 8GHz | 21dBm | 45dBm (min) | - | 50Ohm, 75Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
HMC547LP3TRIC RF SWITCH SPDT 20GHZ 16QFN |
3,662 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 20GHz | 38dB | 2dB | 20GHz | 23dBm | 45dBm (min) | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
HMC550TRIC RF SWITCH SPST 6GHZ SOT23-6 |
3,199 | - |
|
Datasheet | - | SOT-23-6 | Tape & Reel (TR) | Obsolete | WiMax, WLAN | Reflective | SPST | 0Hz ~ 6GHz | 25dB | 0.7dB | 2GHz | - | 52dBm | - | 50Ohm | 1.2V ~ 5V | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-6 |
|
AS186-302IC RF SWITCH SPDT 4GHZ 8MSOP |
4,008 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | GSM, ISM, PCS, WCDMA | Absorptive | SPDT | LF ~ 4GHz | 40dB | 1dB | 4GHz | 30dBm | 46dBm | - | 50Ohm | 3V, 5V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP-EP |
|

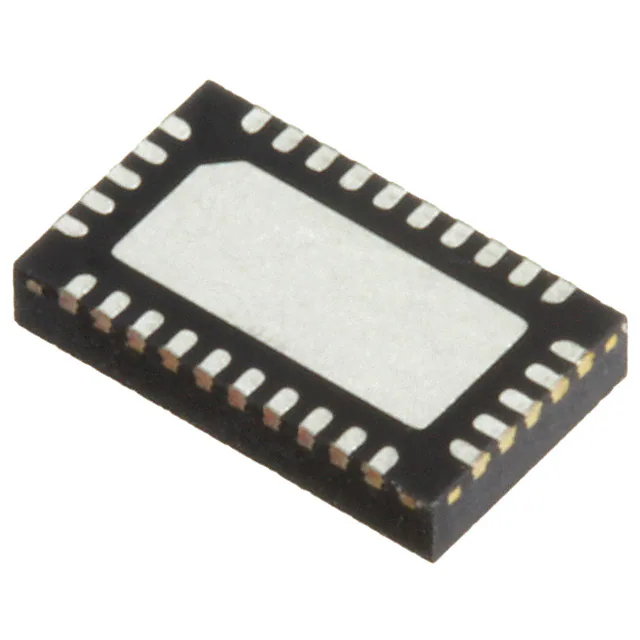

SKY13412-487LFIC RF SWITCH 2.7GHZ 30QFN |
1,445 | - |
|
Datasheet | - | 30-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | - | - | - | 400MHz ~ 2.7GHz | 35dB | 0.6dB | 2GHz | - | - | - | 50Ohm | 2.5V ~ 3.3V | -35°C ~ 90°C | - | - | Surface Mount | 30-QFN (3x3.8) |
|
|
HMC321LP4TRIC RF SWITCH SP8T 8GHZ 24QFN |
2,199 | - |
|
Datasheet | - | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SP8T | 0Hz ~ 8GHz | 25dB | 2.7dB | 8GHz | 23dBm | 40dBm | - | 50Ohm, 75Ohm | 5V | -40°C ~ 85°C | - | - | Surface Mount | 24-QFN (4x4) |
|
HMC344LC3TRIC RF SWITCH SP4T 8GHZ 16CSMT |
1,663 | - |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Radar | Absorptive | SP4T | 0Hz ~ 8GHz | 40dB | 2.5dB | 8GHz | 26dBm | 43dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC344LC3TR-R5IC RF SWITCH SP4T 8GHZ 16CSMT |
4,718 | - |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Radar | Absorptive | SP4T | 0Hz ~ 8GHz | 40dB | 2.5dB | 8GHz | 26dBm | 43dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC344LP3TRIC RF SWITCH SP4T 8GHZ 16QFN |
1,600 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | WLAN | Absorptive | SP4T | 0Hz ~ 8GHz | 40dB | 1.8dB | 6GHz | 21dBm | 40dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
HMC347LP3TRIC RF SWITCH SPDT 14GHZ 16QFN |
4,847 | - |
|
Datasheet | - | 16-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 14GHz | 38dB | 1.9dB | 14GHz | 23dBm | 43dBm | - | 50Ohm | - | -55°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
|
HMC547LC3TR-R5IC RF SWITCH SPDT 28GHZ 16CSMT |
2,434 | - |
|
Datasheet | - | 16-VFCQFN Exposed Pad | Tape & Reel (TR) | Obsolete | General Purpose | Absorptive | SPDT | 0Hz ~ 28GHz | 34dB | 2.4dB | 28GHz | 23dBm | 46dBm | - | 50Ohm | - | -40°C ~ 85°C | - | - | Surface Mount | 16-CSMT (3x3) |
|
|
HMC574MS8TRIC RF SWITCH SPDT 3GHZ 8MSOP |
4,630 | - |
|
Datasheet | - | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Cellular, WLAN | Reflective | SPDT | 0Hz ~ 3GHz | 20dB | 0.5dB | 3GHz | 39dBm | 65dBm | - | 50Ohm | 3V ~ 8V | -40°C ~ 85°C | - | - | Surface Mount | 8-MSOP |
|
UPG2406TB-E4-AIC RF SWITCH SPDT 3GHZ 6MINIMOLD |
2,851 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | General Purpose | - | SPDT | 10MHz ~ 3GHz | 27dB | 0.4dB | 3GHz | 30.5dBm | 60dBm | - | - | 2.7V | -45°C ~ 85°C | - | - | - | 6-Minimold |
RF Switches FAQ
Common questions about selecting, comparing and sourcing RF Switches components through Winsun (HK) Electronics.
What should I check when selecting RF Switches components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Switches part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Switches parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Switches components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
