RF Switches
Browse available RF Switches part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | RF Type | Topology | Circuit | Frequency Range | Isolation | Insertion Loss | Test Frequency | P1dB | IIP3 | Features | Impedance | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S213DIC RF SWITCH SPST 18GHZ MODULE |
4,773 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPST | 2GHz ~ 18GHz | 55dB (min) | 2dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
S213D-04IC RF SWITCH SPST 18GHZ MODULE |
3,622 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPST | 2GHz ~ 18GHz | 55dB (min) | 2dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SP122DHTSIC RF SWITCH SPDT 18GHZ MODULE |
2,788 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPDT | 500MHz ~ 18GHz | 55dB (min) | 3.1dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
SP123DHTSIC RF SWITCH SPDT 18GHZ MODULE |
2,078 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPDT | 2GHz ~ 18GHz | 55dB (min) | 2.9dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
SP142DHTSIC RF SWITCH SP4T 18GHZ MODULE |
1,026 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SP4T | 500MHz ~ 18GHz | 45dB (min) | 3.4dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|

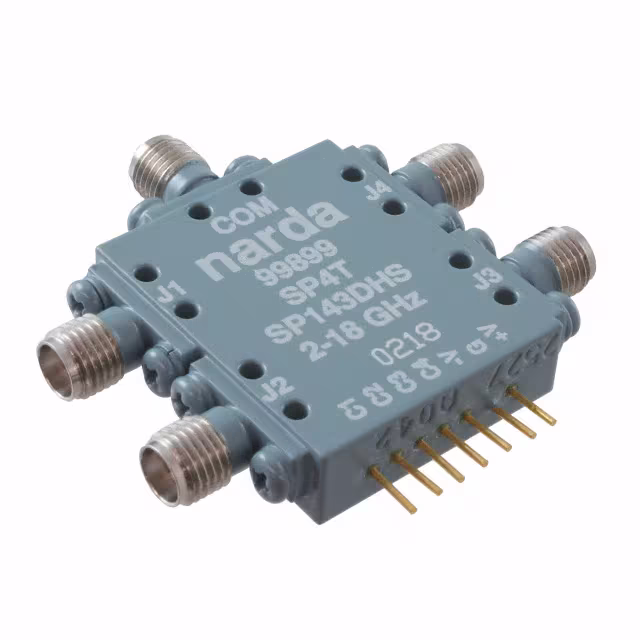

SP143DHSIC RF SWITCH SP4T 18GHZ MODULE |
1,898 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SP4T | 2GHz ~ 18GHz | 60dB (min) | 3dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SP213DHS-80IC RF SWITCH SPST 18GHZ MODULE |
1,410 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPST | 2GHz ~ 18GHz | 80dB (min) | 2.5dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SP213DHTSIC RF SWITCH SPST 18GHZ MODULE |
4,355 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPST | 2GHz ~ 18GHz | 50dB (min) | 2.5dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
SP213DHTS-80IC RF SWITCH SPST 18GHZ MODULE |
4,549 | - |
|
Datasheet | - | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPST | 2GHz ~ 18GHz | 80dB (min) | 2.6dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
SS122DHSIC RF SWITCH SPDT 18GHZ MODULE |
4,678 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPDT | 500MHz ~ 18GHz | 60dB (min) | 2.9dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|

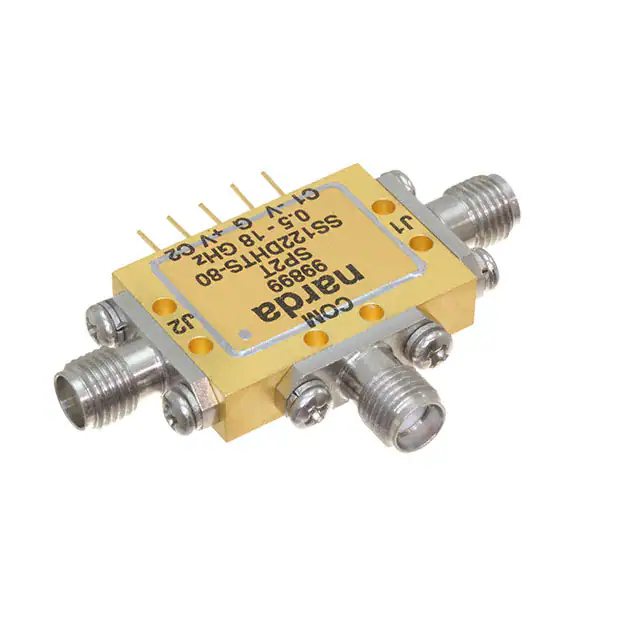

SS122DHTS-80IC RF SWITCH SPDT 18GHZ MODULE |
4,745 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPDT | 500MHz ~ 18GHz | 70dB (min) | 2.9dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
|
SS123BDHTSIC RF SWITCH SPDT 18GHZ MODULE |
4,693 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPDT | 2GHz ~ 18GHz | 55dB (min) | 2.9dB (max) | 16GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|

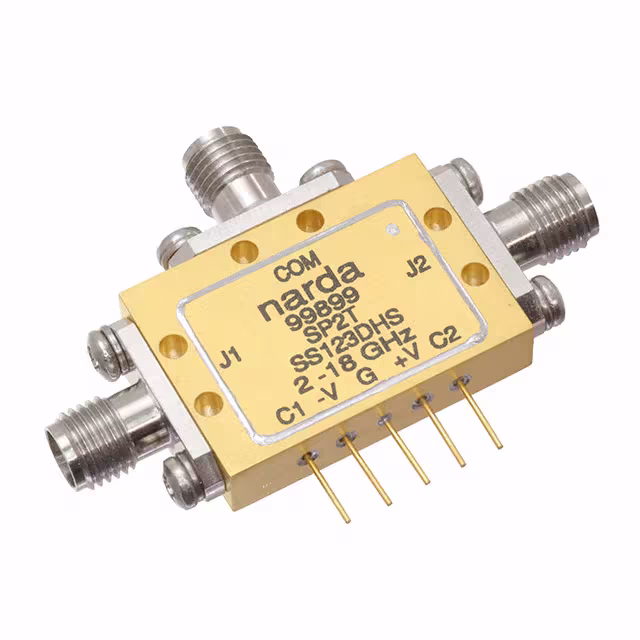

SS123DHSIC RF SWITCH SPDT 18GHZ MODULE |
4,227 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPDT | 2GHz ~ 18GHz | 60dB (min) | 2.9dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SS133BDHTSIC RF SWITCH SP3T 18GHZ MODULE |
2,059 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SP3T | 2GHz ~ 18GHz | 45dB (min) | 3.2dB (max) | 16GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|

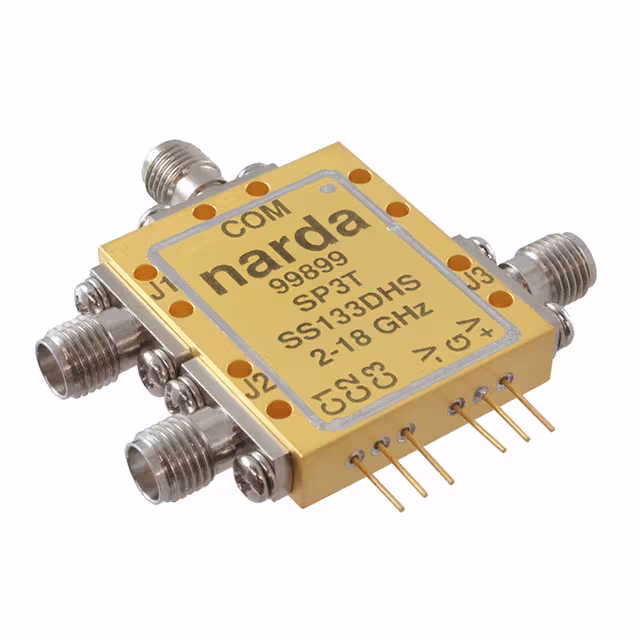

SS133DHSIC RF SWITCH SP3T 18GHZ MODULE |
4,615 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SP3T | 2GHz ~ 18GHz | 60dB (min) | 3dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SS142DHSIC RF SWITCH SP4T 18GHZ MODULE |
3,898 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SP4T | 500MHz ~ 18GHz | 60dB (min) | 3.2dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|

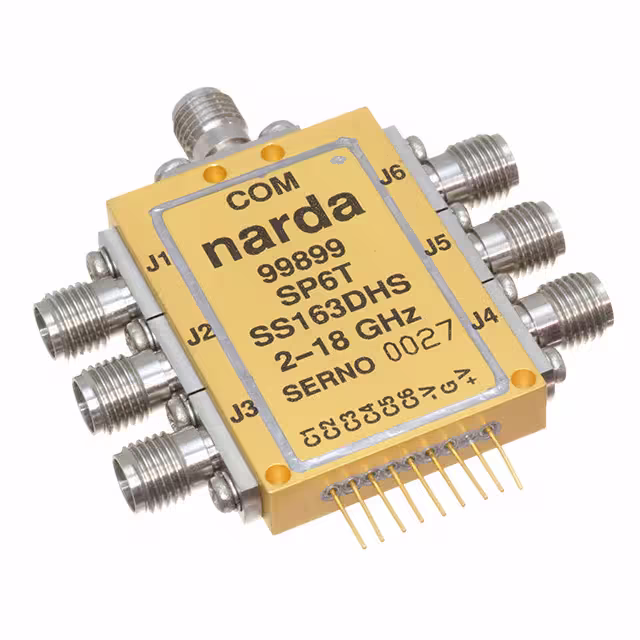

SS163DHSIC RF SWITCH SP6T 18GHZ MODULE |
4,645 | - |
|
Datasheet | Super-Slim | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SP6T | 2GHz ~ 18GHz | 60dB (min) | 3.6dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SV123DSIC RF SWITCH SPDT 18GHZ MODULE |
2,533 | - |
|
Datasheet | Value | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SPDT | 2GHz ~ 18GHz | 50dB (min) | 3dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SV133DSIC RF SWITCH SP3T 18GHZ MODULE |
1,730 | - |
|
Datasheet | Value | Module, SMA Connectors | Box | Active | General Purpose | Reflective | SP3T | 2GHz ~ 18GHz | 50dB (min) | 3.1dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
|
SV213DTSIC RF SWITCH SPST 18GHZ MODULE |
4,052 | - |
|
Datasheet | Value | Module, SMA Connectors | Box | Active | General Purpose | Absorptive | SPST | 2GHz ~ 18GHz | 45dB (min) | 2.8dB (max) | 12GHz ~ 18GHz | - | - | - | - | - | -54°C ~ 95°C | - | - | - | Module |
RF Switches FAQ
Common questions about selecting, comparing and sourcing RF Switches components through Winsun (HK) Electronics.
What should I check when selecting RF Switches components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific RF Switches part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find RF Switches parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for RF Switches components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
