Signal Relays, Up to 2 Amps
Browse available Signal Relays, Up to 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J104D2C3VDC.15SRELAY GENERAL PURPOSE DPDT 2A 3V |
1,921 | - |
|
Datasheet | J104D | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

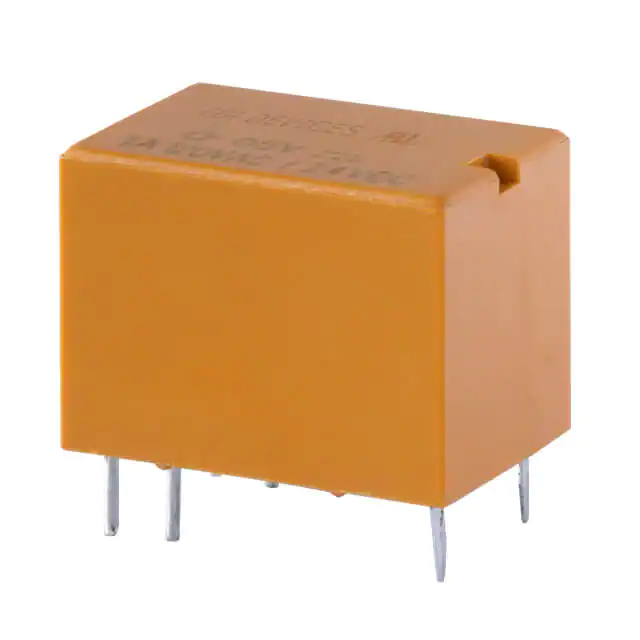

SR5-12V-200-1CRELAY GEN PURPOSE SPDT 1A 12V |
826 | - |
|
Datasheet | SR5 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR5-5V-200-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
781 | - |
|
Datasheet | SR5 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR5-3V-200-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
147 | - |
|
Datasheet | SR5 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J104D2C5VDC.15SRELAY GENERAL PURPOSE DPDT 2A 5V |
5,410 | - |
|
Datasheet | J104D | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 29.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J104D2C6VDC.20SRELAY GENERAL PURPOSE DPDT 2A 6V |
2,393 | - |
|
Datasheet | J104D | Tube | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J1031C24VDC.20SRELAY GEN PURPOSE SPDT 2A 24V |
1,755 | - |
|
Datasheet | J103 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J104D2C9VDC.20SRELAY GENERAL PURPOSE DPDT 2A 9V |
1,996 | - |
|
Datasheet | J104D | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
SR7-3V-200-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
902 | - |
|
Datasheet | SR7 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AZ822-2C-5DERELAY GENERAL PURPOSE DPDT 2A 5V |
1,465 | - |
|
Datasheet | AZ822 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
AZ822-2C-5DSERELAY GENERAL PURPOSE DPDT 2A 5V |
2,851 | - |
|
Datasheet | AZ822 | Tray | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 29.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
SR5-24V-200-1CRELAY GEN PURPOSE SPDT 1A 24V |
508 | - |
|
Datasheet | SR5 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 8.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AZ822-2C-24DERELAY GEN PURPOSE DPDT 2A 24V |
429 | - |
|
Datasheet | AZ822 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 1.2 VDC | 5 ms | 2 ms | -55°C ~ 90°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
EA2-12NJRELAY GEN PURPOSE DPDT 1A 12V |
2,384 | - |
|
Datasheet | EA2 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
UD2-3NURELAY GENERAL PURPOSE DPDT 1A 3V |
1,518 | - |
|
Datasheet | UD2 | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|

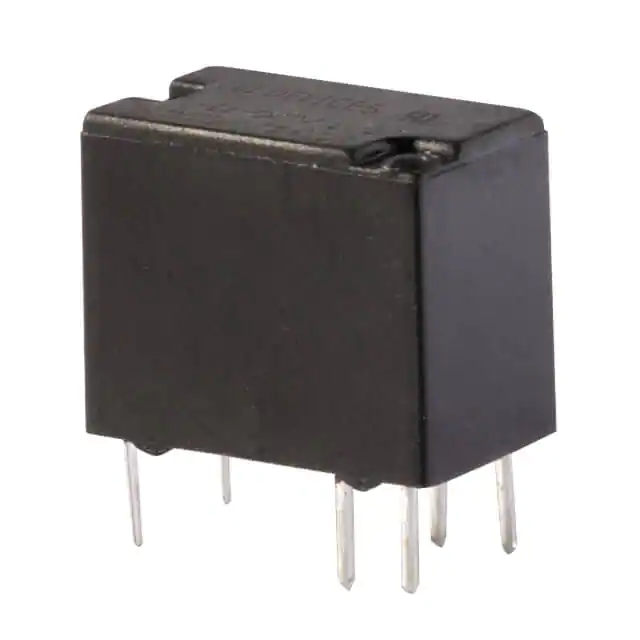

SR3-5V-150-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
1,408 | - |
|
Datasheet | SR3 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 29.9 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

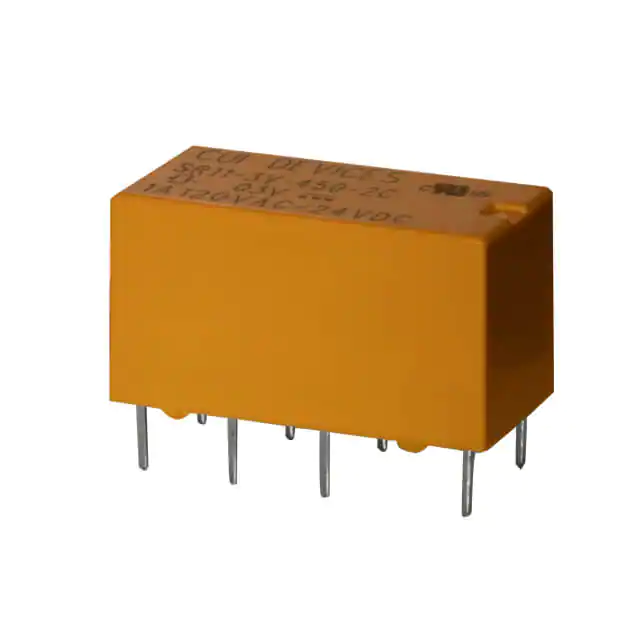

SR11-3V-200-2CRELAY GENERAL PURPOSE DPDT 1A 3V |
788 | - |
|
Datasheet | SR11 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR11-12V-200-2CRELAY GEN PURPOSE DPDT 1A 12V |
288 | - |
|
Datasheet | SR11 | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 16.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR11-5V-200-2CRELAY GENERAL PURPOSE DPDT 1A 5V |
173 | - |
|
Datasheet | SR11 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
AGN210A03RELAY TELECOM DPDT 1A 3V |
862 | - |
|
Datasheet | AGN | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
Signal Relays, Up to 2 Amps FAQ
Common questions about selecting, comparing and sourcing Signal Relays, Up to 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Signal Relays, Up to 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Signal Relays, Up to 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Signal Relays, Up to 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Signal Relays, Up to 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
