Signal Relays, Up to 2 Amps
Browse available Signal Relays, Up to 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGN20024RELAY TELECOM DPDT 1A 24V |
11,049 | - |
|
Datasheet | AGN | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 9.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
AGQ20012RELAY TELECOM DPDT 2A 12V |
10,185 | - |
|
Datasheet | AGQ | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
AGN200S12RELAY TELECOM DPDT 1A 12V |
8,950 | - |
|
Datasheet | AGN | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGN200A12RELAY TELECOM DPDT 1A 12V |
8,929 | - |
|
Datasheet | AGN | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
AGQ200A4HRELAY TELECOM DPDT 2A 4.5V |
8,210 | - |
|
Datasheet | AGQ | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ2004HRELAY TELECOM DPDT 2A 4.5V |
6,482 | - |
|
Datasheet | AGQ | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 31 mA | Non Latching | - | PC Pin | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGN200A4HRELAY TELECOM DPDT 1A 4.5V |
5,446 | - |
|
Datasheet | AGN | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 31 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ200S12ZRELAY TELECOM DPDT 2A 12V |
3,039 | - |
|
Datasheet | AGQ | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | Gull Wing | - | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ200A03RELAY TELECOM DPDT 2A 3V |
2,556 | - |
|
Datasheet | AGQ | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGN2104HRELAY TELECOM DPDT 1A 4.5V |
1,738 | - |
|
Datasheet | AGN | Tube | Active | Through Hole | 4.5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 22.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.38 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ200A03ZRELAY TELECOM DPDT 2A 3V |
1,449 | - |
|
Datasheet | AGQ | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ210S03ZRELAY TELECOM DPDT 2A 3V |
56,938 | - |
|
Datasheet | AGQ | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ210A03ZRELAY TELECOM DPDT 2A 3V |
45,892 | - |
|
Datasheet | AGQ | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ200S24ZRELAY TELECOM DPDT 2A 24V |
21,993 | - |
|
Datasheet | AGQ | Tape & Reel (TR) | Active | Surface Mount | 24VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 9.6 mA | Non Latching | - | Gull Wing | - | - | 18 VDC | 2.4 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ200S4HRELAY TELECOM DPDT 2A 4.5V |
4,732 | - |
|
Datasheet | AGQ | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 31 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
AGQ210A03RELAY TELECOM DPDT 2A 3V |
1,090 | - |
|
Datasheet | AGQ | Tube | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.25 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

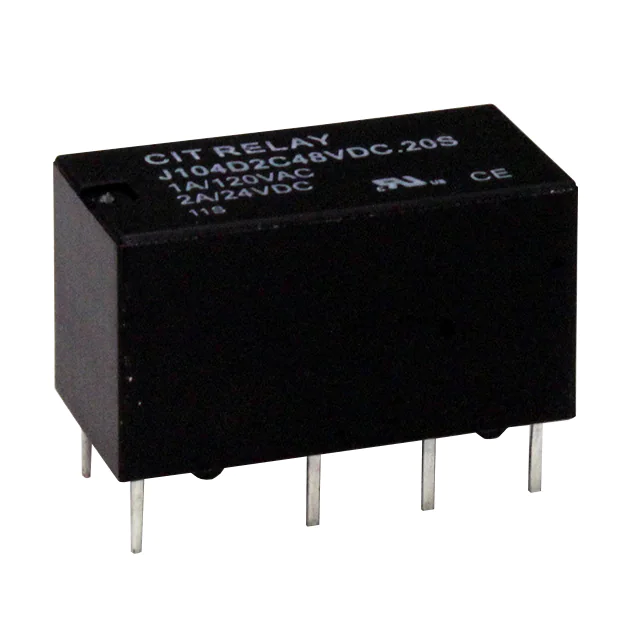

J104D2C48VDC.20SRELAY GEN PURPOSE DPDT 2A 48V |
3,845 | - |
|
Datasheet | J104D | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 6 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
TX2-9VRELAY TELECOM DPDT 2A 9V |
1,327 | - |
|
Datasheet | TX | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
AGN200S12ZRELAY TELECOM DPDT 1A 12V |
29,446 | - |
|
Datasheet | AGN | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 9 VDC | 1.2 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
TX2-5VRELAY TELECOM DPDT 2A 5V |
17,584 | - |
|
Datasheet | TX | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
Signal Relays, Up to 2 Amps FAQ
Common questions about selecting, comparing and sourcing Signal Relays, Up to 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Signal Relays, Up to 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Signal Relays, Up to 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Signal Relays, Up to 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Signal Relays, Up to 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
