Signal Relays, Up to 2 Amps
Browse available Signal Relays, Up to 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,384 | - |
|
Datasheet | TF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,573 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-12VRELAY GEN PURPOSE DPDT 1A 12V |
4,711 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-24VRELAY GEN PURPOSE DPDT 1A 24V |
2,838 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
3,056 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-12VRELAY GEN PURPOSE DPDT 1A 12V |
1,766 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-24VRELAY GEN PURPOSE DPDT 1A 24V |
2,663 | - |
|
Datasheet | TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 12.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TK1-12VRELAY GEN PURPOSE SPDT 2A 12V |
3,017 | - |
|
Datasheet | TK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-24VRELAY GEN PURPOSE SPDT 2A 24V |
2,097 | - |
|
Datasheet | TK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 11.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

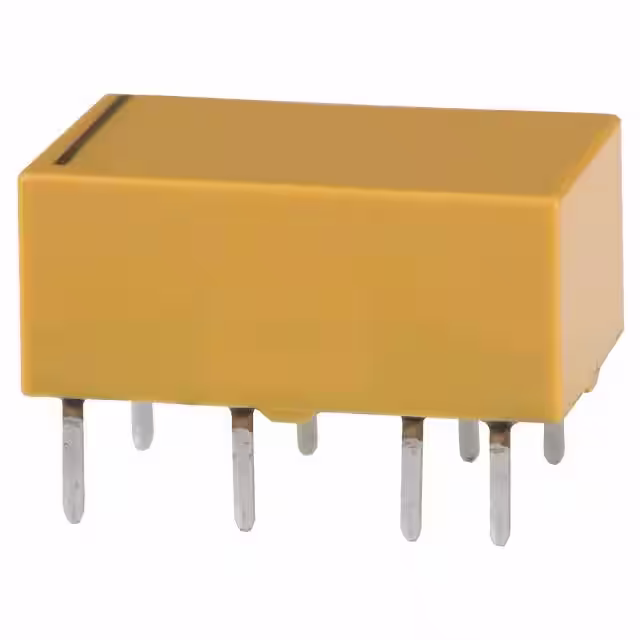

DF2E-DC5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,435 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,883 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-DC24VRELAY GEN PURPOSE DPDT 1A 24V |
4,111 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

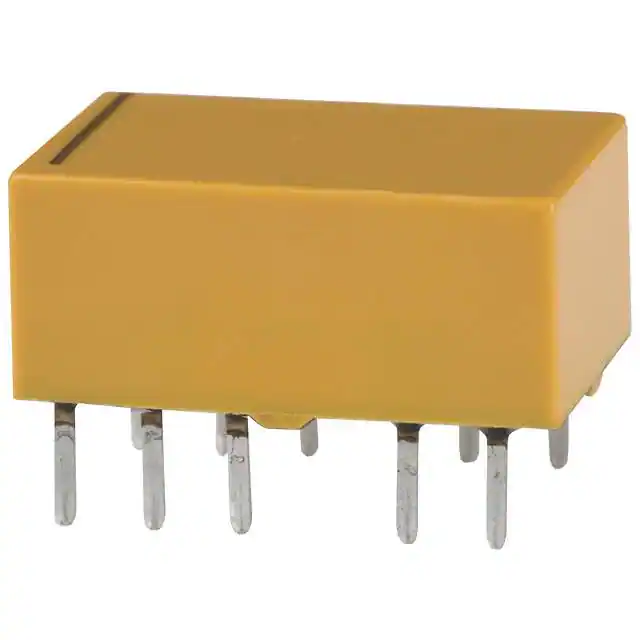

DF2E-L2-DC3VRELAY GENERAL PURPOSE DPDT 1A 3V |
2,908 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC5VRELAY GENERAL PURPOSE DPDT 1A 5V |
1,207 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 4 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC6VRELAY GENERAL PURPOSE DPDT 1A 6V |
4,312 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 4.8 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC9VRELAY GENERAL PURPOSE DPDT 1A 9V |
4,938 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 22.2 mA | Latching, Dual Coil | - | PC Pin | - | - | 7.2 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,755 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC24VRELAY GEN PURPOSE DPDT 1A 24V |
1,962 | - |
|
Datasheet | DF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 8.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 19.2 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DS2E-S-DC5VRELAY GENERAL PURPOSE DPDT 2A 5V |
4,546 | - |
|
Datasheet | DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-S-DC12VRELAY GEN PURPOSE DPDT 2A 12V |
3,843 | - |
|
Datasheet | DS | Tray | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
