Signal Relays, Up to 2 Amps
Browse available Signal Relays, Up to 2 Amps part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OUAZ-SH-112L,405RELAY TELECOM SPDT 1A 12V |
5,449 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 17 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
V23079G2011B301RELAY GEN PURPOSE DPDT 2A 4.5V |
4,714 | - |
|
Datasheet | V23079, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Non Latching | - | Gull Wing | - | - | 3.38 VDC | 0.45 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
EE2-3NDRELAY GENERAL PURPOSE DPDT 2A 3V |
2,073 | - |
|
Datasheet | EE2 | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | Gull Wing | - | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
T81N5D312-24RELAY TELECOM SPDT 1A 24V |
3,125 | - |
|
Datasheet | T81 | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 1.2 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
T81H5D312-05RELAY TELECOM SPDT 1A 5V |
3,224 | - |
|
Datasheet | T81 | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.25 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SH-105L,405RELAY TELECOM SPDT 1A 5V |
1,371 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SH-124L,900RELAY TELECOM SPDT 1A 24V |
24,144 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
V23079G1001B301RELAY GENERAL PURPOSE DPDT 2A 5V |
4,901 | - |
|
Datasheet | V23079, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 28 mA | Non Latching | - | Gull Wing | - | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
TQ2SS-L2-12V-ZRELAY TELECOM DPDT 2A 12V |
1,500 | - |
|
Datasheet | TQ-SMD | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 125VAC, 220VDC - Max | 250VA, 440W | 11.7 mA | Latching, Dual Coil | - | Gull Wing | - | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
C93450RELAY TELECOM DPDT 2A 5V |
1,833 | - |
|
Datasheet | MT2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 110 mA | Non Latching | - | PC Pin | - | - | 3.3 VDC | 0.5 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
C93422RELAY TELECOM DPDT 2A 5V |
978 | - |
|
Datasheet | MT2, AXICOM | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | - | PC Pin | - | - | 3.3 VDC | 0.5 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
C93431RELAY TELECOM DPDT 2A 24V |
6,641 | - |
|
Datasheet | MT2, AXICOM | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 23 mA | Non Latching | - | PC Pin | - | - | 15.6 VDC | 2.4 VDC | 5 ms | 3 ms | -55°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SH-112D,405RELAY TELECOM SPDT 1A 12V |
930 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

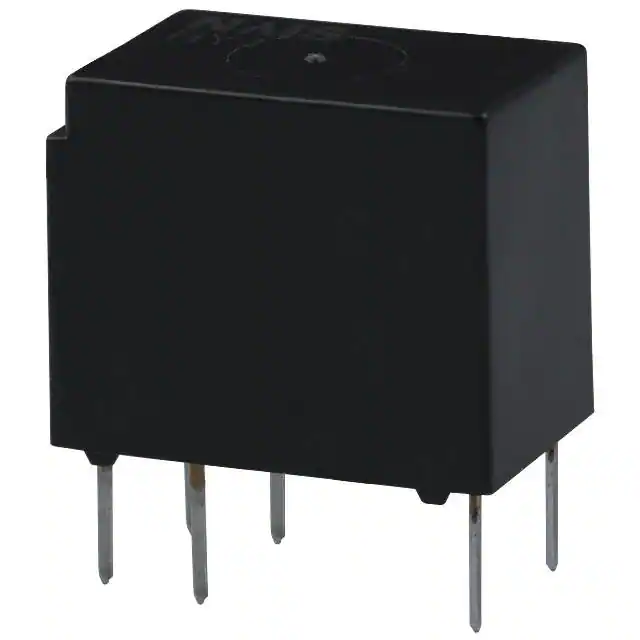

HY1Z-5VRELAY TELECOM SPDT 1A 5V |
3,682 | - |
|
Datasheet | HY | Tube | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 60VDC - Max | 60W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SS-109L,900RELAY TELECOM SPDT 1A 9V |
1,488 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.75 VDC | 0.9 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
6-1462037-8RELAY TELECOM DPDT 2A 12V |
1,461 | - |
|
Datasheet | IM, AXICOM | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Single Coil | - | J Lead | Sealed - Hermetically | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 85°C | Palladium (Pd), Ruthenium (Ru), Gold (Au) | Telecom | - | - |
|
OUAZ-SH-124DZ,800RELAY GEN PURP |
1,924 | - |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OUAZ-SH-112L,900RELAY TELECOM SPDT 1A 12V |
1,583 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 17 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 7 ms | -30°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
OUAZ-SH-112D,900RELAY TELECOM SPDT 1A 12V |
477 | - |
|
Datasheet | OUAZ, OEG | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 5 ms | 7 ms | -30°C ~ 60°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
1422002-8RELAY GEN PURPOSE DPDT 2A 2.4V |
4,808 | - |
|
Datasheet | V23079, AXICOM | Bulk | Active | Through Hole | 2.4VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 58.5 mA | Latching, Dual Coil | - | PC Pin | - | - | - | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
Signal Relays, Up to 2 Amps FAQ
Common questions about selecting, comparing and sourcing Signal Relays, Up to 2 Amps components through Winsun (HK) Electronics.
What should I check when selecting Signal Relays, Up to 2 Amps components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Signal Relays, Up to 2 Amps part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Signal Relays, Up to 2 Amps parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Signal Relays, Up to 2 Amps components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
