Solid State Relays (SSR)
Use the filters and product table below to compare Solid State Relays (SSR) components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PAA140PTRSSR RELAY SPST-NO 250MA 0-400V |
2,462 | - |
|
Datasheet | PAA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 400 V | 250 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 8-Flatpack | CSA, EN, UL | - | - |
|
|
LBA716SSSR RELAY SPST-NO/NC 1A 0-60V |
2,984 | - |
|
Datasheet | LBA, OptoMOS® | Tube | Active | Surface Mount | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 400 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, TUV, UL | - | - |
|
LBA716SSR RELAY SPST-NO/NC 1A 0-60V |
550 | - |
|
Datasheet | LBA, OptoMOS® | Tube | Active | Through Hole | SPST-NO + SPST-NC (1 Form A and B) | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 400 mOhms | PC Pin | -40°C ~ 85°C | 8-DIP | CSA, TUV, UL | - | - |
|
CPC1709JSSR RELAY SPST-NO 9A 0-60V |
326 | - |
|
Datasheet | CPC, OptoMOS® | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 1.2VDC | 0 V ~ 60 V | 9 A | 50 mOhms | PC Pin | -40°C ~ 85°C | ISOPLUS264™ | CSA, TUV, UL | - | - |
|
|
LAA710STRSSR RELAY SPST-NO 1A 0-60V |
2,895 | - |
|
Datasheet | LAA, OptoMOS® | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) x 2 | AC, DC | 1.2VDC | 0 V ~ 60 V | 1 A | 500 mOhms | Gull Wing | -40°C ~ 85°C | 8-SMD | CSA, EN, UL | - | - |
|

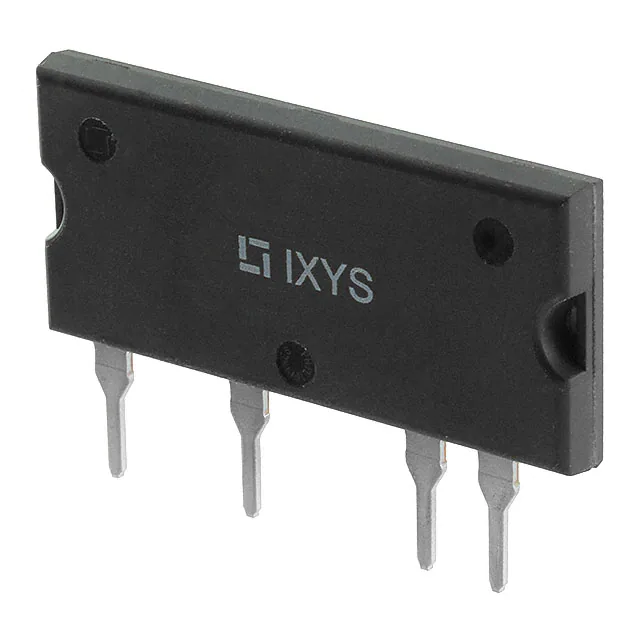

CPC40055STSSR RELAY SPST-NO 5A 0-800V |
1,451 | - |
|
Datasheet | CPC | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 800 V | 5 A | - | PC Pin | -40°C ~ 85°C | 4-SIP | CSA, UL | - | - |
|
CPC1230NSSR RELAY SPST-NO 120MA 0-350V |
320 | - |
|
Datasheet | CPC, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 350 V | 120 mA | 30 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | CSA, TUV, UL | - | - |
|
|
CPC1016NSSR RELAY SPST-NO 100MA 0-100V |
10,861 | - |
|
Datasheet | CPC, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 100 V | 100 mA | 16 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | CSA, TUV, UL | - | - |
|
CPC1972GSTRSSR RELAY SPST-NO 250MA 0-800V |
3,273 | - |
|
Datasheet | CPC | Tape & Reel (TR) | Active | Surface Mount | SPST-NO (1 Form A) | AC, Zero Cross | 1.2VDC | 0 V ~ 800 V | 250 mA | - | Gull Wing | -40°C ~ 85°C | 6-SMD | CSA, UL | - | - |
|
|
CPC1009NSSR RELAY SPST-NO 150MA 0-100V |
23,689 | - |
|
Datasheet | CPC, OptoMOS® | Tube | Active | Surface Mount | SPST-NO (1 Form A) | AC, DC | 1.2VDC | 0 V ~ 100 V | 150 mA | 8 Ohms | Gull Wing | -40°C ~ 85°C | 4-SOP | CSA, TUV, UL | - | - |
Solid State Relays (SSR) FAQ
Common questions about filtering, comparing and sourcing Solid State Relays (SSR) components.
How can I narrow the Solid State Relays (SSR) selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific Solid State Relays (SSR) part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
