Strain Gauges
Browse available Strain Gauges part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Pattern Type | Strain Range | Resistance | Resistance Tolerance | Length - Active | Length - Overall Pattern | Length - Overall | Width - Active | Width - Overall Pattern | Width - Overall | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMF406034CEA-05-250UWA-120 - STRAIN GAGES |
3,873 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±5% | 120 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405126CEA-00-250UWA-120 - STRAIN GAGES |
1,528 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±5% | 120 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405694CEA-09-062UWA-120 - STRAIN GAGES |
3,021 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF406033CEA-05-062UWA-120 - STRAIN GAGES |
1,522 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405125CEA-13-250UWA-120 - STRAIN GAGES |
1,549 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±5% | 120 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405477CEA-13-062UWA-120 - STRAIN GAGES |
2,176 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405695CEA-00-062UWA-120 - STRAIN GAGES |
1,236 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405476CEA-06-062UWA-120 - STRAIN GAGES |
2,651 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±3% | 120 Ohms | ±0.3% | 0.062" (1.57mm) | 0.220" (5.59mm) | 0.31" (7.9mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.19" (4.8mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF405124CEA-06-250UWA-120 - STRAIN GAGES |
4,549 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±5% | 120 Ohms | ±0.3% | 0.250" (6.35mm) | 0.450" (11.43mm) | 0.55" (14.0mm) | 0.180" (4.57mm) | 0.180" (4.57mm) | 0.27" (6.9mm) | -103 ~ 347°F (-75 ~ 175°C) |
|
|
MMF307345C2A-06-062LR-350 STRAIN GAGES |
1,791 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMF307353C2A-13-062LR-350 STRAIN GAGES |
2,310 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMF019764ED-DY-125AD-350/E STRAIN GAGES ( |
1,177 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMF305237L2A-06-250LW-350 STRAIN GAGES (5 |
1,957 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
MMF307425C2A-13-125LT-350 STRAIN GAGES (1 |
1,255 | - |
|
Datasheet | C2A | Bulk | Obsolete | Tee Rosette | ±3% | 350 Ohms | ±0.6% | 0.125" (3.18mm) | 0.243" (6.17mm) | 0.29" (7.4mm) | 0.150" (3.81mm) | 0.340" (8.64mm) | 0.40" (10.2mm) | -60 ~ 180°F (-50 ~ 80°C) |
|
|
MMF313009C2A-06-125WW-350 STACKED ROSETTE |
3,403 | - |
|
Datasheet | C2A | Bulk | Obsolete | Stacked Rosette | ±3% | 350 Ohms | ±0.6% | 0.125" (3.18mm) per section | 0.241" (6.12mm) | 0.31" (7.9mm) | 0.070" (1.79mm) per section | 0.280" (7.11mm) | 0.38" (9.5mm) | -60 ~ 150°F (-50 ~ 65°C) |
|
|
MMF001527EP-08-125AC-350 STRAIN GAGES (5/ |
4,251 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
MMF313173EA-06-125AC-350/E STRAIN GAGES ( |
2,046 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|

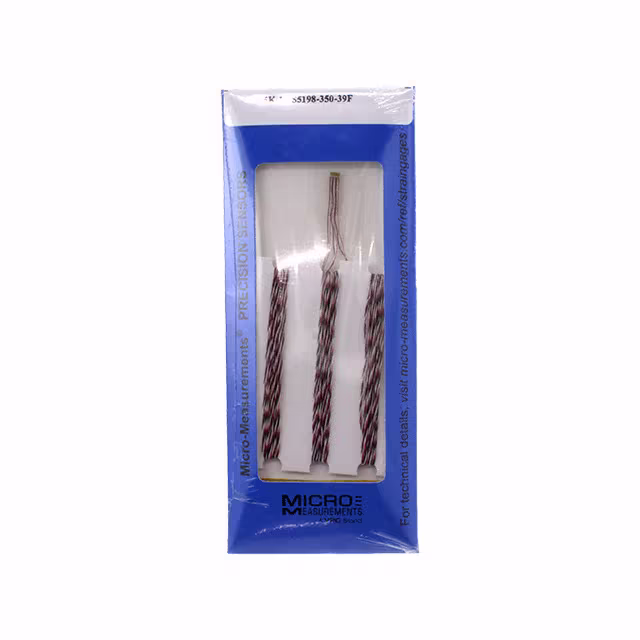

MMF404066C5K-13-S5198-350-39F |
4,480 | - |
|
Datasheet | C5K | Box | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) |
|
|
MMF402174C5K-09-S5198-350-39F - STRAIN GA |
3,260 | - |
|
Datasheet | C5K | Bag | Active | Rectangular Rosette | ±1.5% | 350 Ohms | ±0.5% | 0.014" (0.36mm) per section | 0.071" (1.81mm) | 0.09" (2.2mm) | 0.012" (0.30mm) per section | 0.143" (3.63mm) | 0.15" (3.9mm) | -100 ~ 400°F (-75 ~ 205°C) |
|
|
MMF405109CEA-00-250UNA-350/SP11 - STRAIN |
1,859 | - |
|
Datasheet | CEA | Bag | Active | Linear | ±5% | 350 Ohms | ±0.2% | 0.250" (6.35mm) | 0.415" (10.54mm) | 0.52" (13.2mm) | 0.120" (3.05mm) | 0.120" (3.05mm) | 0.22" (5.6mm) | -103 ~ 347°F (-75 ~ 175°C) |
Strain Gauges FAQ
Common questions about selecting, comparing and sourcing Strain Gauges components through Winsun (HK) Electronics.
What should I check when selecting Strain Gauges components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Strain Gauges part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Strain Gauges parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Strain Gauges components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
