SCRs - Modules
Use the filters and product table below to compare SCRs - Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TT190N16SOFHPSA2SCR MODULE 1.6KV 275A MODULE |
31 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 190 A | 275 A | 2.5 V | 145 mA | - | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TT250N16KOFHPSA1SCR MODULE 1.6KV MODULE |
28 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | - | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|

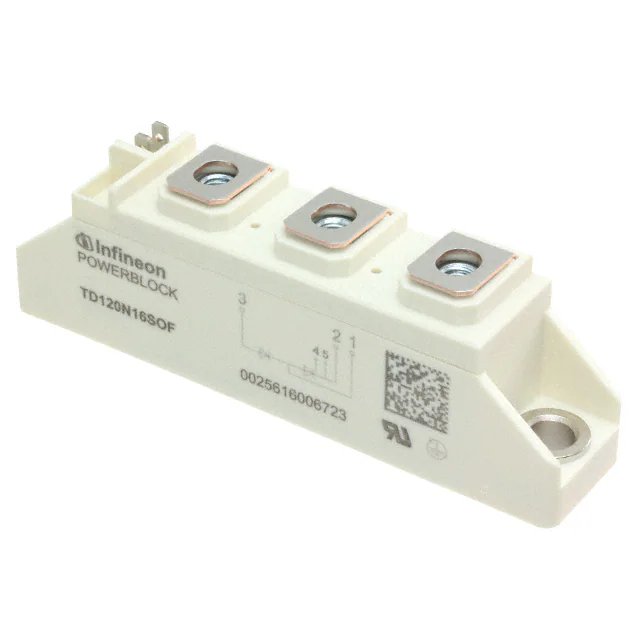

TD120N16SOFHPSA1THYRISTOR MODULE 1600V 120A |
128 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 119 A | 190 A | 2.5 V | 100 mA | - | 250 mA | 130°C (TJ) | - | - | Chassis Mount |
|
TTB6C95N16LOFPHASE CONTROL THYRISTOR MODULE |
236 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 130 A | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TTW3C115N16LOFHOSA1PHASE CONTROL THYRISTOR MODULE |
381 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | - | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TTB6C95N12LOF_B1BRIDGE RECTIFIER & AC-SWITCHES |
210 | - |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TTW3C145N16LOFPHASE CONTROL THYRISTOR MODULE |
2,109 | - |
|
Datasheet | - | Module | Bulk | Active | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.4 kV | - | 120 A | 2.5 V | 150 mA | 12500A | 200 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
TDB6HK135N16LOFHOSA1SCR MODULE VDRM 1600V 70A |
3,251 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
TTW3C85N16LOFHOSA1SCR MODULE 1.6KV 75A MODULE |
6,270 | - |
|
Datasheet | - | Module | Bulk | Discontinued at Digi-Key | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 106 A | 75 A | 2.5 V | 150 mA | 720A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TTB6C135N16LOFHOSA1SCR MODULE 1.6KV 100A MODULE |
3,595 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Bridge, 3-Phase - All SCRs | 6 SCRs | 1.6 kV | 173 A | 100 A | 2.5 V | 150 mA | 1000A @ 50Hz | 200 mA | -40°C ~ 125°C | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about filtering, comparing and sourcing SCRs - Modules components.
How can I narrow the SCRs - Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs - Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
