SCRs - Modules
Use the filters and product table below to compare SCRs - Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9G0081003DHSCR PHASE CTRL MOD 800V 1000A |
8,040 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 800 V | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T820227504DHSCR PHASE CTRL MOD 2200V 750A |
4,665 | - |
|
Datasheet | - | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.2 kV | 750 A | 1175 A | 3 V | 150 mA | 10950A, 12000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
T9G0101003DHSCR PHASE CTRL MOD 1000V 1000A |
7,108 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0101203DHSCR PHASE CTRL MOD 1000V 1200A |
4,354 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

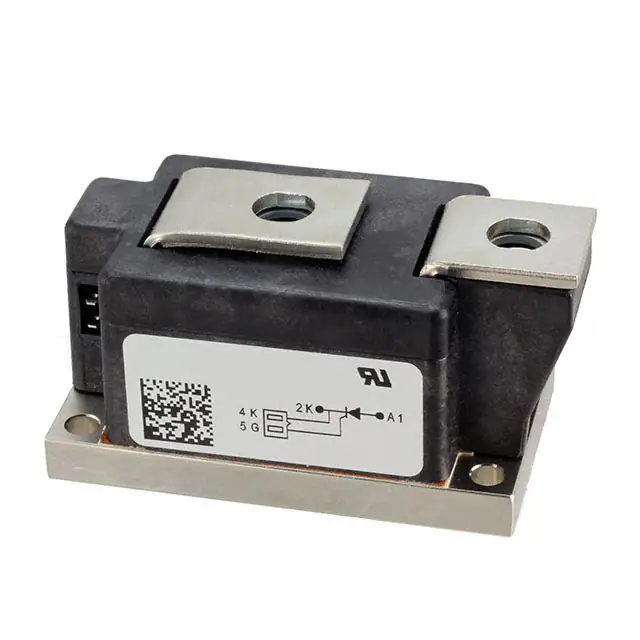

LS431650SCR MOD ISO SGL 1600V 500A |
9,190 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Active | Single | 1 SCR | 1.6 kV | 575 A | 900 A | 3 V | 200 mA | 16300A, 17000A | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
T9G0121003DHSCR PHASE CTRL MOD 1200V 1000A |
3,616 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0121203DHSCR PHASE CTRL MOD 1200V 1200V |
7,280 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0141003DHSCR PHASE CTRL MOD 1400V 1000A |
7,694 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.4 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0141203DHSCR PHASE CTRL MOD 1400V 1200A |
7,341 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.4 kV | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T9G0161003DHSCR PHASE CTRL MOD 1600V 1000A |
9,335 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.6 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about filtering, comparing and sourcing SCRs - Modules components.
How can I narrow the SCRs - Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs - Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
