SCRs - Modules
Use the filters and product table below to compare SCRs - Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD631615BSCR MOD DUAL 1600V 150A |
5,315 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | 235 A | 2 V | 150 mA | 5000A, 5250A | 150 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T620143004DNSCR PHASE CTRL MOD 1400V 300A |
2,939 | - |
|
Datasheet | - | TO-200AB, A-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.4 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount, 8" Wire Lead |
|
|
T7H8066504DNSCR PHASE CTRL MOD 600V 650A |
8,348 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 600 V | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T720063504DNSCR PHASE CTRL MOD 600V 350A |
4,401 | - |
|
Datasheet | - | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 600 V | 350 A | - | 3 V | 150 mA | - | - | - | - | - | Clamp On |
|

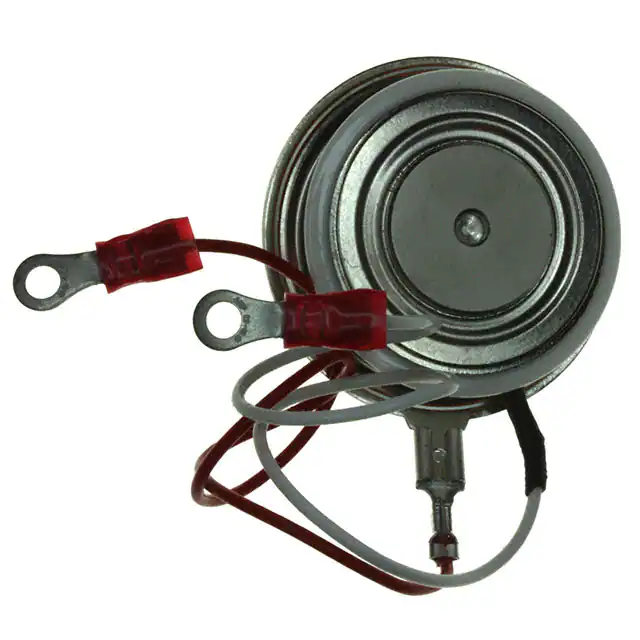

T620163004DNSCR PHASE CTRL MOD 1600V 300A |
7,323 | - |
|
Datasheet | - | TO-200AB, A-PUK | Bulk | Active | Single | 1 SCR | 1.6 kV | 300 A | 470 A | 3 V | 150 mA | 5000A, 5500A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount, 8" Wire Lead |
|
|
T7H8126504DNSCR PHASE CTRL MOD 1200V 650A |
6,034 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T720105504DNSCR PHASE CTRL MOD 1000V 550A |
6,425 | - |
|
Datasheet | - | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
T7S0176504DNSCR PHASE CTRL MOD 1700V 650A |
5,889 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Obsolete | Single | 1 SCR | 1.7 kV | 650 A | 1020 A | 3 V | 150 mA | 8200A, 9000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
T720125504DNSCR PHASE CTRL MOD 1200V 550A |
5,353 | - |
|
Datasheet | - | TO-200AC, B-PUK | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 550 A | 850 A | 3 V | 150 mA | 9125A, 10000A | - | -40°C ~ 125°C (TJ) | - | - | Clamp On |
|
|
T7H8165504DNSCR PHASE CTRL MOD 550A 1600V |
9,451 | - |
|
Datasheet | - | - | Bulk | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - |
SCRs - Modules FAQ
Common questions about filtering, comparing and sourcing SCRs - Modules components.
How can I narrow the SCRs - Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs - Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
