SCRs - Modules
Use the filters and product table below to compare SCRs - Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-T50RIA20SCR PHASE CONT 200V 50A D-55 |
6,056 | - |
|
Datasheet | - | D-55 | Bulk | Active | Single | 1 SCR | 200 V | 50 A | 80 A | 2.5 V | 100 mA | 1310A, 1370A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
IRKT27/16ASCR DBL HISCR 1600V 25A ADDAPAK |
3,686 | - |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT26/14ASCR DBL HISCR 1400V 27A ADDAPAK |
9,016 | - |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKT26/16ASCR DBL HISCR 1600V 27A ADDAPAK |
5,501 | - |
|
Datasheet | - | ADD-A-PAK (3 + 4) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 27 A | 60 A | 2.5 V | 150 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-T50RIA40SCR PHASE CONT 400V 50A D-55 |
7,538 | - |
|
Datasheet | - | D-55 T-Module | Bulk | Active | Single | 1 SCR | 400 V | 50 A | 80 A | 2.5 V | 100 mA | 1310A, 1370A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

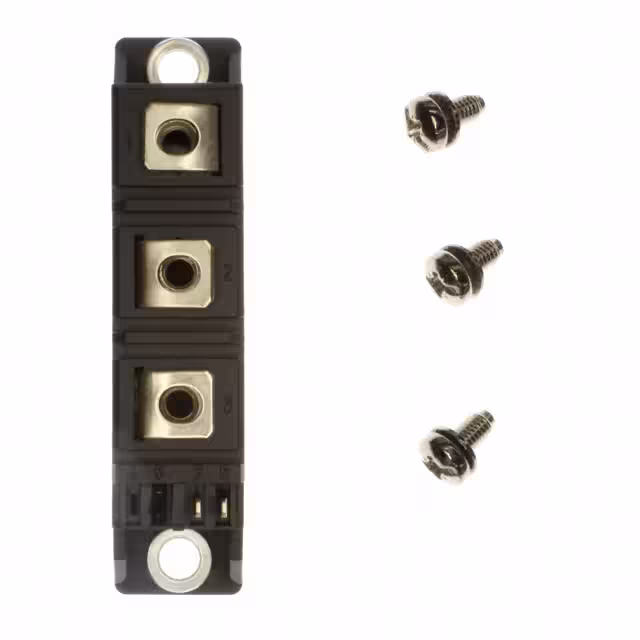

IRKL56/04ASCR DBL HISCR 400V 60A ADDAPAK |
2,346 | - |
|
Datasheet | - | ADD-A-PAK (3 + 2) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 60 A | 135 A | 2.5 V | 150 mA | 1310A, 1370A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKL56/12ASCR DBL HISCR 1200V 60A ADDAPAK |
3,115 | - |
|
Datasheet | - | ADD-A-PAK (3 + 2) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 60 A | 135 A | 2.5 V | 150 mA | 1310A, 1370A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKH41/04ASCR DBL LOSCR 400V 45A ADD-A-PAK |
6,539 | - |
|
Datasheet | - | ADD-A-PAK (3 + 2) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 45 A | 100 A | 2.5 V | 150 mA | 850A, 890A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKH41/06ASCR DBL LOSCR 600V 45A ADD-A-PAK |
5,350 | - |
|
Datasheet | - | ADD-A-PAK (3 + 2) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | 45 A | 100 A | 2.5 V | 150 mA | 850A, 890A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
IRKH41/12ASCR DBL LOSCR 1200V 45A ADDAPAK |
5,133 | - |
|
Datasheet | - | ADD-A-PAK (3 + 2) | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 45 A | 100 A | 2.5 V | 150 mA | 850A, 890A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about filtering, comparing and sourcing SCRs - Modules components.
How can I narrow the SCRs - Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs - Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
