SCRs - Modules
Use the filters and product table below to compare SCRs - Modules components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1892CAH400MODULE SCR/DIODE 90A 120VAC |
7,180 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 400 V | - | - | 3 V | 150 mA | 1950A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
L613FMODULE SCR/DIO 42.5A 280VAC PCB |
4,830 | - |
|
Datasheet | L | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 800 V | - | - | 3 V | 100 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Through Hole |
|

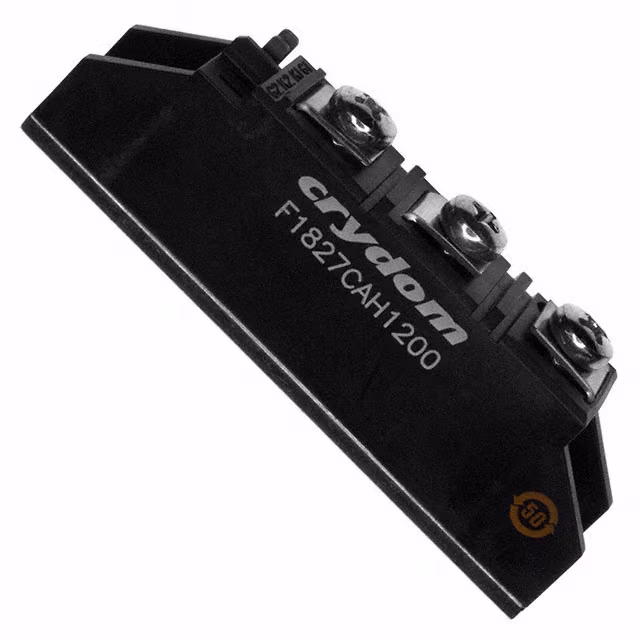

F1827CAH1200MODULE SCR/DIODE 25A 480VAC |
5,631 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Common Anode - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1827HD1200MODULE SCR/DIODE 25A 480VAC |
3,665 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505015FVMODULE POWER 50A 1200V SCR CC |
2,338 | - |
|
Datasheet | M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842SD1000MODULE SCR/DIODE 40A 380VAC |
9,467 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1842SDK1000MODULE SCR/DIODE 40A 380VAC |
6,321 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1000A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1827HD1400MODULE SCR/DIODE 25A 530VAC |
7,676 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | - | - | 3 V | 150 mA | 400A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
M505015FMODULE SCR 50A 480VAC |
2,734 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857SD1000MODULE SCR/DIODE 55A 380VAC |
4,511 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about filtering, comparing and sourcing SCRs - Modules components.
How can I narrow the SCRs - Modules selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs - Modules part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
