SCRs - Modules
Browse available SCRs - Modules part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F18107SDK1400MODULE SCR/DIODE 105A 530VAC |
2,501 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | - | - | 3 V | 150 mA | 2250A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T700N22TOFXPSA1SCR MODULE 2200V 1500A DO200AB |
7,845 | - |
|
Datasheet | - | DO-200AB, B-PUK | Tray | Obsolete | Single | 1 SCR | 2.2 kV | 700 A | 1500 A | 2.2 V | 250 mA | 13500A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Clamp On |
|
|
ETD630N16P60TIMHPSA1THYR / DIODE MODULE DK |
5,722 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 635 A | 700 A | 2 V | 250 mA | 19800A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
VSKH250-16SCR DBL LOSCR 1600V 250A MAGNAPK |
3,076 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | - | - | - | Chassis Mount |
|
|
ETD540N22P60TIMHPSA1THYR / DIODE MODULE DK |
4,213 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
VSKT250-16SCR DBL HISCR 1600V 250A MAGNPAK |
9,840 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | - | - | - | Chassis Mount |
|
TD250N16KOFTIMHPSA1SCR MODULE 1800V 410A MODULE |
1 | - |
|
Datasheet | - | Module | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
VSKHF200-12HJSCR MOD PWR 1200V 200A MAGNAPAK |
2,559 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 200 A | 444 A | 3 V | 200 mA | 7600A, 8000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VSKLF200-12HJSCR DBL HISCR 1200V 200A MAGNPAK |
5,276 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 200 A | 444 A | 3 V | 200 mA | 7600A, 8000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T1410N06TOFXPSA1SCR MODULE 600V 2500A DO200AB |
8,704 | - |
|
Datasheet | - | DO-200AB, B-PUK | Tray | Obsolete | Single | 1 SCR | 600 V | 1490 A | 2500 A | 1.5 V | 250 mA | 23000A @ 50Hz | 300 mA | -40°C ~ 140°C | - | - | Clamp On |
|
|
ETT630N18P60XPSA1THYR / DIODE MODULE DK |
9,692 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 628 A | 700 A | 2 V | 250 mA | 20000A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
|
VS-VSKH570-18PBFSCR MODULE 1.8KV 895A MAGNAPAK |
4,349 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 570 A | 895 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | -40°C ~ 135°C (TJ) | - | - | Chassis Mount |
|
M5010064VM SERIES POWER MODULE |
6,669 | - |
|
Datasheet | M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH570-16PBFSCR MODULE 1.6KV 894A MAGNAPAK |
2,299 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 570 A | 894 A | 3 V | 200 mA | 18000A, 18800A | 500 mA | -40°C ~ 135°C (TJ) | - | - | Chassis Mount |
|
|
M5010015M SERIES POWER MODULE |
5,487 | - |
|
Datasheet | M50 | Module | Bulk | Obsolete | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VSKTF180-12HJSCR DBL 2SCR 1200V 180A MAGNAPAK |
2,540 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 180 A | 400 A | 3 V | 200 mA | 7130A, 7470A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
VSKTF180-12HKSCR DBL 2SCR 1200V 180A MAGNAPAK |
2,240 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 180 A | 400 A | 3 V | 200 mA | 7130A, 7470A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MDC500-16IO1DIODE MODULE 1600V WC-500 |
9,579 | - |
|
Datasheet | - | WC-500 | Tray | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC224-24IO1MOD THYRISTOR DUAL 24KV |
7,175 | - |
|
Datasheet | - | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 2.4 kV | 240 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

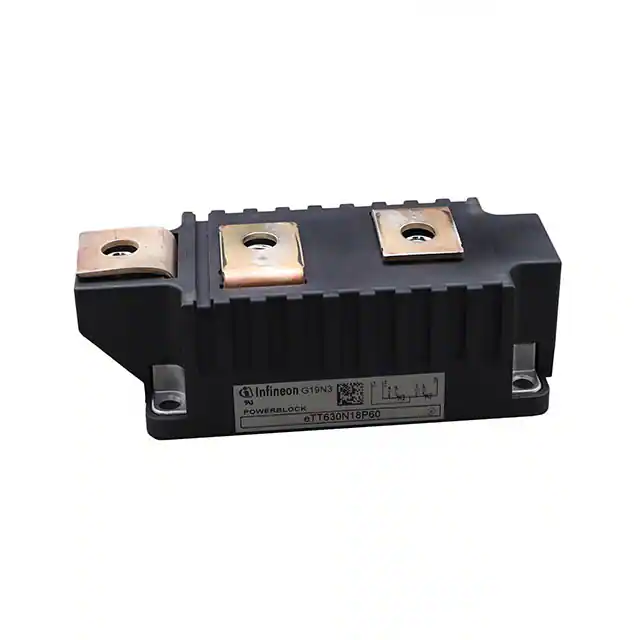

ETT630N18P60HPSA160 MM THYRISTOR/THYRISTOR MODULE |
5,138 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 628 A | 700 A | 2 V | 250 mA | 20000A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
SCRs - Modules FAQ
Common questions about selecting, comparing and sourcing SCRs - Modules components through Winsun (HK) Electronics.
What should I check when selecting SCRs - Modules components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs - Modules part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs - Modules parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs - Modules components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
