SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "S2008R")
|
S2008RSCR 200V 8A TO220 |
4,282 | - |
|
Datasheet | - | TO-220-3 | Bulk | Obsolete | 200 V | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
|
S6008RSCR 600V 8A TO220 |
4,766 | - |
|
Datasheet | - | TO-220-3 | Bulk | Discontinued at Digi-Key | 600 V | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
T106B1SCR 200V 4A TO202 |
8,987 | - |
|
Datasheet | - | TO-202 Long Tab | Bulk | Obsolete | 200 V | 800 mV | 200 µA | 2.2 V | 2.5 A | 4 A | 5 mA | 2 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-202 |
|
|
S4008RSCR 400V 8A TO220 |
4,637 | - |
|
Datasheet | - | TO-220-3 | Bulk | Discontinued at Digi-Key | 400 V | 1.5 V | 15 mA | 1.6 V | 5.1 A | 8 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
|
T106D1SCR 400V 4A TO202 |
2,223 | - |
|
Datasheet | - | TO-202 Long Tab | Bulk | Obsolete | 400 V | 800 mV | 200 µA | 2.2 V | 2.5 A | 4 A | 5 mA | 2 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-202 |
|

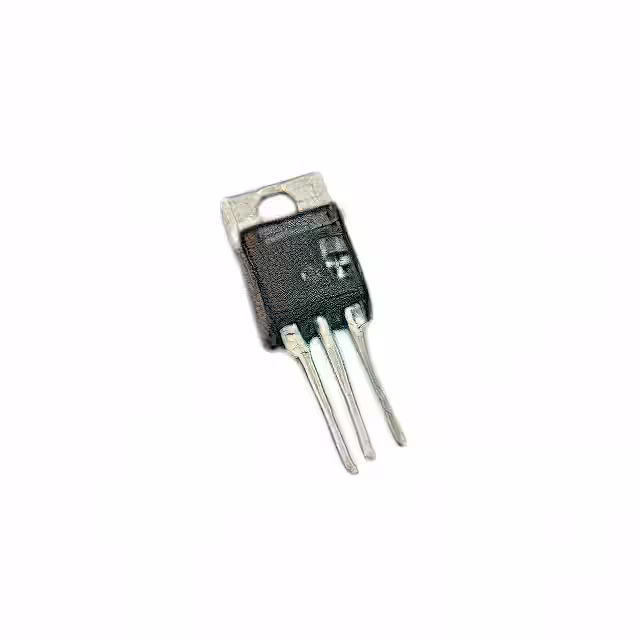

S6025LSCR 600V 25A TO220 |
3,204 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 600 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
T106M1SCR 600V 4A TO202 |
7,353 | - |
|
Datasheet | - | TO-202 Long Tab | Bulk | Obsolete | 600 V | 800 mV | 200 µA | 2.2 V | 2.5 A | 4 A | 5 mA | 2 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-202 |
,TO-226_straightlead.jpg "EC103B")
|
EC103BSCR 200V 800MA TO92 |
9,153 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | 200 V | 800 mV | 200 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 1 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-92 |
|
S6015LSCR 600V 15A TO220 |
5,706 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 600 V | 1.5 V | 30 mA | 1.6 V | 9.5 A | 15 A | 40 mA | 10 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S4008LS2SCR 400V 8A TO220 |
7,072 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 400 V | 800 mV | 200 µA | 1.6 V | 5.1 A | 8 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S4008FS21SCR 400V 8A TO202 |
8,242 | - |
|
Datasheet | - | TO-202 Long Tab | Bulk | Obsolete | 400 V | 800 mV | 200 µA | 1.6 V | 5.1 A | 8 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-202 |
|
|
S2006LSCR 200V 6A TO220 |
9,997 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Obsolete | 200 V | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S4006LSCR 400V 6A TO220 |
7,257 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 400 V | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 10 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S4025LSCR 400V 25A TO220 |
4,294 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 400 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S201ESCR 200V 1A TO92 |
5,702 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | 200 V | 1.5 V | 10 mA | 1.6 V | 640 mA | 1 A | 30 mA | 10 µA | 25A, 30A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-92 |
|
|
S4010FS21SCR 400V 10A TO202 |
5,629 | - |
|
Datasheet | - | TO-202 Short Tab | Bulk | Obsolete | 400 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-202 |
|
|
S4010LS2SCR 400V 10A TO220 |
9,036 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Bulk | Discontinued at Digi-Key | 400 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220 Isolated Tab |
|
|
S4025RSCR 400V 25A TO220 |
2,297 | - |
|
Datasheet | - | TO-220-3 | Bulk | Discontinued at Digi-Key | 400 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
|
TCR22-4SCR 200V 1.5A TO92 |
6,375 | - |
|
Datasheet | - | TO-226-3, TO-92-3 (TO-226AA) | Bulk | Obsolete | 200 V | 800 mV | 200 µA | 1.5 V | 950 mA | 1.5 A | 5 mA | 1 µA | 16A, 20A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-92 |
|
|
S6025RSCR 600V 25A TO220 |
6,986 | - |
|
Datasheet | - | TO-220-3 | Bulk | Discontinued at Digi-Key | 600 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
