SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S6055RTPSCR 600V 55A TO220AB-R |
956 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
|
VS-25TTS12FP-M3SCR 1.2KV 25A TO220AB FP |
602 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Active | 1.2 kV | 2 V | 45 mA | 1.25 V | 16 A | 25 A | 150 mA | 500 µA | 270A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB Full-Pak |
|
S8055RTPSCR 800V 55A TO220 |
564 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
S8055NRPSCR 800V 55A TO263 |
470 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
S4040NQRPSCR 400V 40A TO263 |
1,000 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
VS-80TPS16L-M3SCR 1.6KV 126A TO247AD |
602 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.66 V | 80 A | 126 A | 200 mA | 200 µA | 1kA @ 50Hz | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
CS30-16IO1SCR 1.6KV 49A TO247AD |
1,836 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | - | - | Through Hole | TO-247AD |
, TO-218AC.jpg "S8055MTP")
|
S8055MTPSCR 800V 55A TO218 |
919 | - |
|
Datasheet | - | TO-218-3, TO-218AC | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Non-Isolated Tab |
|
BTW69-600RGSCR 600V 50A TOP3 |
673 | - |
|
Datasheet | - | TOP-3 | Tube | Active | 600 V | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
BTW69-1200RGSCR 1.2KV 50A TOP3 |
350 | - |
|
Datasheet | - | TOP-3 | Tube | Active | 1.2 kV | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
CS45-16IO1SCR 1.6KV 75A TO247AD |
14,061 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | - | - | Through Hole | TO-247AD |
|
|
SK055NRPSCR 1KV 55A TO263 |
8,815 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 30 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
VS-40TPS12A-M3SCR 1.2KV 55A TO247AC |
485 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.2 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
BTW69-1200NSCR 1.2KV 50A TOP3 |
608 | - |
|
Datasheet | - | TOP-3 | Tube | Active | 1.2 kV | 1.3 V | 50 mA | 1.6 V | 31 A | 50 A | 100 mA | 10 µA | 700A, 763A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TOP3 |
|
|
VS-40TPS16-M3SCR 1.6KV 55A TO247AC |
488 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 2.5 V | 150 mA | 1.85 V | 35 A | 55 A | 200 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-247AC |
|
SCT1675CSSCR 1.6KV 75A TO247S |
174 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 1.5 V | 80 mA | 1.8 V | 48 A | 75 A | 120 mA | 50 µA | 750A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-247S |
|
BTW67-1000SCR 1KV 50A RD91 |
1,093 | - |
|
Datasheet | - | RD-91 | Bulk | Active | 1 kV | 1.3 V | 80 mA | 1.9 V | 32 A | 50 A | 150 mA | 10 µA | 580A, 610A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis Mount | RD91 |
|
S6065JTPSCR 600V 65A TO218X |
247 | - |
|
Datasheet | - | TO-218X-3 Isolated Tab | Tube | Active | 600 V | 2 V | 50 mA | 1.8 V | 41 A | 65 A | 80 mA | 20 µA | 800A, 950A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218X Isolated |
|

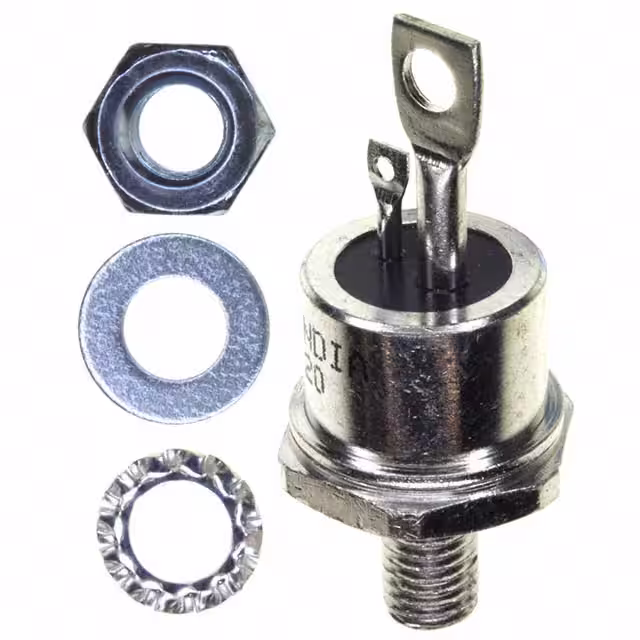

VS-50RIA100SCR 1KV 80A TO208AC |
134 | - |
|
Datasheet | - | TO-208AC, TO-65-3, Stud | Bulk | Active | 1 kV | 2.5 V | 100 mA | 1.6 V | 50 A | 80 A | 200 mA | 15 mA | 1430A, 1490A | Standard Recovery | -40°C ~ 125°C | - | - | Chassis, Stud Mount | TO-208AC (TO-65) |
|
|
CS20-25MO1FSCR 2.5KV I4-PAC |
182 | - |
|
Datasheet | - | i4-Pac™-5 (3 Leads) | Tube | Active | 2.5 kV | - | - | - | - | - | - | - | - | Standard Recovery | - | - | - | Through Hole | ISOPLUS i4-PAC™ |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
