SCRs
Use the filters and product table below to compare SCRs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2N6505GSCR 100V 25A TO220AB |
2,044 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 100 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 40 mA | 10 µA | 250A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6508GSCR 600V 25A TO220AB |
1,402 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 40 mA | 10 µA | 250A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6509GSCR 800V 25A TO220AB |
1,175 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 40 mA | 10 µA | 250A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6504GSCR 50V 25A TO220AB |
325 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 40 mA | 10 µA | 250A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
S4055RTPSCR 400V 55A TO220AB-R |
147 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
|
|
S6055RTPSCR 600V 55A TO220AB-R |
956 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 10 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
|

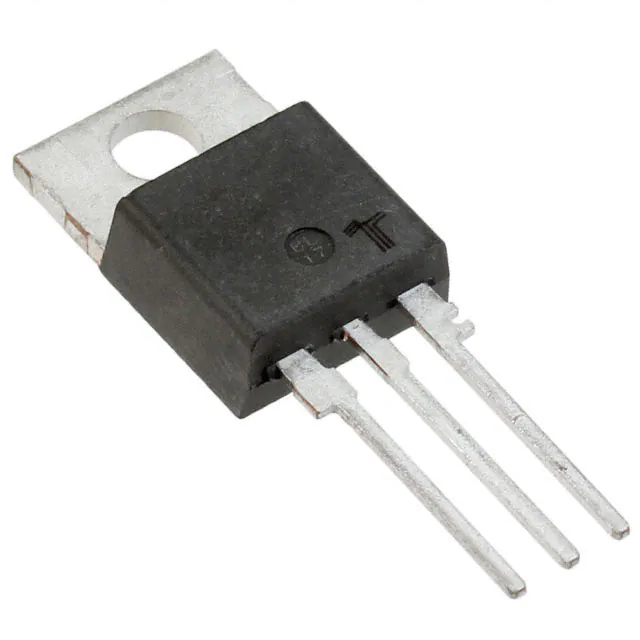

S8055RTPSCR 800V 55A TO220 |
564 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
S8055NRPSCR 800V 55A TO263 |
470 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
S4040NQRPSCR 400V 40A TO263 |
1,000 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 400 V | 1.5 V | 40 mA | 1.8 V | 25 A | 40 A | 60 mA | 10 µA | 430A, 520A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263 (D2PAK) |
, TO-218AC.jpg "S8055MTP")
|
S8055MTPSCR 800V 55A TO218 |
919 | - |
|
Datasheet | - | TO-218-3, TO-218AC | Tube | Active | 800 V | 1.5 V | 40 mA | 1.8 V | 35 A | 55 A | 60 mA | 20 µA | 550A, 650A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-218 Non-Isolated Tab |
SCRs FAQ
Common questions about filtering, comparing and sourcing SCRs components.
How can I narrow the SCRs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
