SCRs
Use the filters and product table below to compare SCRs components by manufacturer, availability, pricing reference and technical specifications. Review datasheets and key parameters to narrow the selection for your application.
If you already have a target part number, package, rating or quantity, send the requirement to Winsun (HK) Electronics for availability checks, BOM sourcing, shortage support and quotation assistance.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCR69-2GSCR 50V 25A TO220AB |
4,780 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 50 mA | 10 µA | 300A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6402GSCR 200V 16A TO220AB |
925 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 200 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
S6010DS2RPSCR 600V 10A TO252 |
9,027 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
2N6401GSCR 100V 16A TO220AB |
925 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 100 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
S8012DRPSCR 800V 12A TO252 |
18,961 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 800 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|

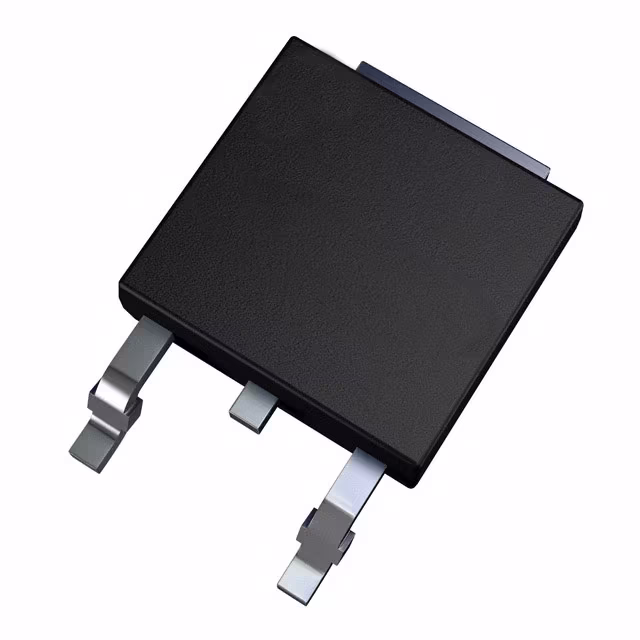

SV6016D1RPSCR 16A 600V HI TEMP TO-252 |
4,707 | - |
|
Datasheet | SV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 10.2 A | 16 A | 40 mA | 10 µA | 180A, 200A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
SJ6010DS2RPSCR 600V 10A TO252 |
10,206 | - |
|
Datasheet | SJ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 30 mA | 10 µA | 83A, 100A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
SK016RTPSCR 1KV 16A TO220AB-R |
1,001 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 kV | 1.5 V | 30 mA | 1.6 V | 10 A | 16 A | 40 mA | 20 µA | 188A, 225A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-R |
.jpg "S4025RTP")
|
S4025RTPSCR 400V 25A TO220 |
483 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 400 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 50 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
|
S8020LTPSCR 800V 20A TO220AB-L |
1,303 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 800 V | 1.5 V | 30 mA | 1.6 V | 12.8 A | 20 A | 40 mA | 20 µA | 255A, 300A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB-L |
SCRs FAQ
Common questions about filtering, comparing and sourcing SCRs components.
How can I narrow the SCRs selection?
Use the available manufacturer and technical parameter filters to reduce the product list. Compare the remaining part numbers against your electrical, package and application requirements.
Should I confirm the datasheet before selecting a part?
Yes. Always review the manufacturer datasheet to confirm ratings, package, operating conditions and other technical details before finalizing a component for your design.
Can Winsun (HK) Electronics help source a specific SCRs part number?
Yes. Send the exact manufacturer part number and required quantity for availability, lead-time and quotation support.
Do you support BOM, shortage or alternative-part requirements?
Yes. You can submit a BOM or shortage list for sourcing assistance. Where appropriate, our team can also help review possible alternative-part options.
