SCRs
Browse available SCRs part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SJ6025R2ATPHT SCR 600V 25A TO220R AECQ |
9,702 | - |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 16 A | 25 A | 35 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SJ6025RATPSCR 600V 25A TO220R |
6,193 | - |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 16 A | 25 A | 75 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SJ6025R1ATPHT SCR 600V 25A TO220R AECQ |
7,863 | - |
|
Datasheet | SJ | TO-220-3 | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 16 A | 25 A | 15 mA | 10 µA | 300A, 350A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
SJ4020N2ATPHT SCR 400V 20A TO263 AECQ |
2,736 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 12.8 A | 20 A | 35 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|

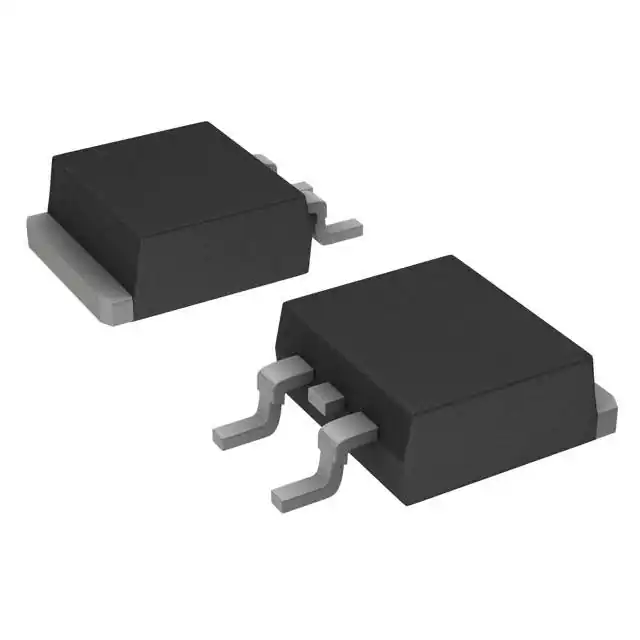

SV6025N1RPSCR 25A 600V HI TEMP TO263 |
4,089 | - |
|
Datasheet | SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 16 A | 25 A | 22 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SJ4020NATPHT SCR 400V 20A TO263 AECQ |
2,241 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 12.8 A | 20 A | 75 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
CMA30E1600PZ-TUBSCR 1.6KV 47A TO263 |
4,936 | - |
|
Datasheet | CMA30E1600PZ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.6 kV | 1.3 V | 28 mA | 1.42 V | 30 A | 47 A | 60 mA | - | 260A, 280A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263HV |
|
16TTS12FPSCR 1.2KV 16A TO220AB FP |
7,959 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB Full-Pak |
|
|
VS-16TTS12FPPBFSCR 1.2KV 16A TO220AB FP |
6,985 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 100 mA | 500 µA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB Full-Pak |
|
TN2015H-6FPSCR 600V 20A TO220FPAB |
3 | - |
|
Datasheet | - | TO-220-3 Full Pack | Tube | Obsolete | 600 V | 1.3 V | 15 mA | 1.6 V | 12.7 A | 20 A | 50 mA | 5 µA | 180A, 197A | Standard Recovery | -40°C ~ 150°C | - | - | Through Hole | TO-220FPAB |
|
|
SJ4020N2ARPHT SCR 400V 20A TO263 AECQ |
9,051 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 12.8 A | 20 A | 35 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SJ4020NARPHT SCR 400V 20A TO263 AECQ |
6,301 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 12.8 A | 20 A | 75 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SV6025N2QTPSCR 25A 600V HI TEMP TO263 |
2,351 | - |
|
Datasheet | SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 16 A | 25 A | 35 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SV6025N1QTPSCR 25A 600V HI TEMP TO263 |
6,852 | - |
|
Datasheet | SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 16 A | 25 A | 22 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SJ6020N1TPHIGH TJ 600V 20A SCR TO263 |
9,208 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 12.8 A | 20 A | 15 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SJ6020NTPHIGH TJ 600V 20A SCR TO263 |
7,484 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 35 mA | 1.6 V | 12.8 A | 20 A | 75 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SJ6020N2TPSCR 600V 20A TO263 |
7,796 | - |
|
Datasheet | SJ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 12.8 A | 20 A | 35 mA | 10 µA | 225A, 300A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
VS-40TPS16L-M3SCR 1.6KV 55A TO247AD |
6,531 | - |
|
Datasheet | - | TO-247-3 | Tube | Active | 1.6 kV | 2.5 V | 150 mA | 1.92 V | 35 A | 55 A | 300 mA | 500 µA | 500A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
SV6025N1QRPSCR 25A 600V HI TEMP TO263 |
7,264 | - |
|
Datasheet | SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 16 A | 25 A | 22 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
SV6025N2QRPSCR 25A 600V HI TEMP TO263 |
6,731 | - |
|
Datasheet | SV | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 600 V | 1.5 V | 10 mA | 1.6 V | 16 A | 25 A | 35 mA | 10 µA | 300A, 350A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
SCRs FAQ
Common questions about selecting, comparing and sourcing SCRs components through Winsun (HK) Electronics.
What should I check when selecting SCRs components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific SCRs part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find SCRs parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for SCRs components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
