Surge Protection Devices (SPDs)
Browse available Surge Protection Devices (SPDs) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFYR-100.5-TBVSPD 600VAC MCOV 1 POLE |
2,278 | - |
|
Datasheet | - | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|
ASISP320-3PSPD TYP1/TYP2 320VAC MCOV 1 POLE |
2,550 | - |
|
Datasheet | SP | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 320VAC | 20 kA | 50 kA | 200 kA | - | - | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected, Visual Life Indicator | DIN Rail | CE, cURus |
|
|
ASISPV600-V-CD-SSPD 700VAC MCOV 1 POLE |
2,675 | - |
|
Datasheet | - | Retail Package | Active | - | Base + Module | 1 | 700VAC | 20 kA | 50 kA | - | - | - | -40°C ~ 80°C | - | DIN Rail | - |
|
|
2774950000SPD TYP 1/TYP 2 275V MCOV 2 POLE |
3,851 | - |
|
Datasheet | - | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 275V | 25 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | - | DIN Rail | CE |
|
|
2736440000SPD TYP2/TYP3 300VAC/305VDC MCOV |
1,474 | - |
|
Datasheet | - | Bulk | Active | Type 2, Type 3 | Base + Module | 4 | 300VAC, 305VDC | 40 kA | 65 kA | 150 kA | 1.8 kV | 1.3 kV | -40°C ~ 85°C | - | DIN Rail | CE, cULus, VDE |
|
|
TFYR-220.5-TBVRSPD 600VAC MCOV 1 POLE |
2,421 | - |
|
Datasheet | - | Box | Active | - | Module Only | 1 | 600VAC | - | - | - | - | - | -40°C ~ 85°C | - | DIN Rail | cURus, UL |
|
|
ASISP420-3PN600V Surge Protector, DIN Rail M |
3,667 | - |
|
Datasheet | - | Retail Package | Active | - | Base + Module | 4 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
1351840000SPD TYP 1/TYP 2 400V MCOV 2 POLE |
1,693 | - |
|
Datasheet | - | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 400V | 25 kA | 100 kA | 25 kA | - | 1.9 kV | -40°C ~ 70°C | - | DIN Rail | CE |
|
|
1351620000SPD TYP 1/TYP 2 280V MCOV 2 POLE |
3,407 | - |
|
Datasheet | - | Retail Package | Active | Type 1, Type 2 | Base + Module | 2 | 280V | 25 kA | 100 kA | 25 kA | - | 1.6 kV | -40°C ~ 70°C | - | DIN Rail | CE |
|
LSP10480SSPD TYPE 2 510VAC MCOV 1 POLE |
7,174 | - |
|
Datasheet | LSP | Tray | Active | Type 2 | Module Only | 1 | 510VAC | 10 kA | 20 kA | - | - | 2.1 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
|
2906829SPD 10VAC/15VDC MCOV 1 POLE |
2,818 | - |
|
Datasheet | TTC | Bulk | Active | - | Module Only | 1 | 10VAC, 15VDC | - | - | - | - | 25 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, UL |
|

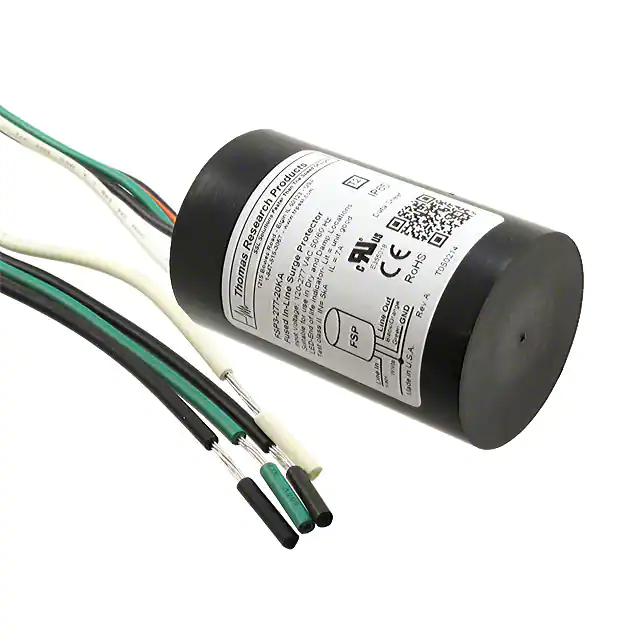

FSP3-277-20KASPD 320VAC/420VDC MCOV 3 POLE |
4,313 | - |
|
Datasheet | FSP3 | Box | Active | - | - | 3 | 320VAC, 420VDC | 20 kA | 20 kA | - | - | - | -40°C ~ 85°C | - | Free Hanging | cURus, UL |
|
2906799SPD 21VAC/30VDC MCOV 1 POLE |
6,571 | - |
|
Datasheet | TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 5 kA | 10 kA | - | - | 130 V | -40°C ~ 85°C | - | DIN Rail | cCSAus, CSA, CSAus, cUL, cULus, UL |
|
2908438SPD 21VAC/30VDC MCOV 1 POLE |
6,400 | - |
|
Datasheet | TTC | Bulk | Active | - | Base + Module | 1 | 21VAC, 30VDC | 500 A | 5 kA | - | - | 50 V | -40°C ~ 85°C | - | DIN Rail | - |
|
SPD2-300-2P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
2,289 | - |
|
Datasheet | SPD2 2P+0 | Bulk | Active | Type 1, Type 2 | Module Only | 2 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | cURus, UL, VDE |
|
SPD2-300-3P0-RSPD TYPE 1/TYPE 2 300VAC MCOV |
6,244 | - |
|
Datasheet | SPD2 3P+0 | Bulk | Active | Type 1, Type 2 | Base + Module | 3 | 300VAC | 20 kA | 50 kA | 150 kA | 900 V | 1.5 kV | -40°C ~ 80°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, cURus, UL, VDE |
|
LSP05277PSPD TYPE 2/TYPE 4 320VAC MCOV |
6,354 | - |
|
Datasheet | LSP | Tray | Active | Type 2, Type 4 | Module Only | 1 | 320VAC | 5 kA | 10 kA | - | - | 1.4 kV | -45°C ~ 85°C | Thermally Protected | Screw | CE, cURus, UL |
|
SSP3-480SPD TYPE 5 550VAC/745VDC MCOV |
3,037 | - |
|
Datasheet | SSP3 | Bulk | Active | Type 5 | Module Only | 1 | 550VAC, 745VDC | 5 kA | 20 kA | - | - | - | -35°C ~ 85°C | - | - | cURus, UL |
|

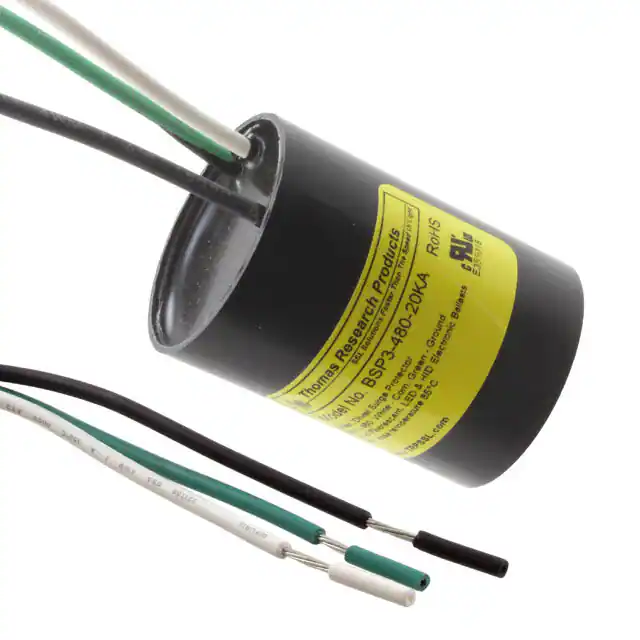

BSP3-480-20KASPD 550VAC/745VDC MCOV 3 POLE |
2,126 | - |
|
Datasheet | BSP3 | Box | Active | - | Module Only | 3 | 550VAC, 745VDC | 20 kA | 20 kA | - | - | - | - | - | Free Hanging | CE, cURus, UL |
|

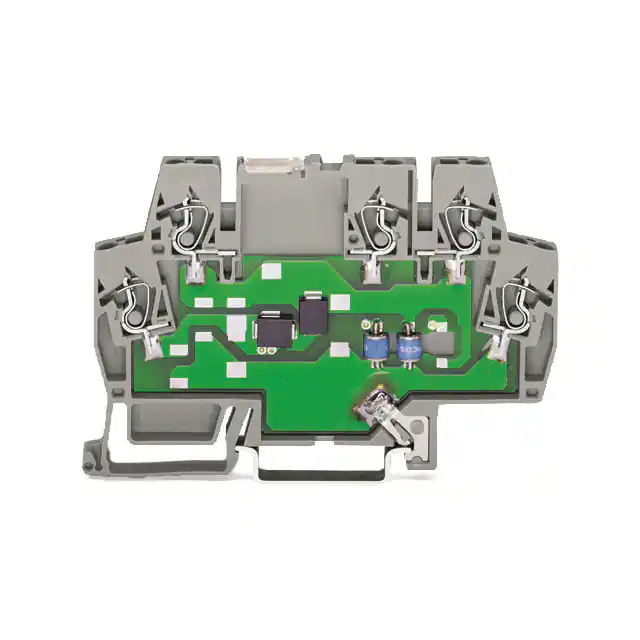

792-802SPD 23VAC/33VDC MCOV 1 POLE |
7,517 | - |
|
Datasheet | - | Box | Active | - | Module Only | 1 | 23VAC, 33VDC | 300 A | 5 kA | - | - | 50 V | -40°C ~ 80°C | - | DIN Rail | EAC |
Surge Protection Devices (SPDs) FAQ
Common questions about selecting, comparing and sourcing Surge Protection Devices (SPDs) components through Winsun (HK) Electronics.
What should I check when selecting Surge Protection Devices (SPDs) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Surge Protection Devices (SPDs) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Surge Protection Devices (SPDs) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Surge Protection Devices (SPDs) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
