Surge Protection Devices (SPDs)
Browse available Surge Protection Devices (SPDs) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2025080000SPD TYPE 1 275VAC MCOV 1 POLE |
1,739 | - |
|
Datasheet | VPU | Box | Active | Type 1 | Module Only | 1 | 275VAC | 20 kA | 40 kA | 200 kA | - | - | -40°C ~ 70°C | Visual Life Indicator | DIN Rail | - |
|
BPMA230ULSPD 230VAC MCOV 1 POLE |
5,230 | - |
|
Datasheet | BPM | Bulk | Active | - | Module Only | 1 | 230VAC | 20 kA | - | 200 kA | - | - | -40°C ~ 80°C | Remote Signaling Contacts | Chassis Mount | - |
|

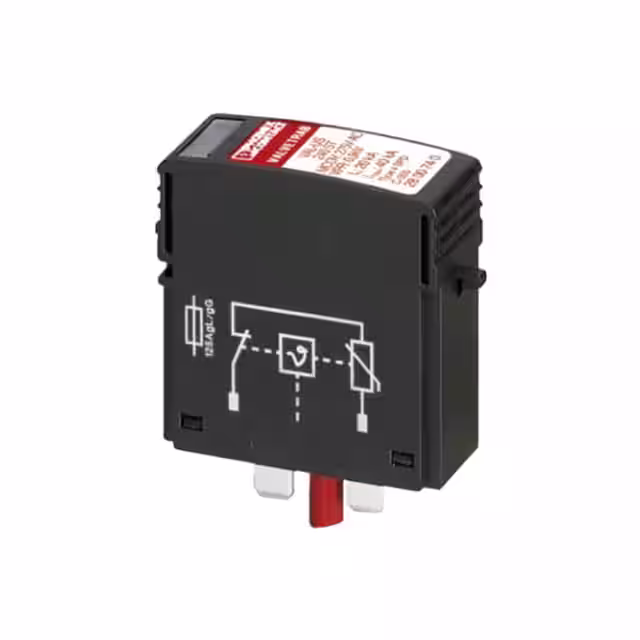

2800740SPD TYPE 2 275VAC MCOV 1 POLE |
2,393 | - |
|
Datasheet | - | Bulk | Obsolete | Type 2 | Module Only | 1 | 275VAC | 20 kA | 40 kA | 25 kA | - | 1.35 kV | -40°C ~ 80°C | - | Base Mount | CSA, cUL, cULus, EAC, UL |
|
|
1270-2S-480SPD TYPE 1/TYPE 2 600VAC MCOV |
2,275 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 600VAC | 25 kA | 65 kA | 50 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
AGDN60010RSPD TYPE 1 750VAC MCOV 1 POLE |
2,197 | - |
|
Datasheet | - | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 20 kA | - | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Visual Life Indicator | DIN Rail | UL |
|
|
1270-2S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
2,161 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 750VAC | 25 kA | 65 kA | 50 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2591300000SPD TYP 2/TYP 3 750V MCOV 1 POLE |
2,214 | - |
|
Datasheet | - | Bulk | Active | Type 2, Type 3 | Base + Module | 1 | 750V | 20 kA | 35 kA | 200 kA | 2.5 kV | 3.4 kV | -40°C ~ 85°C | - | DIN Rail | CE, cURus, VDE |
|
1202-240SSPD |
2,587 | - |
|
Datasheet | 1202 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2736420000SPD TYPE 2 750VAC MCOV 1 POLE |
4,292 | - |
|
Datasheet | - | Box | Active | Type 2 | Base + Module | 1 | 750VAC | 20 kA | 50 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
|
1430-PV-100-DSPD TYPE 1/TYPE 2 170VDC MCOV |
3,701 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-200-DSPD TYPE 1/TYPE 2 225VDC MCOV |
3,629 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 25 kA | 80 kA | 25 kA | - | 255 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-127SPD TYPE 1/TYPE 2 180VAC MCOV |
5,043 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 180VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-300-DSPD TYPE 1/TYPE 2 350VDC MCOV |
4,328 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 25 kA | 80 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-150-DSPD TYPE 1/TYPE 2 170VDC MCOV |
4,512 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 800 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-277SPD TYPE 1/TYPE 2 350VAC MCOV |
7,577 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 350VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-60-DSPD TYPE 1/TYPE 2 100VDC MCOV |
6,347 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 100VDC | 25 kA | 80 kA | 25 kA | - | 700 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1270-2NS-120SPD TYPE 1/TYPE 2 150VAC MCOV |
7,006 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 2 | 150VAC | 50 kA | 100 kA | 50 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-500-DSPD TYPE 1/TYPE 2 560VDC MCOV |
5,990 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 560VDC | 25 kA | 80 kA | 25 kA | - | 1.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-400-DSPD TYPE 1/TYPE 2 460VDC MCOV |
6,933 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 25 kA | 80 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
2907878SPD TYPE 2 150VDC MCOV 1 POLE |
2,180 | - |
|
Datasheet | VAL | Bulk | Active | Type 2 | Module Only | 1 | 150VDC | 20 kA | 40 kA | 6 kA | 700 V | 850 V | -40°C ~ 80°C | - | Base Mount | cUL, EAC, UL |
Surge Protection Devices (SPDs) FAQ
Common questions about selecting, comparing and sourcing Surge Protection Devices (SPDs) components through Winsun (HK) Electronics.
What should I check when selecting Surge Protection Devices (SPDs) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Surge Protection Devices (SPDs) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Surge Protection Devices (SPDs) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Surge Protection Devices (SPDs) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
