Surge Protection Devices (SPDs)
Browse available Surge Protection Devices (SPDs) part numbers with manufacturer references, stock information, pricing, datasheets and key specifications. Use the table below to compare options for your project.
For BOM, shortage or hard-to-find requirements, send your part number and quantity to Winsun (HK) Electronics for availability, lead-time and quotation support.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

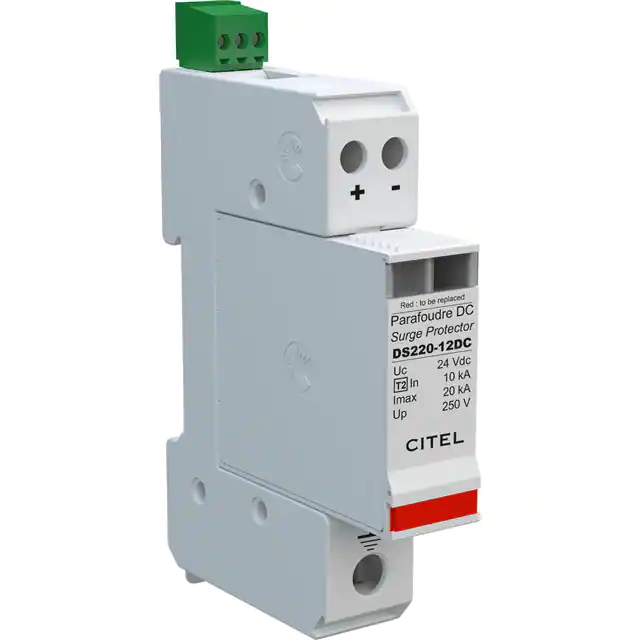

DS220S-12DCSPD TYPE 2 24VDC MCOV 1 POLE |
8,660 | - |
|
Datasheet | - | Active | Type 2 | Base + Module | 1 | 24VDC | 10 kA | 20 kA | - | - | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, UL | |
|
1250-2S-400SPD TYPE 2/TYPE 4 420VAC MCOV |
6,471 | - |
|
Datasheet | 1250 | Bulk | Active | Type 2, Type 4 | Base + Module | 2 | 420VAC | 20 kA | 50 kA | 100 kA | 1.2 kV | 1.8 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UR |
|
1270-3S-690SPD TYPE 1/TYPE 2 750VAC MCOV |
4,375 | - |
|
Datasheet | 1270 | Box | Active | Type 1, Type 2 | Base + Module | 3 | 750VAC | 25 kA | 65 kA | 50 kA | - | 2.8 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
16010.2SPD TYPE 3 250VAC MCOV 1 POLE |
8,462 | - |
|
Datasheet | - | Box | Active | Type 3 | Base + Module | 1 | 250VAC | 10 kA | 30 kA | - | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2736470000SPD TYPE 2 300VAC MCOV 1 POLE |
3,185 | - |
|
Datasheet | - | Box | Active | Type 2 | Base + Module | 1 | 300VAC | 20 kA | 50 kA | 200 kA | 900 V | - | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | CE, cULus, VDE |
|
1530-1DSPD 1 POLE |
4,541 | - |
|
Datasheet | 1530-1 | Bulk | Active | - | Module Only | 1 | - | - | - | - | - | - | - | - | DIN Rail | - |
|
|
2800782SPD 180VDC MCOV 1 POLE |
3,148 | - |
|
Datasheet | PT | Bulk | Active | - | Module Only | 1 | 180VDC | - | - | - | - | - | -40°C ~ 85°C | - | Base Mount | - |
|
|
1250A-2S-480SPD TYP 2/TYP 4 550V MCOV 2 POLE |
8,117 | - |
|
Datasheet | 1250A | Box | Active | Type 2, Type 4 | Base + Module | 2 | 550V | 20 kA | 50 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-480SPD 600VAC MCOV 2 POLE |
5,145 | - |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 2 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-2S-690SPD 750VAC MCOV 2 POLE |
7,372 | - |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 2 | 750VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
BSPM1A150D200LVRSPD TYPE 4 120VAC/200VDC MCOV |
3,425 | - |
|
Datasheet | BSPM | Bulk | Active | Type 4 | Module Only | 1 | 120VAC, 200VDC | 15 kA | 40 kA | - | - | - | - | - | DIN Rail | CE, CSA, cURus, KEMA |
|
1210-1S-600SPD TYPE 2/TYPE 4 840VAC MCOV |
9,011 | - |
|
Datasheet | 1210 | Bulk | Active | Type 2, Type 4 | Module Only | 1 | 840VAC | 20 kA | 100 kA | 100 kA | 3 kV | 4 kV | -50°C ~ 85°C | Remote Signaling Contacts, Thermally Protected | DIN Rail | CE, CSA, UL |
|
|
1430-PV-300-YSPD TYPE 1/TYPE 2 350VDC MCOV |
8,782 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 350VDC | 25 kA | 80 kA | 25 kA | - | 1.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-400-YSPD TYPE 1/TYPE 2 460VDC MCOV |
6,875 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 460VDC | 25 kA | 80 kA | 25 kA | - | 2 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-200-YSPD TYPE 1/TYPE 2 225VDC MCOV |
6,032 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 225VDC | 25 kA | 80 kA | 25 kA | - | 255 V | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-600-YSPD TYPE 1/TYPE 2 700VDC MCOV |
7,534 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 700VDC | 25 kA | 80 kA | 25 kA | - | 2.5 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
1430-PV-100-YSPD TYPE 1/TYPE 2 170VDC MCOV |
9,576 | - |
|
Datasheet | 1430 | Box | Active | Type 1, Type 2 | Base + Module | 1 | 170VDC | 25 kA | 80 kA | 25 kA | - | 1 kV | -40°C ~ 85°C | Remote Signaling Contacts | DIN Rail | - |
|
|
2801162SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
7,277 | - |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, CSA, cUR, cURus, EAC, UL |
|
|
2801231SPD TYPE 1/TYPE 2 1.05KVDC MCOV |
5,658 | - |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 1.05kVDC | 15 kA | 40 kA | - | - | 1.8 kV | -40°C ~ 80°C | - | Base Mount | CB, EAC |
|
|
2801165SPD TYPE 1/TYPE 2 360VDC MCOV |
4,460 | - |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Module Only | 1 | 360VDC | 15 kA | 40 kA | 50 kA | 2 kV | 1.4 kV | -40°C ~ 80°C | - | Base Mount | CB, cUR, cURus, EAC, UR |
Surge Protection Devices (SPDs) FAQ
Common questions about selecting, comparing and sourcing Surge Protection Devices (SPDs) components through Winsun (HK) Electronics.
What should I check when selecting Surge Protection Devices (SPDs) components?
Compare the manufacturer part number, electrical specifications, package, operating conditions and application requirements. The product datasheet should be used to confirm technical suitability.
Can Winsun help source specific Surge Protection Devices (SPDs) part numbers?
Yes. Send the exact part number, manufacturer and required quantity. Winsun (HK) Electronics can assist with availability checks, quotation support and sourcing options based on your requirement.
Do you support shortage, obsolete or hard-to-find Surge Protection Devices (SPDs) parts?
Yes. Our sourcing team can review shortage and obsolete-part requirements and help check available supply channels or possible alternatives when appropriate.
How do I request a quote for Surge Protection Devices (SPDs) components?
Submit an RFQ with the part number, manufacturer, quantity and target delivery requirement. Our sales team will review your request and follow up with current sourcing information.
